Blackmagic ATEM Mini Extreme mount bracket

This bracket is for mounting a Blackmagic ATEM Mini Extreme onto a Penn Elcom R1290/1U Sliding Rack Tray.  Use 10-24 bolts and square nuts.  (Washers also advised.)  The left bracket is provided - just mirror it in the slicer to get the right bracket.  It prints without supports on its outside face - you will need to rotate it in the slicer for print orientation.  This may work with other ATEM Mini models, but it was developed specifically for the ATEM Mini Extreme and hasn't been tested with any others.  The geometry of the mount points is simple enough that if you need to mount your ATEM Mini in a different way, it should be straightforward to edit the STL in modeling software.  I am also uploading the FreeCAD (version 0.20) model for any that would like to edit it in CAD.

Thank you to:
- Spudd1 [ATEM Mini & Mini Pro mounts](https://www.thingiverse.com/thing:4435878)
- richardhuss [https://www.thingiverse.com/thing:4803526](https://www.thingiverse.com/thing:4803526)
whose designs I referenced in creating this model.


Lack Enclosure Camera Mount

Camera_Outer knob threaded.stl

Finger Knob for Gopro Suction Cup.stl

This is a finger knob for an amazon brand suction cup attachment for a gopro

GoPro Clones Open Mount Camera Retainer.stl

I needed to come up with a retainer for the general purpose open camera mount provided with my camera to prevent the camera from falling out on rough roads. I've dropped a camera twice before, lost a camera the second time! The solution I came up with slides over the raised brass insert housing on the bottom of the mount, and is secured with a M6 bolt. I went with a nylon 1/4-20 x 1/2" bolt (couldn't find one shorter locally) and two thick nylon washers as spacers. (The longer than needed bolt may come in handy should I decide to add a feature to the mount later on.)

The best orientation in the slicer is for the bottom of the retainer to be placed on the bed. In Cura I suggest using Tree Support. A brim or raft is also recommended.

Resolution: 0.20 mm
Walls: 2
Infill: 15%+, Gyroid
Support: Yes, Tree support recommended
Raft: Your choice
Brim: Your choice
Filament: PETG, ASA, ABS

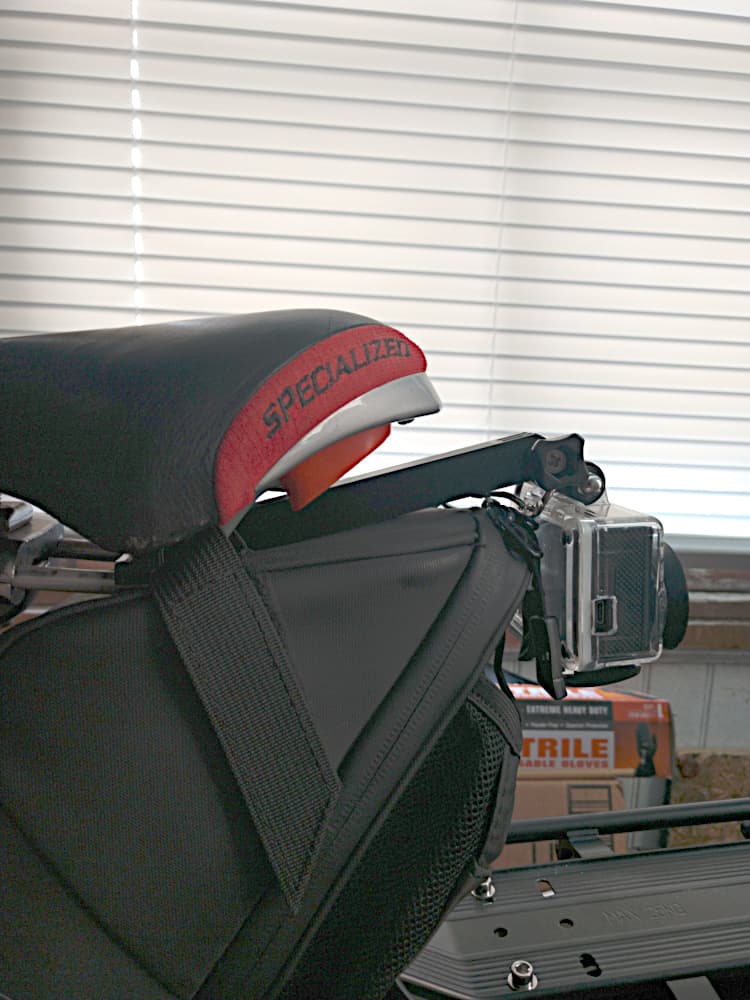

GoPro 130mm Straight Extension

I needed to mount my Akasa Action Sport Camera above and beyond my underseat bag so that the Power Bank battery could be placed in the rear pouch of the bag and a short USB cable could be run from the battery to the camera. So I designed this simple 130 mm extension that connects GestoPlastico's (https://www.thingiverse.com/thing:2598431) seat rail clamp to the camera mounting hardware. The extension rests on the bag for added support.

DJI F450 GoPro Steadicam

Beagle Camera GoPro bracket

This bracket replaces the base on the Beagle Camera by Mintion to mount it to any GoPro mount.

Ender 3 S1 Pro Wyze Camera Mount

cambrack_v1.2.stl

Protective Box for Canon EFS Lenses (10-18 mm & 18-55 mm)

BoxBody_CanonEFS Lenses.stl

Hot shoe cover.stl

gopro hero 8 (1).stl

GoPro Hero10 Case insert

An insert to fit with the stock case for the Hero10. Holds a Session, Hero10, 3 batteries, and a miscellaneous compartment.

BeagleCam Stativhalter V2.stl

Version zwei. Grundplatte für Manfrotto-Stativ. Anstelle von Beaglecam-Standfuss.

BeagleCam Stativ-Grundplatte

Grundplatte für Mintion Beagle Cam auf Manfrotto Stativ

Camera Line 2D Art.stl

Camera Line 2D Art
Camera Linha 2D Quadro

Supports:
No

Resolution:
0.2

Infill:
10%

Notes:
Easy to print

Tripod Ground Spike

This is a tripod ground spike you can use to place a camera in the ground anywhere.  You'll need 1 brass insert for each spike
https://amzn.to/3apQlAQ
and you'll also need a 1/4" adapter to your camera like https://amzn.to/394nvFL .

Simply print the part, then use a soldering iron to SLOWLY insert the brass insert.  Allow to cool for at least 30 minutes.  Don't touch it at all while cooling.

Once cool you can mount any camera, webcam or other device that uses a 1/4-20 thread.

What do I use a tripod ground spike for?
- attach a trail cam, for ground level action
- attach a gopro and capture video of your golf swing, hitting the ball, etc.
- Great for small cameras at kids baseball games, etc.
- Hold the camera in the sand on the beach

These spikes will cost you around $20 on amazon but the 3D print at 100% infill is only 39g and very strong.
