Neptune 3 Pro - Gantry Cable Mount - NO MORE DRAGGING!
Don't let your Neptune 3 cables be a DRAG!
The new Elegoo Neptune 3 Pro Elegoo includes a single P-Clamp to mount this harness and it simply is not enough to do the job adequately.
NOTE: NOT for the Plus or Max versions of the Neptune 3/4. I've discovered this limits the Z-Axis travel on those models as it hits their Z-Axis support rods. See this version for Plus & Max models: https://than.gs/m/803253

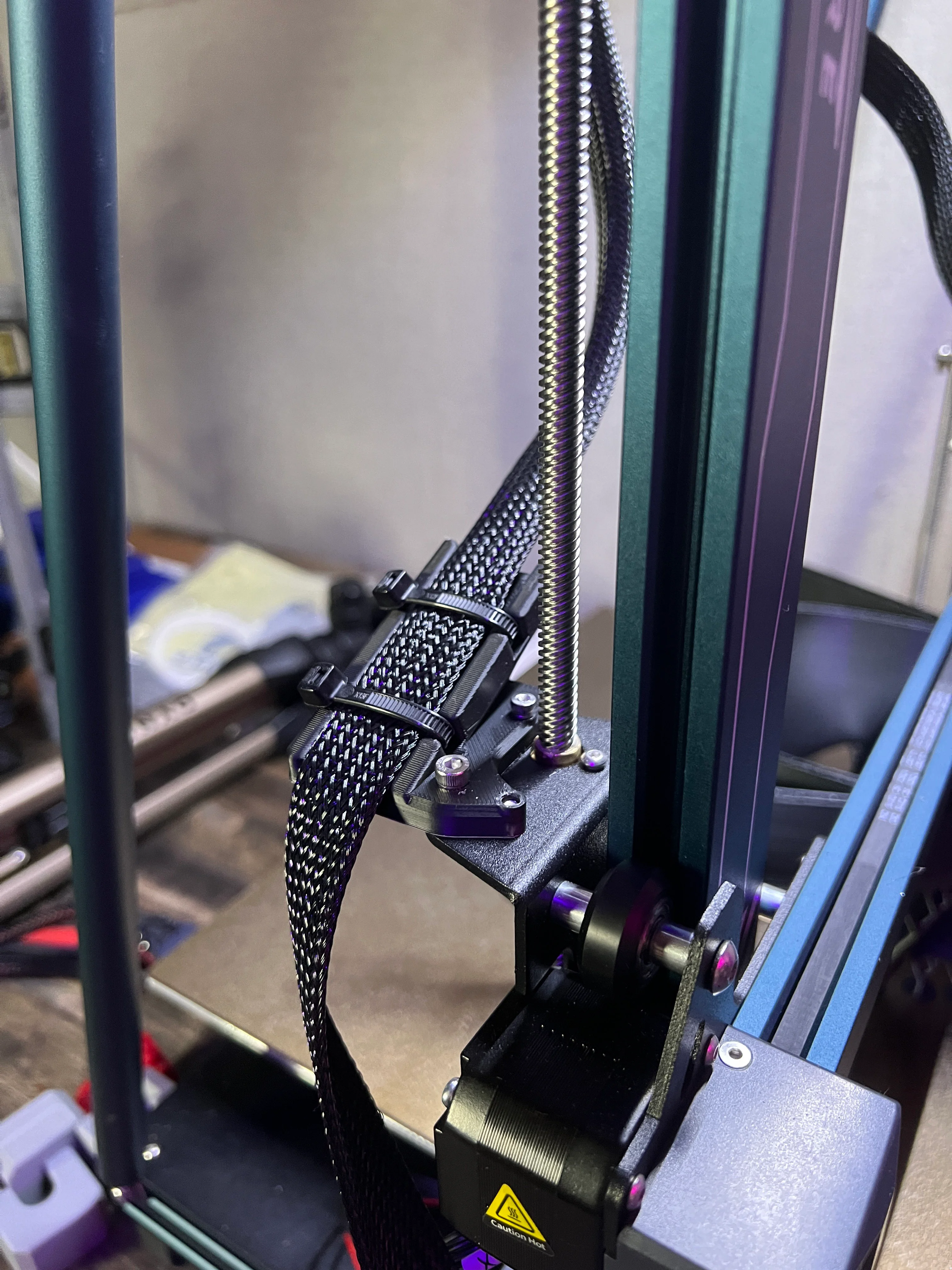

This design angles the cable upward, away from the print area. It also more securely mounts and strain relieves the harness for better long term reliability.
Requires longer screws for mounting and a pair of Zip Ties. You can reuse the original harness M4 screw for the 3rd mounting hole of this bracket.
Parts Needed (Affiliate Links):
- 1x - M4x10mm Screw: https://amzn.to/40Csxzc
- 1x - M3x20mm Screw: https://amzn.to/3DRcZxA
- 2x - Zip Ties: https://amzn.to/3jKNV4Q
- Elegoo Neptune 4 Pro: https://tinyurl.com/ElegooNeptune4
- Elegoo Neptune 3 Pro: https://tinyurl.com/Neptune3Pros
- Polymaker Filament: https://tinyurl.com/Polymakerr
Files Included:
- Neptune 3 Cable Mount - STEP File
- Neptune 3 Cable Mount - STL
Recommended Print Settings:
- 3 Perimeters
- 10% Infill
- No Supports Required
- PLA filament is fine for this application.
