Everybody Poops... Practical Printing!

Recently my dog's poop bag dispenser lost the bottom off of it. Instead of going and buying a new one, I jumped into Fusion 360 and modeled my own.

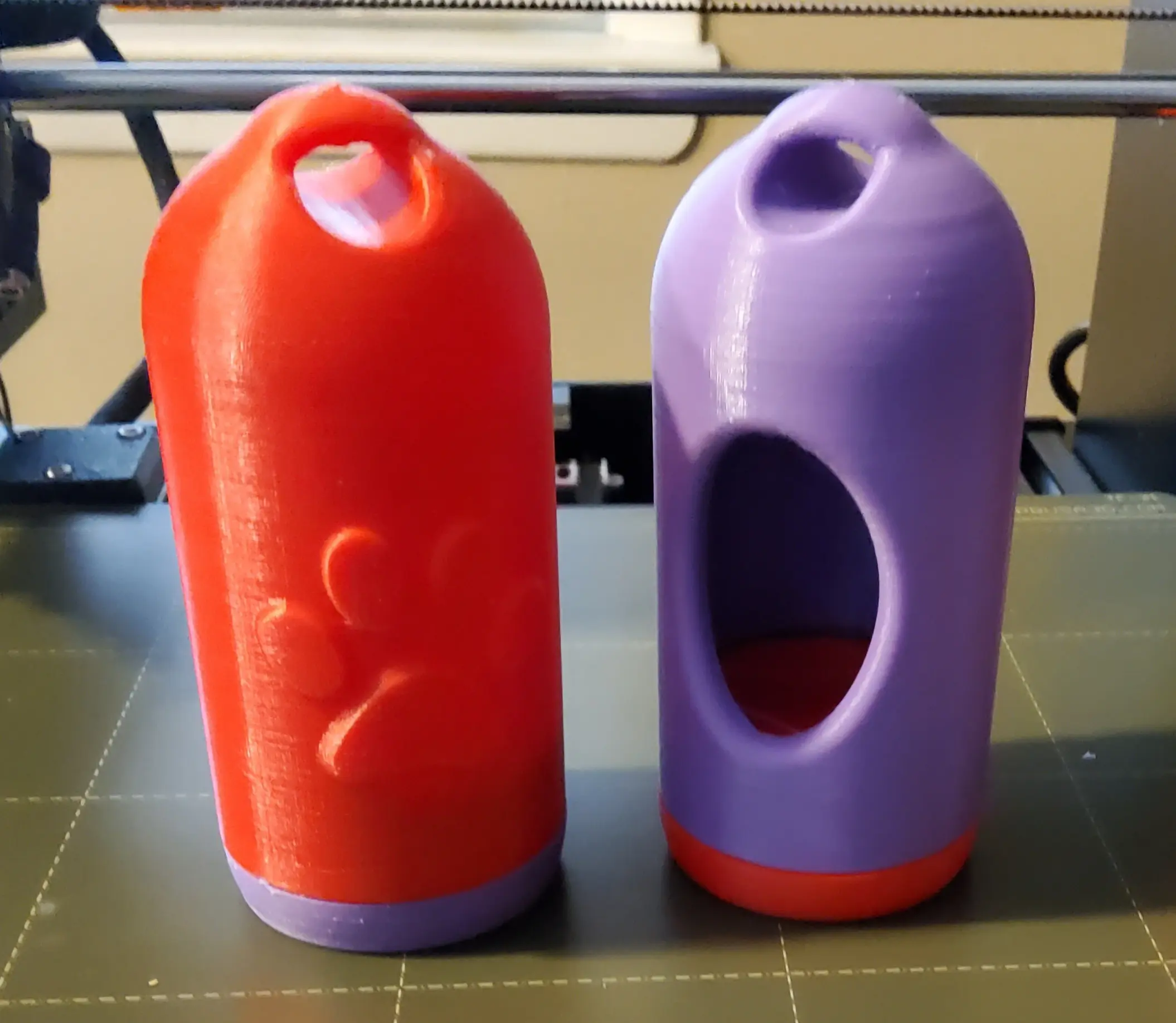

The top features a hole for a strap or possibly a small carabiner to pass through (more for a velcro strap). Side has a hole to retrieve the bags through and a paw print on the other side.

Insert the roll of bags into the bottom portion, then thread into the top body. When tight a little detent should engage to hold it together. Future revisions may increase the strength of this detent.

• Necessary Parts (Affiliate Links):
  • Compostable Poo Bags: https://amzn.to/3kT9Cgs

• INCLUDED FILES:
  • CAD STEP File to learn how I designed these.
  • Poo Bag Dispenser Upper Body
  • Poo Bag Dispenser Lower Cap

• PRINT PARAMETERS:
  • No Supports Required
  • 3 Perimeters Recommended (Thread holes)
  • 10%+ Infill (I used Rectilinear)

Mine were printed in Inland "Neon Green" PLA

Want to Support what I do? Check out my social medias please!

Link Tree: http://www.HotRodHippie.com/links

All of my Designs are covered by a Creative Commons Non-Commercial LIcense. Sale of prints using my designs are the sole right of myself, the designer, and those I license to do so. Please understand every design is hours of work and multiple prototype prints to ensure quality. Unauthorized sales will result in new designs not being made public.

PLEASE Credit any and all Remixes of my designs: MandicReally
