Cozy Vase (Small)

This model is restricted by licensing terms.

This print combines standard and 'Fuzzy Skin' printing for a unique and satisfying multi-textured appearance. Follow the printing guidelines below for a successful result!

This version of the vase is 120mm tall. You can find a larger version here.


Printing Guidelines

  • 3MF files for Bambu Studio and Prusa Slicer are included with the multi-texture settings already applied, but I still suggest you review the settings and slicer preview to make sure everything looks right for your setup

  • Combine 'Main' and 'Fuzzy' parts to print together. 'Main' prints with standard settings (0.16mm layer height, 2-3 perimeters, 5 top layers, 0.4mm outer wall width). For the 'Fuzzy' part, set perimeters to 1, infill to 0%, and enable Fuzzy Skin on 'All walls' with point distance of '0.3mm' and thickness of '0.6mm'.

Importing STLs as multipart models

  • For Bambu Studio/Orca Slicer, drag both files into the slicer together and select 'Yes' to the prompt 'Load these files as a single object with multiple parts?' Now you can individually modify parameters under the 'Objects' setting tab.

  • For Prusa Slicer, ensure that you are in 'Expert Mode'. First, import the 'Main' body, then right click on the name in the lefthand parts list, and click 'Add Part>Load' to add the 'Fuzzy' body. Now you can right click that part in the same list and go to 'Add Settings' to add 'Layers and Perimeters > Perimeters' + 'Infill > Fill density' + 'Fuzzy Skin > Fuzzy Skin + Fuzzy skin point distance + Fuzzy skin thickness'. That will add the ability to adjust those settings individually.

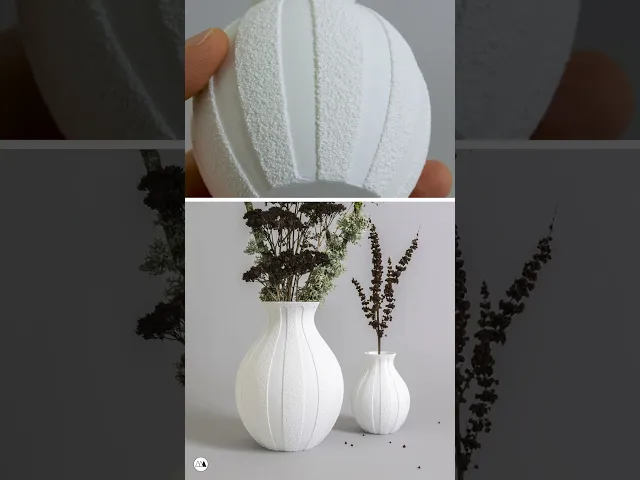

I also made a video about the process


Photographed model was printed using Fillamentum Extrafill PLA Traffic White also available at 3DJake and MatterHackers. Printer was the QIDI Q1-Pro 3D Printer*

These affiliate links give me a commission on sales at no additional cost to you. Thanks for supporting Make Anything!.


Discussions
M
mindfest

Hi Devon,

could you give an advice regarding to a point 6 nozzle. I can get the values right to create a continous fuzzy skin. If i am using .4 outer walls, still, the middle "belly" of the vase has a smooth surface. Where it is the widest. Thanks in advance.

Devin B
Make Anything

This was designed for a 0.4mm nozzle.. maybe you could decrease all the extrusion widths and pull it off with your 0.6 nozzle, but I'm not sure how well that would work.
