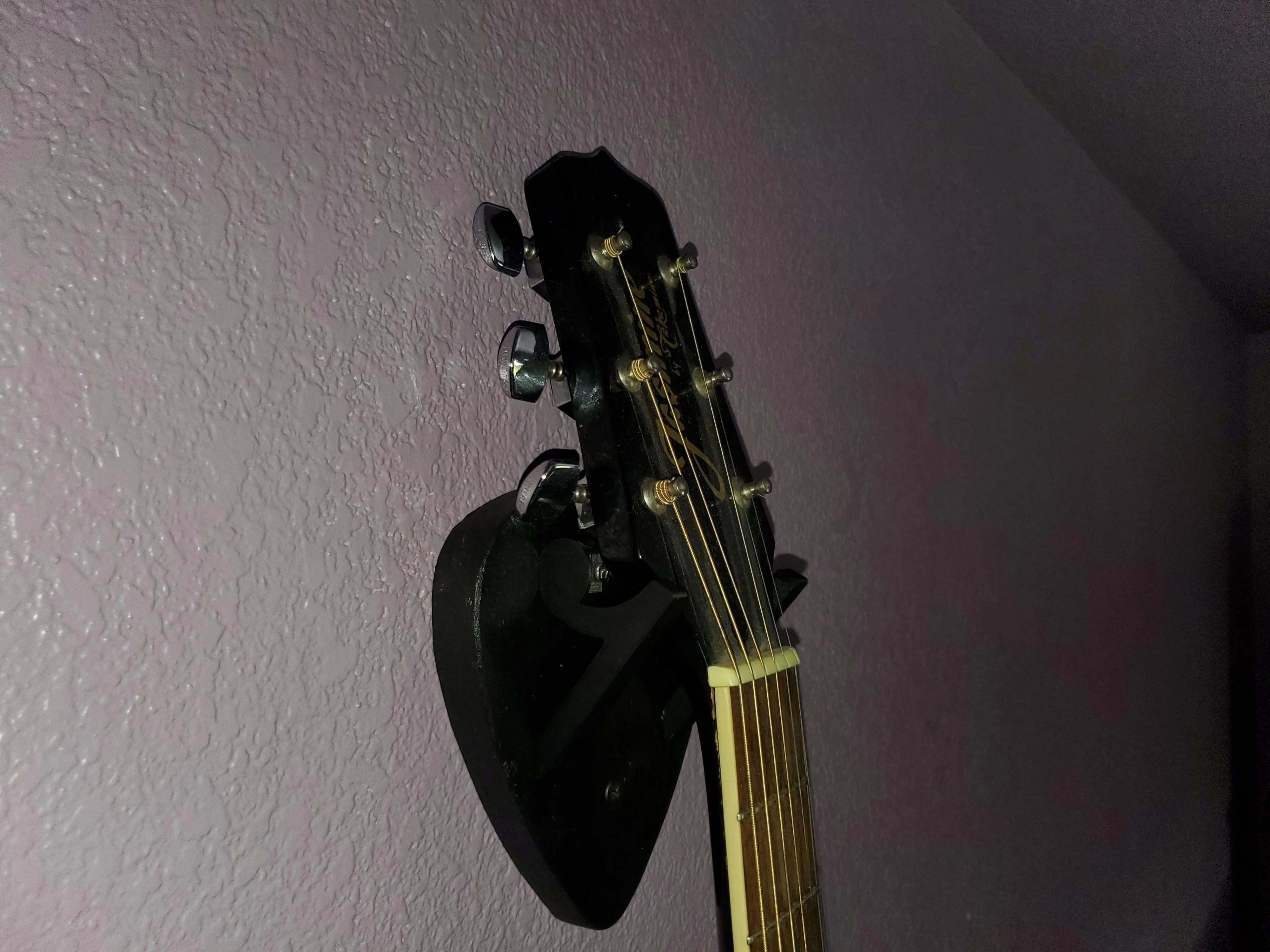

This is a guitar hanger I designed, and it has a built in pun. The hooks are shaped like the sheet music symbol for "rest". It seems plenty strong for an acoustic guitar, but I haven't tried it with an electric.

The body is shaped like a guitar pick and made out of wood. I wasn't able to show it, but on the back of the body I used a forestner bit to drill in around the mounting holes for the hooks, and inserted tee-nuts into each hole. Then I inserte #6x1.5(I goofed and one bolt is shorter) bolts through the hook and threaded it into the tee-nut.

The pdf for the body template is here https://drive.google.com/drive/folders/1U4DNuIShJtv6qhEmdEdg1zQY6gBOlONm?usp=sharing

Printed on Flashforge Dreamer NX .2mm layer height
