Drill Powered Outboard

by

haroldemc88

Follow
Follow
Like
Drill Powered Outboard by haroldemc88 full viewable 3d model
Loading preview...
1 Likes0 DownloadsMarch 19, 2022


Community Uploads

No photos added yet, be the first to upload a photo!


1 Likes0 DownloadsMarch 19, 2022

Community Uploads

No photos added yet, be the first to upload a photo!

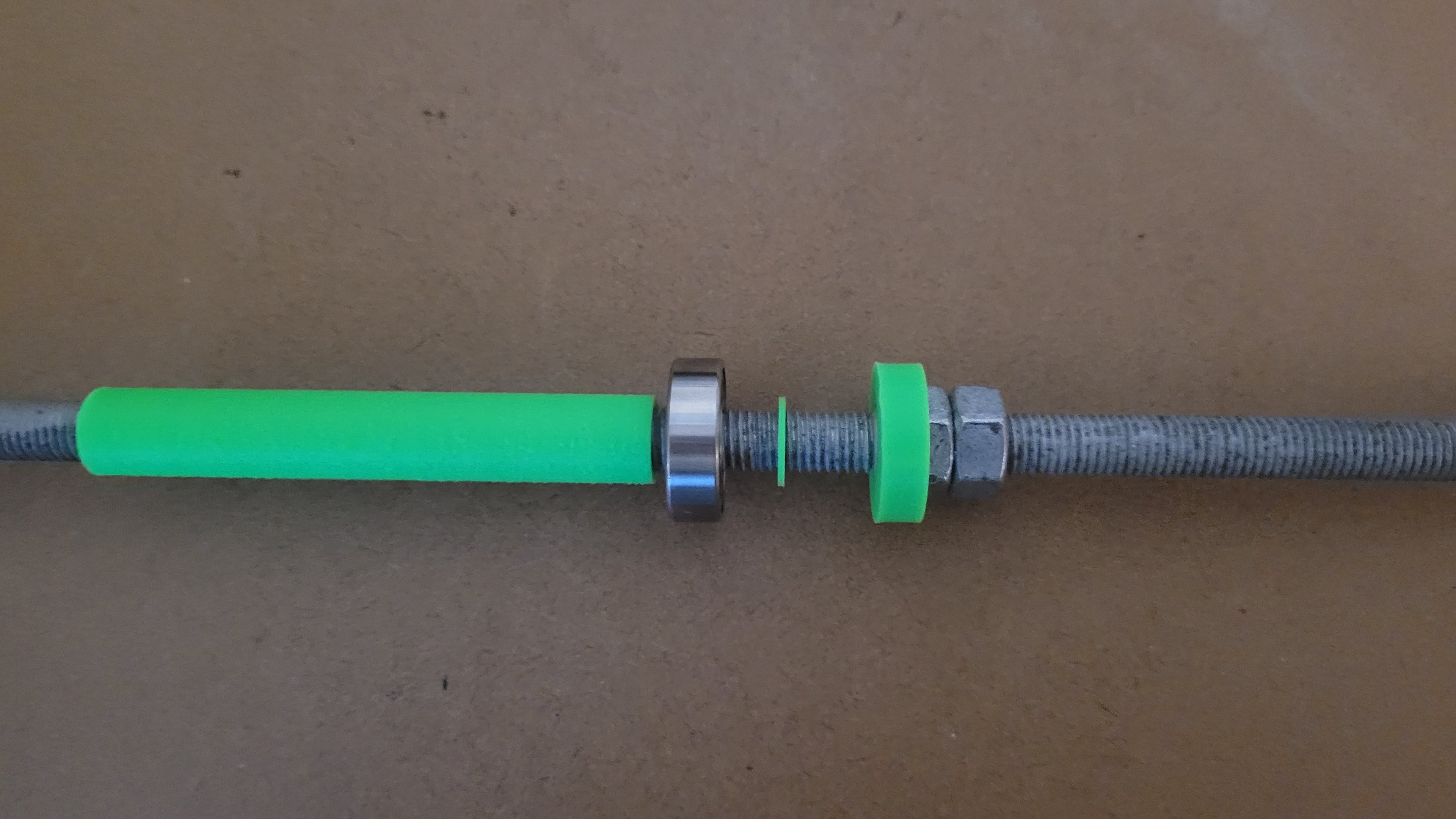

Drill Powered Outboard (Work in Progress) https://youtu.be/Ix5F3YQOyLg Assembly requirements: Print - 1x Propeller of your choice - 1x Handle - 1x Bearing Support - 2x Bearing Spacer - 2x Bearing Cap Buy: - 1x M10 Threaded Rod (I use 1000mm) - 7x M10 Nuts - 2x 26x10x8 Bearings Printed out of ASA using a Flashforge Creator 3 V2 with the following settings: - Layer height: 0.2mm - Infill: 25% Gyroid/3D - 5 Outer Layers - 5 Top/Bottom Layers - 100mm/s - No supports (depending on your printer, you may prefer to support the propeller blades) - No bed adhesion - Propeller requires pause at 29 or 19mm (aggressive or mild, layer 145 or 94 at 0.2mm) in order to insert the nut. - I print the propeller in one, and the handle assembly in another. But it's up to you! The handle assembly acts as a frame to hold the bearings, bearing caps and spacers. The propeller has an embedded nut. Everything is tightened, and then locknuts placed across the primary nuts. The bearings can be tight, so you may need to scrape a little off of the edge of the hole. You can use the nuts and bearing caps to press them in. I am going to include a handle option that can support itself on the back of a boat, to save wrists.
