Ё Bot BMG Aero mount
Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4804955.

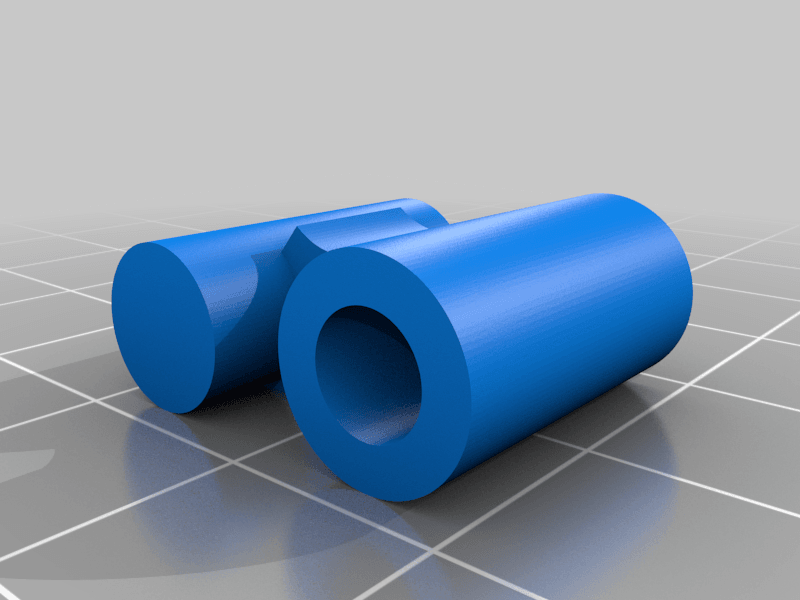

Parts needed to mount BMG aero ( https://ali.onl/1O9s ) to ЁBot carriage with 2020 X extrusion and upside down X rail mount. There are two versions of Bottom part - one with an option of attaching stock fan mount and another without such an option. Both of them has holes for melt in M3 nuts to attach BLTouch or similar. Standart sized BLTouch needs to be cut in order to fit in though. To attach fans sidemounts you will need 4 DIN912 M3x10 screws and 4 M3 nuts You can mount fans using 16mm long screws (M2.5 if I'm not mistaken) and standart nuts. I used 1 for each fan, you can use two or none. There is a spacer for a PTFE tube to go directly to the extruder. Enjoy UPDATE 03.05.21 Made fan nozzles more direct. Still no supports
