Anycubic Kobra Max Extrusion Channel Covers

by
belobig
Follow
Follow
Remix Model
belobig
belobig
Image 1 of 6
Anycubic Kobra Max Extrusion Channel Covers 3d model
2D
3D
Makes
Anycubic Kobra Max Extrusion Channel Covers 3d model
Anycubic Kobra Max Extrusion Channel Covers 3d model
Anycubic Kobra Max Extrusion Channel Covers 3d model
Anycubic Kobra Max Extrusion Channel Covers 3d model
Anycubic Kobra Max Extrusion Channel Covers 3d model
Anycubic Kobra Max Extrusion Channel Covers 3d model
38 Likes206 DownloadsApril 19, 2022


This is a full set of extrusion channel covers for the Anycubic Kobra Max (for all upward facing channels). If you decide you want some for side-facing channels, you can always modify a piece by dropping it into Fusion 360 and extruding the end faces to get to the desired length. That's what I did starting with the base 10mm segment from Vesh on Thingiverse: https://www.thingiverse.com/thing:4321670

This set includes one for the channel where the filament holder attaches, with a cutout to accommodate it (see image).

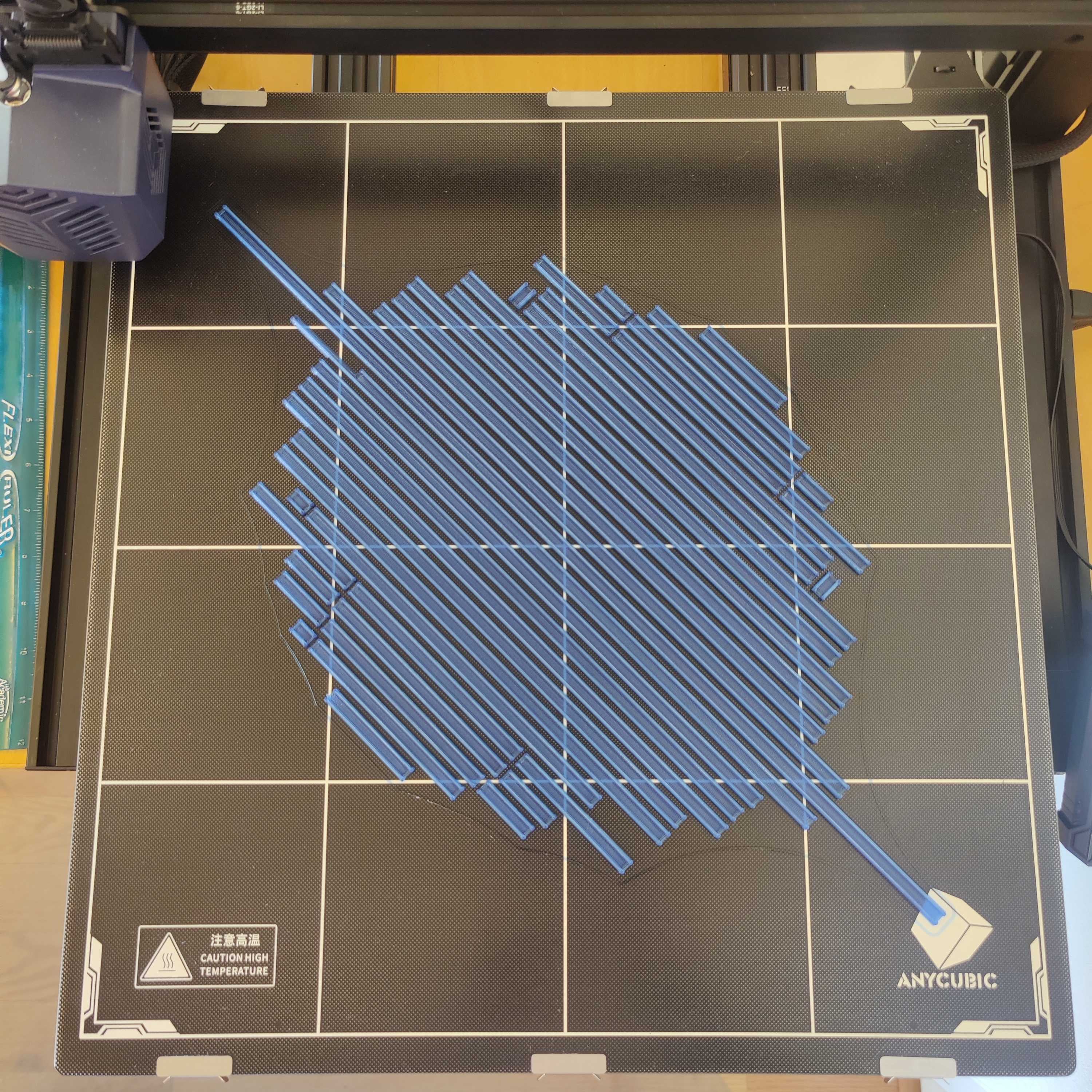

All pieces will fit on the bed if you lay them out diagonally, as shown in the image.

Here is a full list of part lengths, how many you need to print of each, and where they go:

  • 439mm x1
  • 315mm x1
  • 315mm w/ 39.5mm x 4.8mm cutout x1, for filament holder
  • 292mm x1
  • 270mm x2
  • 266mm x4
  • 236mm x3
  • 175mm x3
  • 101mm x4
  • 94mm x4
  • 89mm x1
  • 63mm x1
  • 61mm x1
  • 48mm x3
  • 28mm x4
  • 18mm x2
  • 11.5mm x2
  • 10.5mm x4

Total: 42 pieces

  • 439mm x1 - Very top rail
  • 315mm x1 - Left-front rail, inner channel
  • 315mm w/ 39.5mm x 4.8mm cutout x1, for filament holder - Left-front rail, outer channel
  • 292mm x1 - Right Y rail, right channel, from front to mid screw (no front screw in this channel)
  • 270mm x2 - Right-front rail, inner and outer channels
  • 266mm x4 - Left and right Y rails, from the mid screw to the rear screw, both channels
  • 236mm x3 - Left and right Y rails, from the front screw to the mid screw, for all channels except the far right one (see 292mm above)
  • 175mm x3 - Front-mid, and mid-mid rails (that go under the Y rails)
  • 101mm x4 - Left and right rear rails, after cable holder clips
  • 94mm x4 - 2 on Mid rail, left side; 1 on Front rail, left side; 1 on Rear rail, left side
  • 89mm x1 - Rear rail, right side
  • 63mm x1 - Rear rail, mid-left side (between left Y rail and Y motor)
  • 61mm x1 - Rear rail, mid-right side (between Y motor and right Y rail)
  • 48mm x3 - Y rails, left and right, from front to front screw (except for right channel on right Y rail)
  • 28mm x4 - Left and right rear rails, before cable holder clips
  • 18mm x2 - Mid rail, right side, from right Y rail to black tape
  • 11.5mm x2 - Top rail, between screws on left and right sides
  • 10.5mm x4 - Y rails, between mid screws on left and right sides

Also included is a file containing 1 of each piece.
