Cyclone Vacuum Dust Separator.

by
Thomllama
Follow
Follow
Remix Model
Thomllama
Thomllama
Image 1 of 3
Cyclone Vacuum Dust Separator.  3d model
2D
3D
Makes

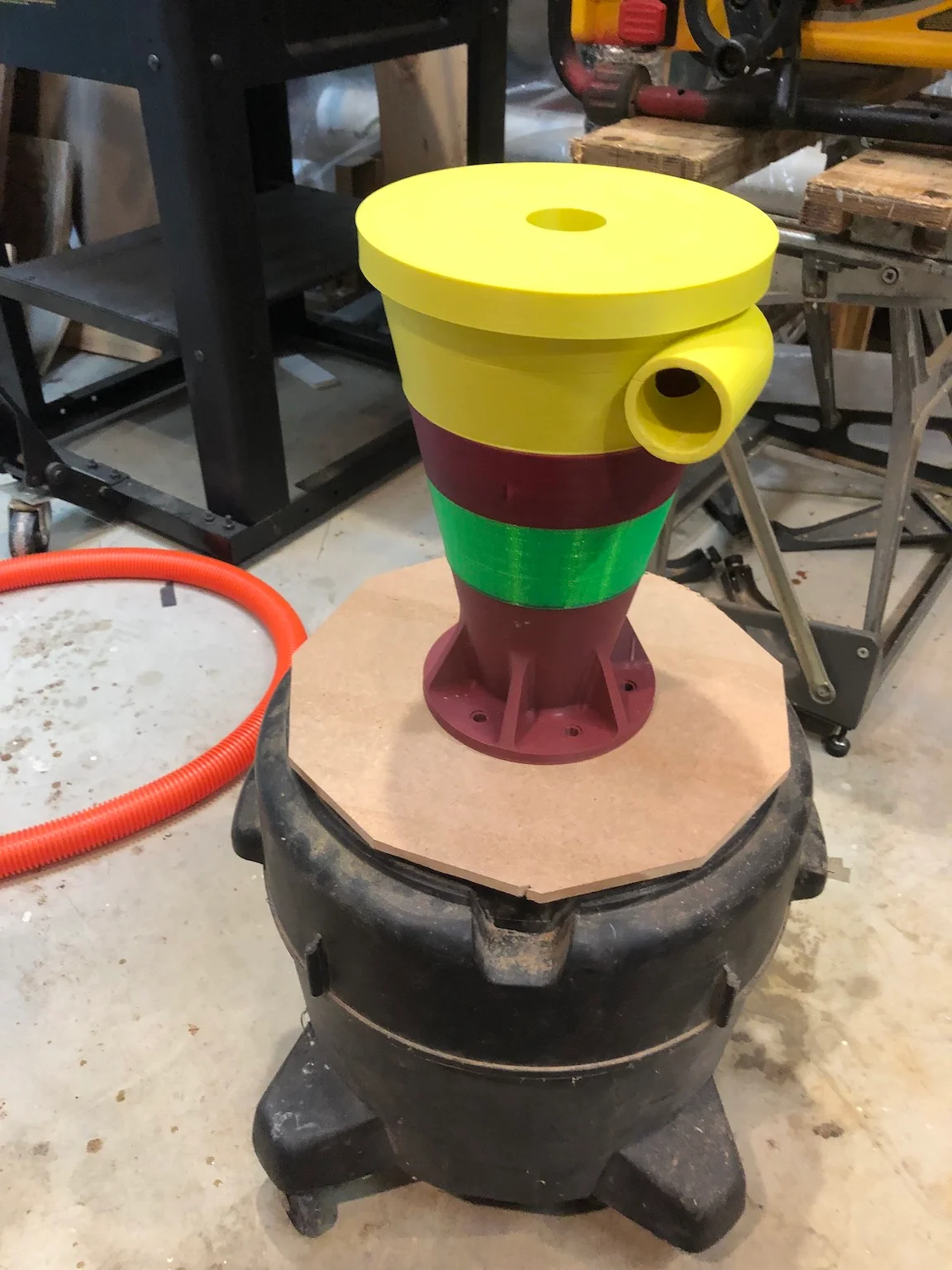

Cyclone Vacuum Dust Separator.  3d model

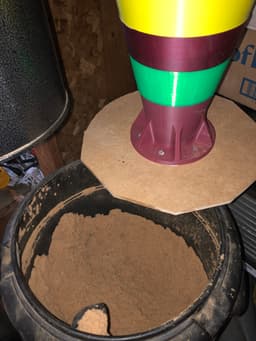

Cyclone Vacuum Dust Separator.  - it works, and well! - 3d model
Cyclone Vacuum Dust Separator.  3d model
3 Likes46 DownloadsAugust 25, 2021


Custom Designed Cyclone Dust Separator for my CNC machine! I designed and printed this as I wanted to try the whole Cyclone hype, but not willing to spend the money of a glorified Oil Funnel with some holes cut in it! (ok, it's more than that but the pricing does seem kinda steep for what they are) The Hype IS JUSTIFIED though! they work great!

  • Canister split in 2 to avoid tall supports as well as fit on most any printer but the "mini" ones. Tabs were added to upper and lower to help align

  • Use a LOT of side walls and top/bottom layers, but it doesn't need to be solid, just structurally sound!

  • material shouldn't matter, (mine's from PLA rolls of left overs and samples)

*screw on lid to access inside if needed at some point in the future for what ever reason.
