Introducing the IR Turret Robot, inspired by Mark Rober's Hack Pack robotics kits! This innovative project is entirely 3D printed, requiring just a handful of electronic components to bring it to life. It's a fantastic way to dive into DIY robotics with a fun and accessible build.
Want to see how it's done? Watch my detailed video guide, "How to Build the Hack Pack IR Turret from Scratch", where I take you through the entire process step-by-step!
Hardware:
- Arduino Nano: https://amzn.to/40jh3Tr
- Sensor Shield: https://amzn.to/3Yh5mKx
- Continuous Servo: https://amzn.to/3AaOSLW
- 180 Servo: https://amzn.to/3BZGaAD
- IR Remote: https://amzn.to/4eYhqHt
- Rubber Bands: https://amzn.to/3YBAwgQ
- Battery Pack: https://amzn.to/3A4581k
- Batteries: https://a.co/d/eY7C1Kl
- 3D Printer Filament: https://amzn.to/3A93USp
Software:
Print Settings:
- Recommended Print Profile Settings:
- Printer: Bambu Labs P1S
- Material ESUN PLA+
- Nozzle: 0.4mm
- Layer Height: 0.2mm
- Infill Density: 15%
- Infill Pattern: Grid
Unique Print Profiles:
- Dart.stl - 0% Infill
- Tilt_Mount - Support Enabled

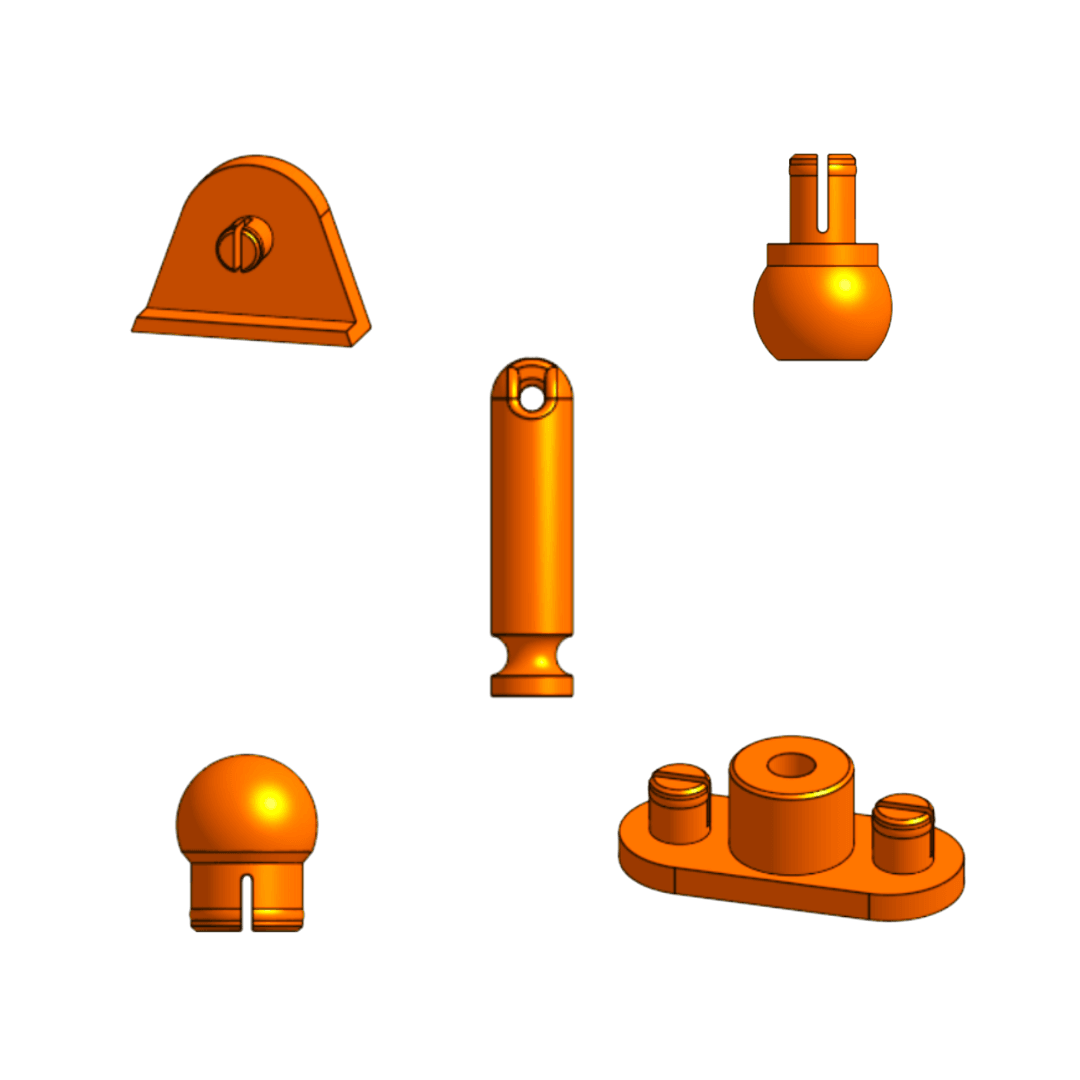

Print Quantities:
- Balll_Pin x 4
- Barrel x 1
- Base x 1
- Base_Servo_Mount x 1
- Battery_mount x 1
- Dart x 6
- Foot x 4
- Tilt_Mount x 1
- Tilt_Pin x 1
- Top x 1
