Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5396961.

This is a remix of our popular Fully Customizable General Purpose Handles.

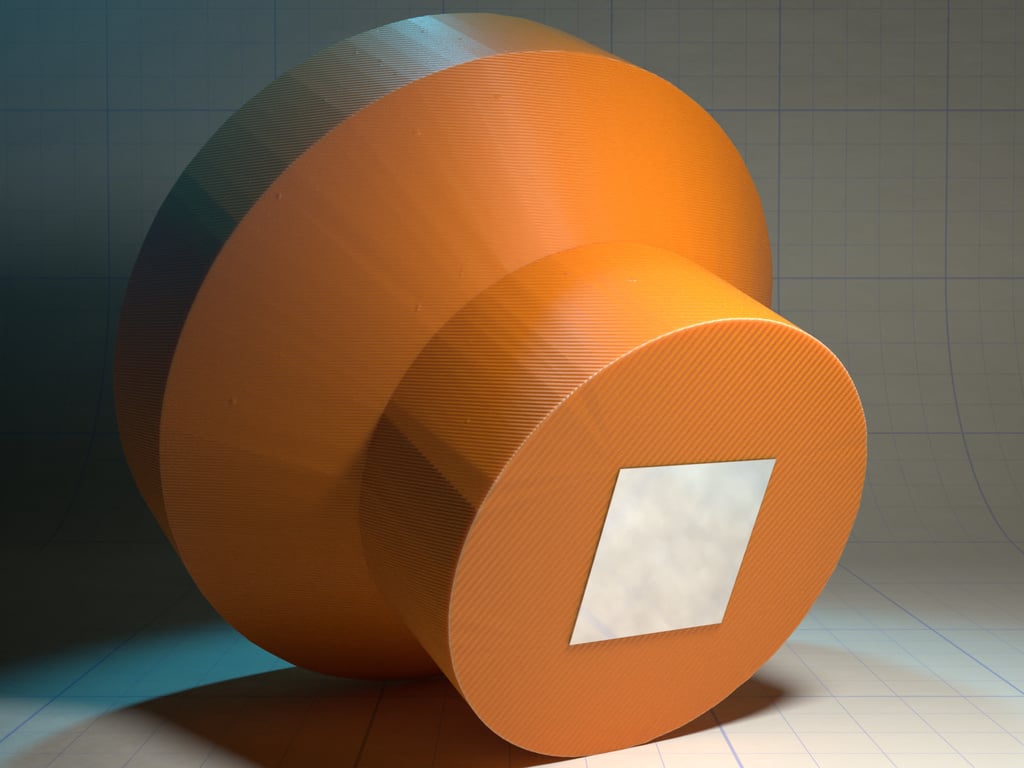

This remix allows you to insert a magnet into the handle (instead of a screw).

This design was created by request and is currently untested.

This design is completely free and shared under a permissive license. Your support is hugely appreciated.

Did you know?

Some of our designs cannot be found on Thingiverse. If you are looking for more, check out our premium projects:

https://codeandmake.com/premium

OpenSCAD Customizer Options

We recommend you use OpenSCAD to customize this design.

This design has the following Customizer options:

Magnet

• Magnet_Hole_Width - Magnet hole width (X axis)
• Magnet_Hole_Length - Magnet hole length (Y axis)
• Magnet_Hole_Height - Magnet hole height (Z axis)

Stem

• Stem_Material_Thickness - Thickness of stem (X and Y axis)
• Stem_Height - Height of stem (Z axis)

Handle

• Handle_Grip_Width - Width of grip (X and Y axis)
• Handle_Height - Height of handle (Z axis)
• Square_Handle - Should the handle be square?

Base

• Base_Enabled - Should a base be added?
• Base_Lip_Width - Width of base lip (X and Y axis)
• Base_Lip_Height - Height of base lip (Z axis)

Bevel

• Bevel_Radius - Radius of bevel
• Bevel_Rounded - Should bevel be rounded?

Design Considerations

The magnet hole measurements should be slightly larger than the magnet. We recommend using strong glue to hold the magnet in place.

Material

This design is perfect for printing in many filaments, including PLA, PETG and ABS.

Versions

• 1.0 (28 May 2022) - Initial version

Printing

Recommended slicer settings:

• Resolution: 0.1mm - 0.2mm
• Infill: ~20% or higher if you need extra durability.
• Supports: Doesn't Matter
• Rafts: Doesn't Matter

License

The "Handle with Magnet" model (.stl) is licensed under the CC BY license by Code and Make.

The "Handle with Magnet" code (.scad) is licensed under The MIT License by Code and Make.

Note: 'BSD' license has been selected as it is the closest available option in the list.
