MUNBYN LABEL HOLDER

Munbyn Label Holder.3mf

Filament Spool Stabilizer

The spool holder that came with my AnyCubic Vyper is not parallel with the ground, causing the spool to naturally slide to one side of the spool holder.

If there's an overlap in the filament spool, it could cause the spool to jump off the spool holder.

I've created a bracket that easily slides into the spool and locks onto the spool holder.

-No Support
-20-100% Infill

RepRack Streamlined Clamp

RepRack_Clamp_Remix_V1.step

Double Rack - DIY Filament Storage - RepRack Remix!

Double_Shelf_RepRack_V3.step

Ceiling Spool Holder

Hey,
I ran out of space, that's why I made a spool holder that can be hung from the ceiling.
You could theoretically just use a rope but i was worried the rope might wear out so i overengineered it xD
You need rope and optionally skateboard bearings.
Assemble like in the pictures.
If you don't use bearings, just print the Role that should do the job just fine.
I tied little rings to the ends of my rope to make it easy to disassemble, You could certainly print these, but I used some I had flying around.

Honeycomb Spool Holder

This simple spool holder is made to sit beside your 3D printer so that you do not need to rely on the original spool holder the printer comes with. It is meant for most (inner hole of spool must be 43mm or larger to fit) spools of filament 1kg or less. It has a modern aesthetic that culminates with the hexagonal pattern on its side wall.

Bambu Lab Filament pulley for carbon x1

Change the direction of the filament to guide it into the machine in a gentle way, placing the spool it a better orientation.

Recommended Material and settings:

PETG – dark color
Bottom and top layer 1.4mm 7 layers
5 layer wall thickness
Gryoid infill at least 15%
Plate: textured PEI plate with glue only on the parts for the calibration extrusions. No brim required.
Order of inner wall/ outer wall/ infill: infill, outside, inside or outside, infill, inside (i’ve switch to the former for most prints but I think I did particular machine with the later, I made this a few months ago and don’t remember, good luck)

Hardware Required
608 sized bearing
Super (cyanoacrylate) glue
1 Meter Bowden Tube

Assembly:
Press bearing into pulley, the glue flange over bearing – dark PETG colors glue better than light colors
Put assembled bearing onto spindle, place bracket over spindle and bracket locator, screw short screw into bracket locator – snug plus tightness is good enough

Insert new bowden tube into printer, the new tube only needs to be and inch or two longer, I recommend cutting it after you have the assembly somewhat located.

place assembly over filament spool holder, insert bowden tube into assembly, sticking out about an inch past it’s place of securing towards the pulley. Enough that the tube can flex a bit as the filament will move around a bit.

Ensure the bowden tube is graceful in its curving into the machine (to test you can push filament through the tube to test it’s ease of insertion), once satisfied place the threaded block on the underside of the machine and the longer screw through the assembly into the block. Tighten snug plus.

If you don’t know how to use the device at this point you should now have profound feelings of everlasting shame and may whatever deity you worship have mercy upon your wretched soul.


Other notes:

The bracket is strong enough to pull the bowden tube tight, pick up a full spool of tangled filament, the dry box it is in,  and all your frustrations at a failed print (I wouldn’t know, that’s just what a friend told me) without noticing.

SPOOL HOLDER

turn your spool to a display , i recommend using 100% infill or 2mm walls and top battom layers . you can use it for hot wheels display too

Lie Flat Spool Holder (with bearing)

Powermod Spool Holder - For Kingroon and other external power supplies

Kingroon PS Base PlateNew.stl

10 kg Spool Holder

assembled view.stl

spool holder-5kg (1).stl

One Piece Spool Holder

a2.stl

Spool Holder With Lights

part1.stl

Spool Holder Adapter for Lack Enclosure

spool-holder-adapter v2.stl

Shelf Brackets with Filament Spool Holder Mount!

Shelf_Brackets_V1.step

Ender series printer extended spool holder

This is an extender spool holder for any Ender series printer to allow you to mount wider spools on the printer

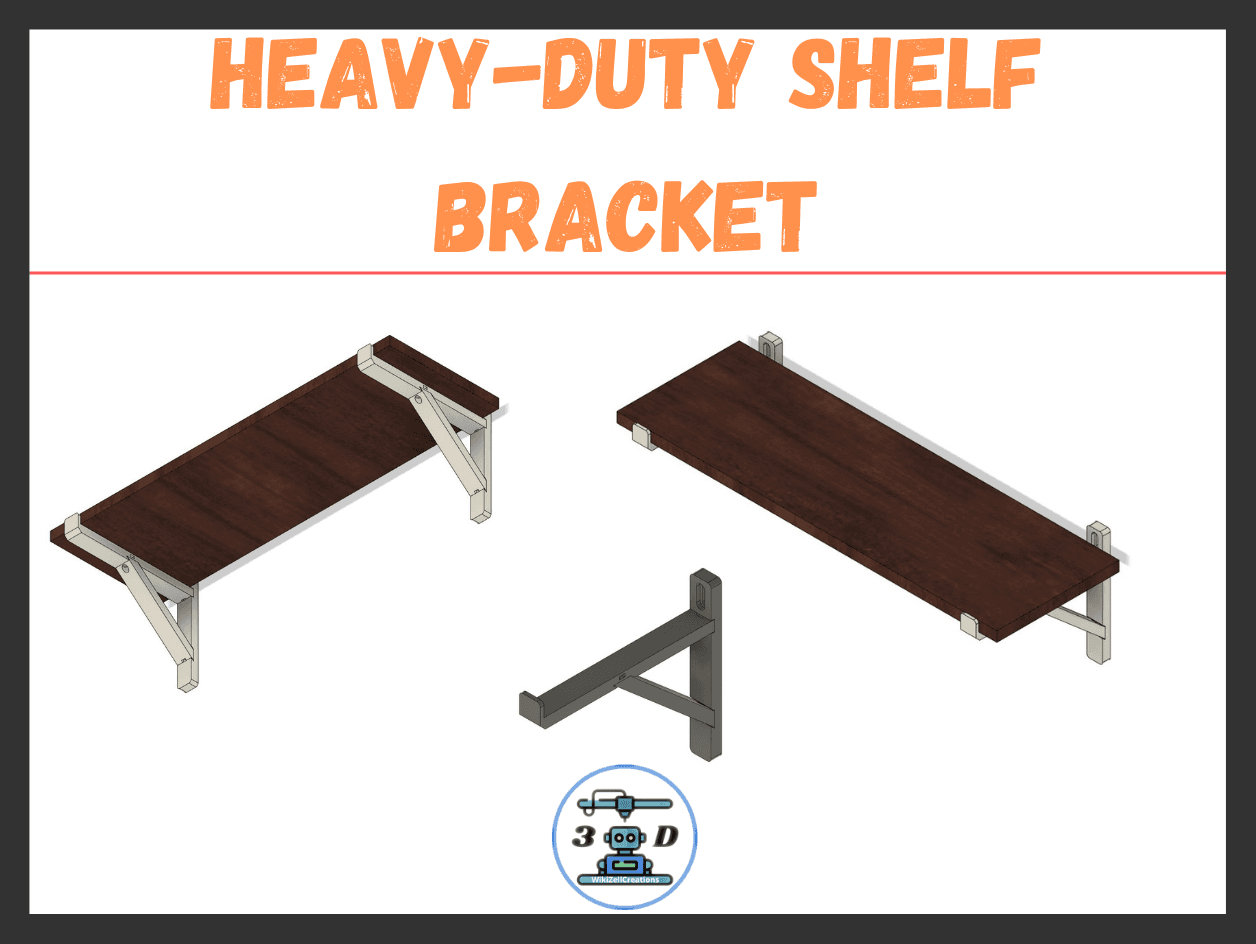

HEAVY DUTY SHELF - 235x20mm

back.stl

Filament Spool Holder for the Ender 3

Spool Turned Cap 001.stl
