Hall Squared Optical Illusion HueForge

Square_Illusion_Front_100x100.stl

Cube Optical Illusion HueForge

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm



Swap Instructions:
    Start with Black
    At layer #5 (0.48mm) swap to Gray
    At layer #7 (0.64mm) swap to White for the rest.


3D-Cube_Front_200x200.stl

Cloud Strife with Buster Sword Pop Art - Hueforge Hybrid

CloudPopArt.3mf

Tunnel Effect HueForge Optical Illusion

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm


Swap Instructions:
	Start with Black
	At layer #6 (0.56mm) swap to Gray
	At layer #10 (0.88mm) swap to White for the rest.


Hall of Optical Illusion HueForge Art

Hall_of_Illusion_Front_100x100.stl

Giant Oreo HueForge

Oreo_Front_200x200.stl

Hueforge  - women skull.stl

Hueforge - Women skull

To print it, 2 colors were used, in order:
- PLA Black from Arianeplast
- PLA White from Ariane plast

**Print settings** :

- Height of the first layer: 0.16mm
- Height of other layers: 0.08mm
- 100% filling

- Black until layer #19 at 1.6mm
- White for the rest.

We obviously have a HUEFORGE license.

All my designs are copyrighted, so you can't sell digital or print files of them. If you would like to sell prints of my designs you can take out a commercial license.

If you'd like to keep up to date with the release of all my creations, don't hesitate to join me on my various networks:

[Instagram](https://www.instagram.com/arthena_3d/)

[Facebook](https://www.facebook.com/Arthena3D/)

[Tiktok](https://www.tiktok.com/@arthena.3d)

Don't hesitate to tag me or DM me on all my networks if you post photos of my creations, I'd love to see and share them :)

The Great Wave off Kanagawa Shadow Box

Plate 2.stl

Tardis in Space - Hueforge Hybrid Print

A wibbly wobbly timey wimey model for all the Whovians out here!



This is another Hueforge Hybrid print, where the Tardis ‘pops out’ of the print for a little personality. This print combines Hueforge filament painting methods with traditional 3D printing to create a lovely pop art style print.



**Note: **If you are using the 3MF for one click printing, all settings will have been applied to the model. I used 5 filaments for this on one AMS and swapped one spool out of the AMS when the colour was finished printing for the 5th colour.


**Note 2:** This print also has steep overhangs with no supports. If you're not confident in your printer handling supports with my 3MF file settings, do not use the one-click printing function and import the 3MF file into your slicer and adjust the settings for the ‘Tardis_Export3.STL’ part of the assembly to suit your own supports/overhang settings.



If you are not using the one-click 3MF, the print instructions and recommendations are as follows:

1. This printed without supports, but I enabled slow down for overhangs. This print DOES require your printer / filament to be dialled in to be able to print the overhangs for the Tardis effectively. If you're not confident, I would enable supports. You would not be able to see it or remove it as the supports should only be applied to areas inside the Tardis.
2. I used a layer height modifier to modify the layer height specific to the Tardis (2.04mm - 33mm) to increase it to 0.16 to speed up the print.
3. I also modified the infill for the the Tardis and the ‘Generic Cube’ to only print at 10% with 4 walls and 4 top and bottom surfaces.
4. Since this print re-uses the Blue and the Black, if you are using only 1 AMS, I suggest swapping out Slot 3 (should be orange) for the white when you are swapping the colours out.
5. My recommendation is to have Black, Blue, Orange, Yellow in Slots 1,2,3, and 4 in the AMS, and then swap the orange for white when the orange is done printing.
6. If you want to use a different colour for the Tardis, then you can swap out the Blue accordingly

**Filament Instructions**


Print at 100% infill with a layer height of 0.08mm with a base layer of 0.2mm



**Filaments Used:**
- PLA Kingroon Black Transmission Distance: 0.4
- PLA+ Polymaker Starlight Neptune (Blue) Transmission Distance: 1.8
- PLA CC3D Orange Transmission Distance: 7.4
- PLA CC3D  Lemon Yellow Transmission Distance: 8
- PLA Kingroon White Transmission Distance: 8



**Swap Instructions:**
- Start with Black
- At layer #8 (0.76mm) swap to Starlight Neptune (Blue)
- At layer #9 (0.84mm) swap to Orange
- At layer #15 (1.32mm) swap to Lemon Yellow
- At layer #17 (1.48mm) swap to White

- At layer #24 (2.04mm) swap to Black

- At layer #27 (2.52mm) swap to Starlight Neptune (for the Tardis!)

Winter Village

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

Filaments Used:
	PLA PolyTerra Charcoal Black Transmission Distance: 0.3
	PLA PolyLite Azure Blue Transmission Distance: 3
	PLA PolyLite White Transmission Distance: 5

Swap Instructions:
	Start with Charcoal Black
	At layer #4 (0.4mm) swap to Azure Blue
	At layer #9 (0.8mm) swap to White for the rest.

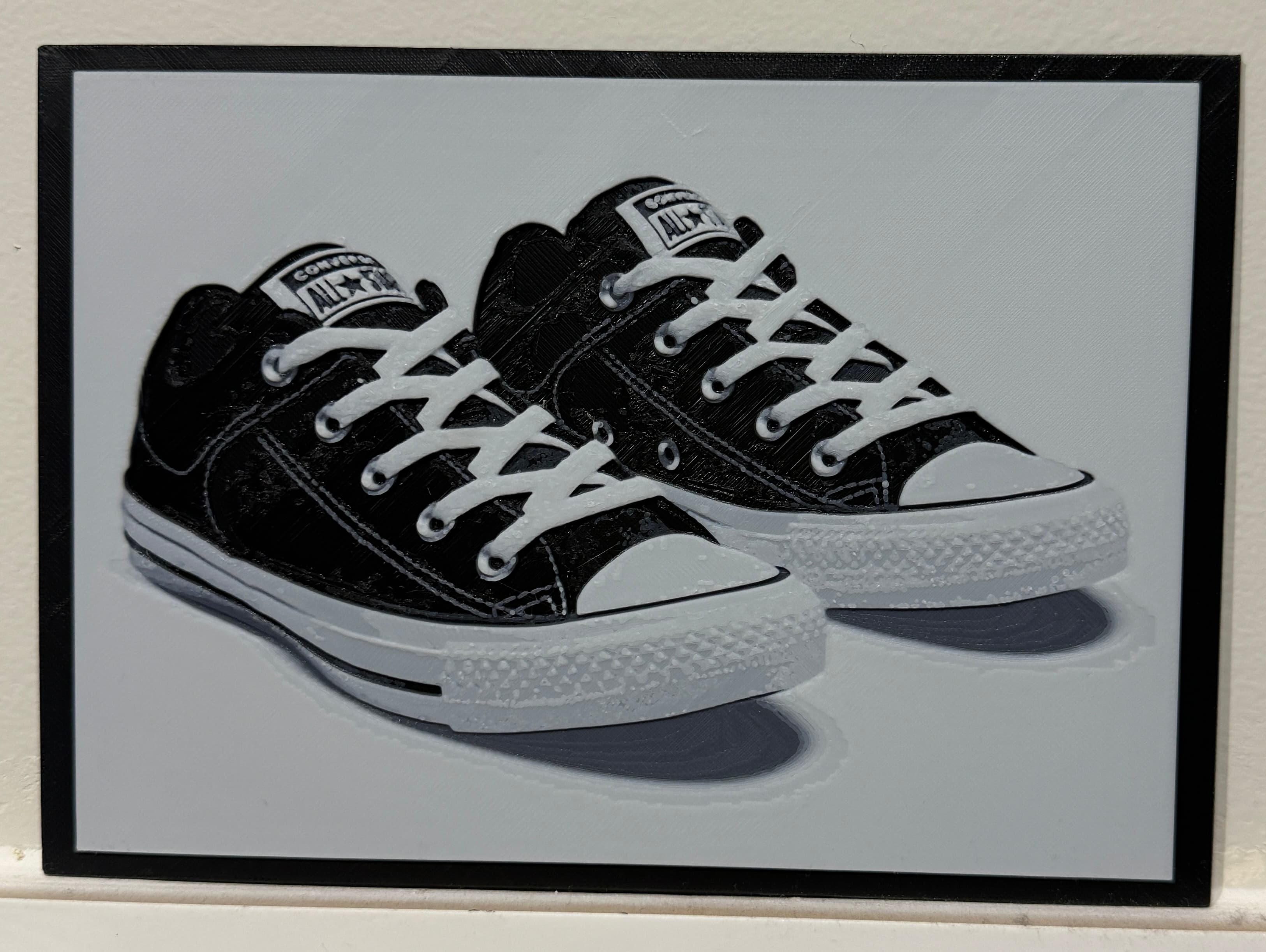

Converse All Stars - Hueforge Print

Converse_Front_200x142.3mf

The Fighter

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.3mm

Filaments Used:
	PLA PolyTerra Charcoal Black Transmission Distance: 0.3
	PLA PolyLite Natural Transmission Distance: 21
	PLA PolyLite Azure Blue Transmission Distance: 3
	PLA PolyLite Lime Green Transmission Distance: 3.5

Swap Instructions:
	Start with Charcoal Black
	At layer #6 (0.7mm) swap to Natural
	At layer #8 (0.86mm) swap to Azure Blue
	At layer #13 (1.26mm) swap to Lime Green for the rest.


Jack Skellington Band Poster

A quirky little Halloween print of Jack Skellington as if he's in a pop-punk band. You can replace the green with any colour you think fits, and the Teal with any light colour (grey, beige etc). Have fun!



As with other Hueforge models, an AMS or an MMU is not necessary. All you have to do is set pauses where the filament swaps are being done, and then load the new filament in before resuming the print.



Print at 100% infill with a layer height of 0.08mm with a base layer of 0.24mm



**Filaments Used:**
- PLA Kingroon Black Transmission Distance: 0.4
- PLA BambuLab Basic BambuLab Green Transmission Distance: 8
- PLA META Sunlu Teal Transmission Distance: 5.4
- PLA Kingroon White Transmission Distance: 8


**Swap Instructions:**
- Start with Black
- At layer #10 (0.96mm) swap to BambuLab Green
- At layer #17 (1.52mm) swap to Teal
- At layer #23 (2mm) swap to White for the rest.

bandskellington_Front_160x213.3mf

Jack Skellington Pop Out Print - Hueforge Hybrid

This unique print-in-place Jack Skellington piece utilises a hybrid printing method that combines Hueforge filament painting and a traditional 3D print model. Jack's head sticks out of the print, giving it a little bit of a personality!



**Important for this print:**  Black is repeated just before the head is printed. If you only have one AMS, I suggest leaving black in Slot 1 and removing AMS slot 2 once its finished printing to replace it with the colour for the head (if using something other than white).  If you are using white, you do not need to remove and replace anything! Just assign the white to the slot your white filament is in.

The included 3MF has all the settings already applied if you are using the profile attached, but if you are downloading the raw files and using your own print profile, please follow the instructions below.


**Print Instructions**

1. The print swaps filaments 5 times, with the final time being the colour of Jack's head that ‘pops out’ from the print. In my print, I used a 5th colour (Glow in the Dark), but you can use what ever colour you want, or even reuse the white.
2. I printed with supports for the head, but depending on your printer, you may get away with not having supports. I have altered the head to be printed with 5% infill.
3. I printed this file with adaptive layer heights for the head to speed things up (0.2 for the base of the head and 0.04 towards the top of the head). This should be reflected in the 3MF file. You can certainly do this, or use your own settings as well.
4. Post processing includes removing supports for the head, through the holes for the eyes. The tree supports that I used with my settings were fairly easy to remove, however if you are worried, please feel free to use your own support settings to ensure ease of clean-up and removal!

**Filament Swaps**
Print at 100% infill with a layer height of 0.04mm with a base layer of 0.2mm



**Filaments Used:**
- PLA Kingroon Black Transmission Distance: 0.4
- PLA+ Sunlu Red Transmission Distance: 6
- PLA META Sunlu Teal Transmission Distance: 5.4
- PLA Kingroon White Transmission Distance: 8
- PLA Overture Glow in the Dark Transmission Distance: 8 (this is your head colour!)

**Swap Instructions:**
- Start with Black
- At 1.04mm swap to Red
- At 1.2mm swap to Teal
- At 1.36mm swap to White
- At 2.08mm swap to Black (this is a repeat colour!)
- At 2.92 swap to Glow in the Dark for the rest.  (Head Colour)

This print uses a model of [Jack's head](https://www.thingiverse.com/thing:1787394) created by Thingiverse user [vmatthews](https://www.thingiverse.com/vmatthews/designs.

Mrs. Claus Baking

mrs claus_Front_165x165.stl

Santa's Protrait

Santa_Front_165x167.stl

Sci Fi Poster in Midnight Green

**Print Instructions**
- Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

Filaments Used:
- PLA Black Transmission Distance: 0.3
- PLA BambuLab Tough Pine Green Transmission Distance: 1.5
- PLA Protopasta Scarlet Symphany Transmission Distance: 13
- PLA Protopasta Gold Dust Glitter Transmission Distance: 17

Swap Instructions:
- Start with Black
- At layer #5 (0.48mm) swap to Pine Green
- At layer #12 (1.04mm) swap to Scarlet Symphany
- At layer #22 (1.84mm) swap to Gold Dust Glitter for the rest.


Autumn Maple Leaf

I picked this leaf up on a walk in Montreal!
Celebrate Autumn with this leaf from Canada, in HueForge Form!

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

Filaments Used:
	PLA PolyTerra Charcoal Black Transmission Distance: 0.3
	PLA PolyLite Pro Orange Transmission Distance: 7.5
	PLA PolyTerra Lava Red Transmission Distance: 1
	PLA PolyTerra Savannah Yellow Transmission Distance: 3.5
	PLA PolyLite Pro White Transmission Distance: 5

Swap Instructions:
	Start with Charcoal Black
	At layer #7 (0.64mm) swap to Orange
	At layer #9 (0.8mm) swap to Lava Red
	At layer #12 (1.04mm) swap to Savannah Yellow
	At layer #18 (1.52mm) swap to White for the rest.


SnowFlake

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm

Filaments Used:
	PLA PolyTerra Charcoal Black Transmission Distance: 0.3
	PLA PolyLite Azure Blue Transmission Distance: 3
	PLA PolyLite White Transmission Distance: 5

Swap Instructions:
	Start with Charcoal Black
	At layer #5 (0.48mm) swap to Azure Blue
	At layer #13 (1.12mm) swap to White for the rest.
