Fuzzy Checkers Planter / Container (120mm)

Subscribe for access starting at $10 USD
Get access to this model and 293+ more
This model is restricted by licensing terms.

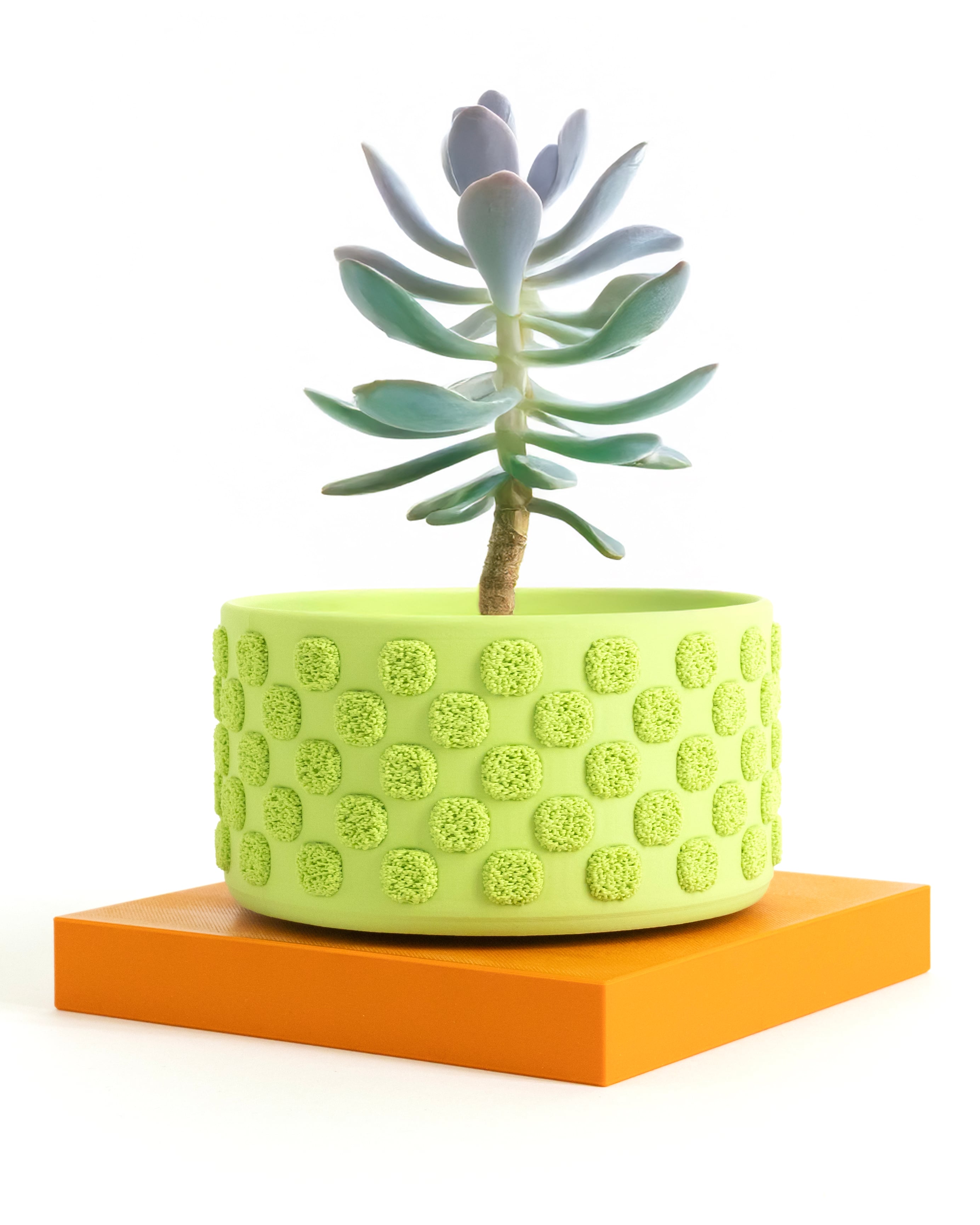

This print combines standard and 'Fuzzy Skin' printing for a unique and satisfying multi-textured appearance. Download includes variations for a planter (with drainage holes) and a container with a lid. Follow the printing guidelines below for a successful result!

Pictured with the 160mm Block Drip Tray available here.


Printing Guidelines

  • 3MF files for Bambu Studio and Prusa Slicer are included with the multi-texture settings already applied, but I still suggest you review the settings and slicer preview to make sure everything looks right for your setup

  • Combine 'Main' and 'Fuzzy' parts to print together. 'Main' prints with standard settings (0.16mm layer height, 2-3 perimeters, 5 top layers, 0.4mm outer wall width). For the 'Fuzzy' part, set perimeters to 1, infill to 0%, and enable Fuzzy Skin on 'All walls' with point distance of '0.3mm' and thickness of '0.6mm'.

Importing STLs as multipart models

  • For Bambu Studio/Orca Slicer, drag both files into the slicer together and select 'Yes' to the prompt 'Load these files as a single object with multiple parts?' Now you can individually modify parameters under the 'Objects' setting tab.

  • For Prusa Slicer, ensure that you are in 'Expert Mode'. First, import the 'Main' body, then right click on the name in the lefthand parts list, and click 'Add Part>Load' to add the 'Fuzzy' body. Now you can right click that part in the same list and go to 'Add Settings' to add 'Layers and Perimeters > Perimeters' + 'Infill > Fill density' + 'Fuzzy Skin > Fuzzy Skin + Fuzzy skin point distance + Fuzzy skin thickness'. That will add the ability to adjust those settings individually.

I also made a video about the process


Photographed models were printed on the Bambu Lab X1-Carbon 3D Printer using Bambu Lab PLA Basic Mistletoe Green (3DJake) and PolyTerra Matte PLA Mint Green (Amazon)(3DJake)*

These affiliate links give me a commission on sales at no additional cost to you. Thanks for supporting Make Anything!.


Discussions
roman.
roman.

the lid file included isnt fuzzy

Devin B
Make Anything

For that I just split it in my slicer and set the bottom half to fuzzy skin on 'outer contours only'
