Mini Crusher

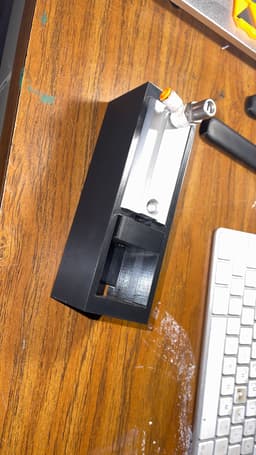

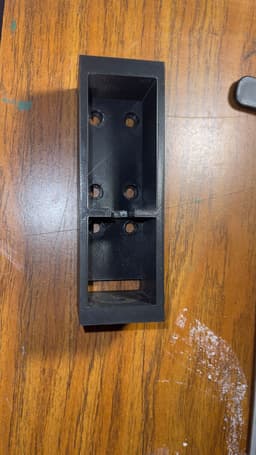

Mini crusher designed to crush Nespresso capsules. I designed this in Fusion 360 around an air cylinder I had laying around so if anyone wants to make this, you'll likely have to redesign it to fit the cylinder you have. Could be scaled up to be a can crusher, just have to play around with the CAD file. Uses M6 hardware to mount to a fixture table with 25mm spaced holes. Includes the ram thing to mount to the cylinder. Have fun!
