Break Action Shotgun Keychain — Functional Blaster Toy

5.9K downloads · 2 years ago · Break action double barreled shotgun blaster keychain that shoots 6mm plastic airsoft BBs from littl

This model is restricted by licensing terms.

View license.

Description

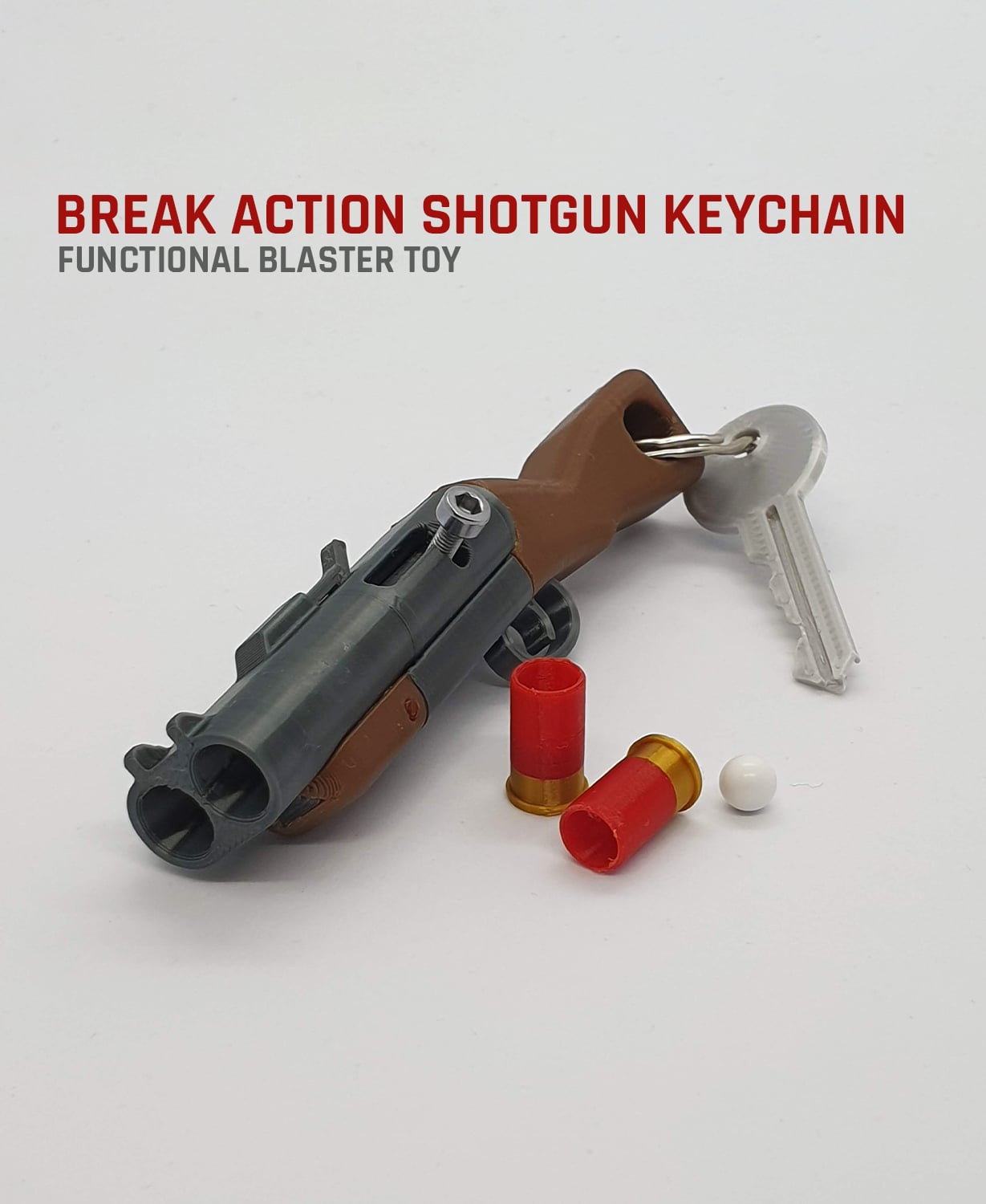

Break action double barreled shotgun blaster keychain that shoots 6mm plastic airsoft BBs from little shotgun shells! You can also print the included slug ammo to shoot if you don't have BBs!

Also check out the Shotgun Shell Box Keychain, perfect for carrying the shotgun shells on the go!

Printing tips: No supports needed! All the parts are oriented in the correct printing orientation.

If you use Bambu Studio or OrcaSlicer, a handy print project file is included!

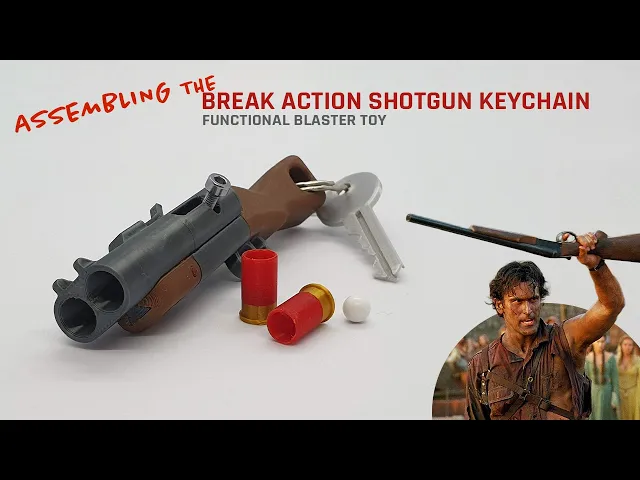

Assembly: You'll need superglue, two small 5mm diameter springs 15-25mm long, and two M3 bolts at least 10mm long. See the included assembly video!

If you enjoy my designs and want to sell prints of them, I have membership tiers with commercial license available! Also if you want to support me while getting access to all my premium designs, I have a cheap personal tier. Please check out my membership plans! ❤

Tags:

Community Makes (5)

Made it, then wanted it bigger so this is 400%. I might still get the springs and bolts sized up, would need 20x50mm springs I think

Pretty good, but the barrels gave me some trouble. For me, pen springs worked fine.

Community Makes (5)

Discussions

JTCbanana292 years ago

I loved it

PrinterCreality Ender 3 V3 SE

Print bed sizeX: 220 mm; Y: 220 mm; Z: 240 mm

MaterialPLA

Layer height3 mm

Infill density30 %

Purple Lion Prints7 months ago

Made it, then wanted it bigger so this is 400%. I might still get the springs and bolts sized up, would need 20x50mm springs I think

MrLobato1 year ago

PrinterBambu Lab P1S

MaterialPLA

wub3331 year ago

Pretty good, but the barrels gave me some trouble. For me, pen springs worked fine.

PrinterSovol SV06

Print bed sizeX: 220 mm; Y: 220 mm; Z: 250 mm

MaterialPLA

Infill density15 %

SupportsNone

cavelamond221 month ago

Printer3D Cloner DH

abbas.78643212 years ago

can you use pen springs for it?

Stryc92 years ago

I printed a similar model to this one yesterday and put pen springs in it, while it does work it could be better. The BBs don't go very far with just pen springs.

Jaatinen3D2 years ago

You can try, but they might be a bit too weak.

chase.r.springer121 year ago

DOUBLE THEM UP!!! (maybe, don't trust me)

jackflusche2 years ago

the video is down

Jaatinen3D2 years ago

It seems to work, at least for me. 🤔

hoonGolian2 years ago

Awesome model, thanks for posting. The "barrels" stl seems to be missing a chamfer on the right barrel where the shell inserts.

Jaatinen3D2 years ago

Thank you so much for letting me know about the missing chamfer! I've fixed it now! Fusion 360 being Fusion 360...

tinglep2 years ago

I was about to start assembling and imprinted last night. How can I tell if my barrel is fixed?

Jaatinen3D2 years ago

Both barrels in the fixed version have a chamfer where the shells go. Even if you've printed the old version, it shouldn't affect functionality, it's just cosmetic in most cases.
