This is a 3d printed case for a micro fpv camera. It makes it easier for mounting to rc toys.

I got this micro camera for my birthday but I didn't know how to mount it on my drones and rc stuff. I also didn't find any good 3d models on here so I decided to design my own case for it. This is the camera I have: https://www.ebay.com/itm/AKK-A3-AIO-Micro-FPV-Cam-with-5-8GHz-40CH-0-25mW-50mW-200mW-Switchable-VTX-fo/172881083138

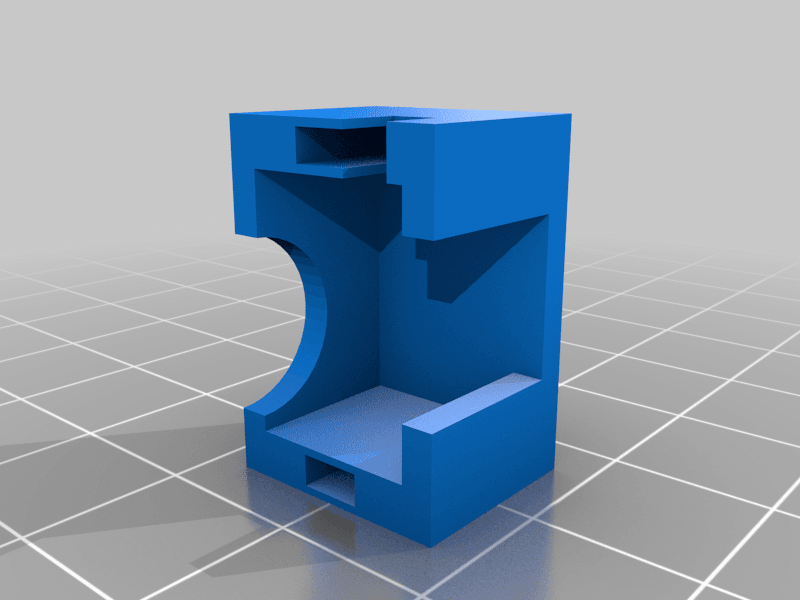

The case is made from two parts (left and right one) so it can be easily put on and it doesn't need supports to 3d print it. The case is slightly too big so it doesn't damage the camera. I put a small rubber square from a pen grip thingy in the left side piece and the camera fitted nicely. There are holes on each side for zip ties to lock the camera in when you're happy with the case (you can't press the tiny button after assembly).

I hope this thing is usefull to you. If it is, please post a make :)
