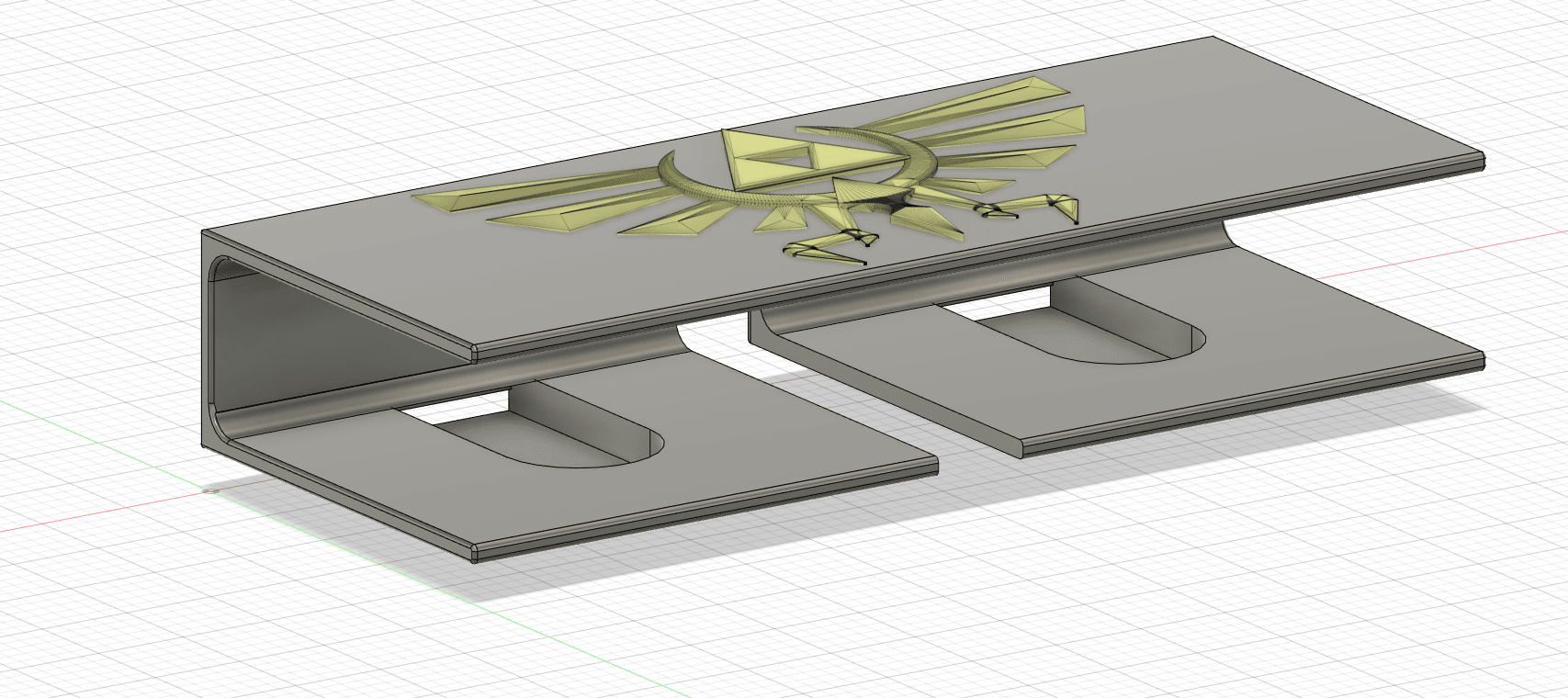

Designed to fit the original Wii sensor bar. It holds 2 neodymium magnets and can mount to a metal strip or 2 more magnets attached above or below your TV or entertainment center. do not use magnets near old tube style TVs, it'll mess them up, LCD screens 𝘴𝘩𝘰𝘶𝘭𝘥 be fine but do your own research The magnet slots were designed for the harbor freight rare earth magnets that are roughly 2x8mm anything that size or smaller should work fine. Put the magnets in from the inside hole and then put in the sensor bar to keep them from slipping out. Added the Zelda Hyrule Wingcrest (modeled by IanHoolihan on thingverse) for flair. This model prints without support with the Triforce pointing at the bed. (Cable slot side down) This model is not perfect, but it works and its free.

Printed on ender 3 pro in PLA at standard profile settings, 0.4mm nozzle, 0.12mm layer height and 100% infill

It took around an hour to print and used about 4 grams of filament.
