Gaggiuino Gen3 LCD Simple Funnel Mount

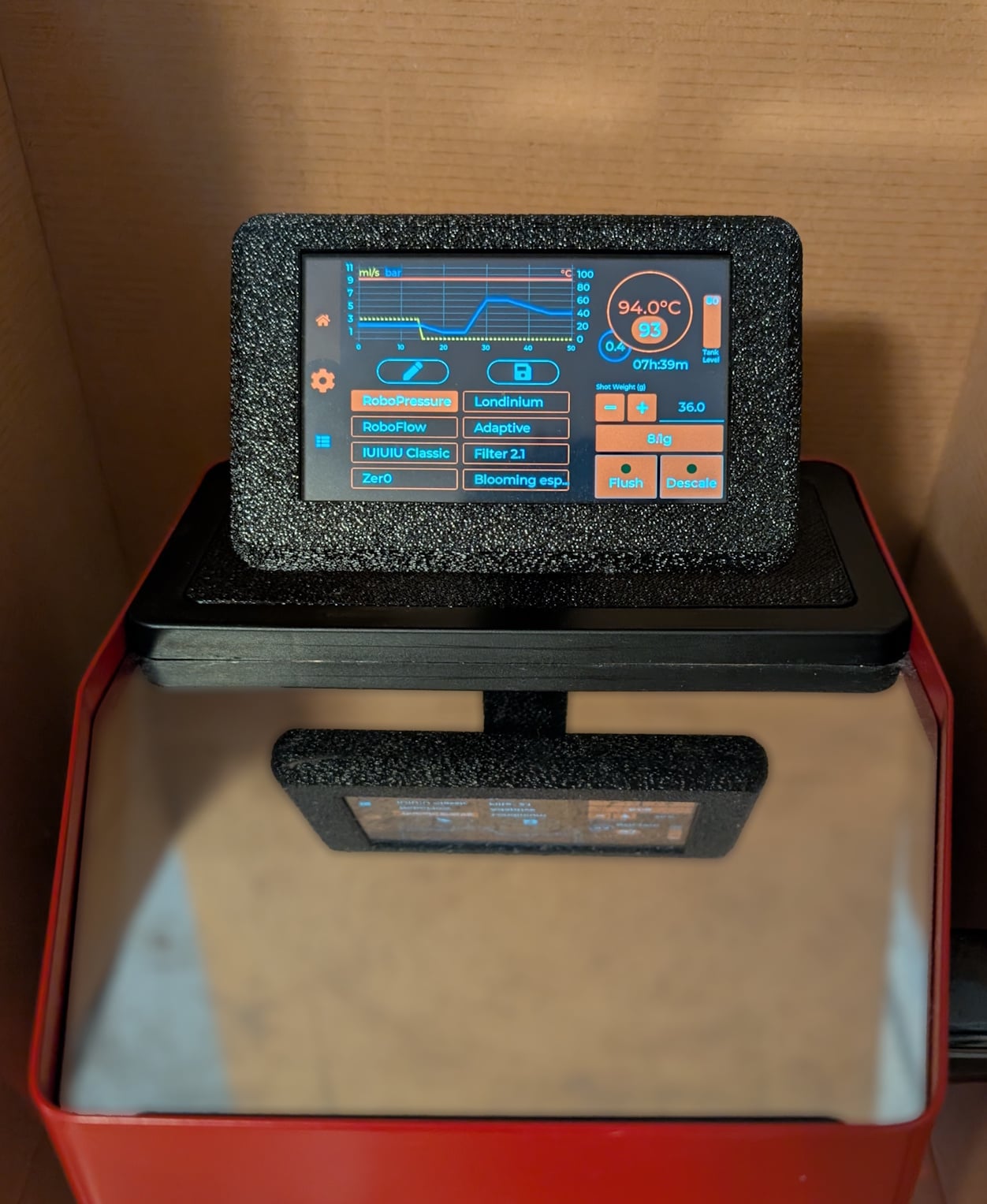

A simplified funnel mount, without the sliding door (easy print). The LCD post has a shaft for the wires to be passed through.

You must split the model into the 3 parts (base, post, mount).

Print the base upside-down with supports, and with high infill/perimeters for more weight. Print the LCD post with high infill for weight, and optionally with fuzzy skin. Print Optionally, print the visible external walls on the mount with fuzzy skin.

You will need to use Loogle's [awesome] screen housing (front and back). Fuzzy skin is also nice here.

You will require (2) M3 square nuts, (4) M3 x 8mm bolts and (3) M3 x 12-22mm bolts.

1. Route the cables through the post wire channel
2. Gently self-tap and screw in the longer bolts attaching the base to the post
3. Push the square nuts into place in the post
4. Attach the mount to the post and screw in the lower two bolts into the nuts
5. Gently self-tap and screw in the remaining higher two bolts

To use the SCAD file, you will need OpenSCAD and the BOSL2 library.
