Kayak Hoist Pulley Wheel

29 downloads · 5 years ago · The cheap plastic Pulley Wheel broke on my Menards Kayak Hoist. This will print as a direct replace

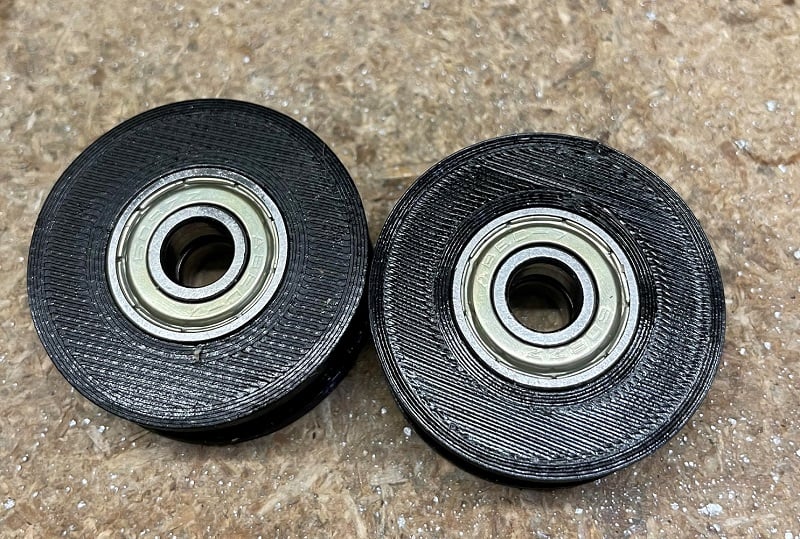

The cheap plastic Pulley Wheel broke on my Menards Kayak Hoist. This will print as a direct replacement, using a 608ZZ bearing (press fit) and a 5/16" by 2" bolt.

Printed on a CR6SE, using GST3D PLA+ at 100% infill with a .4mm nozzle and 0.2mm layer height
