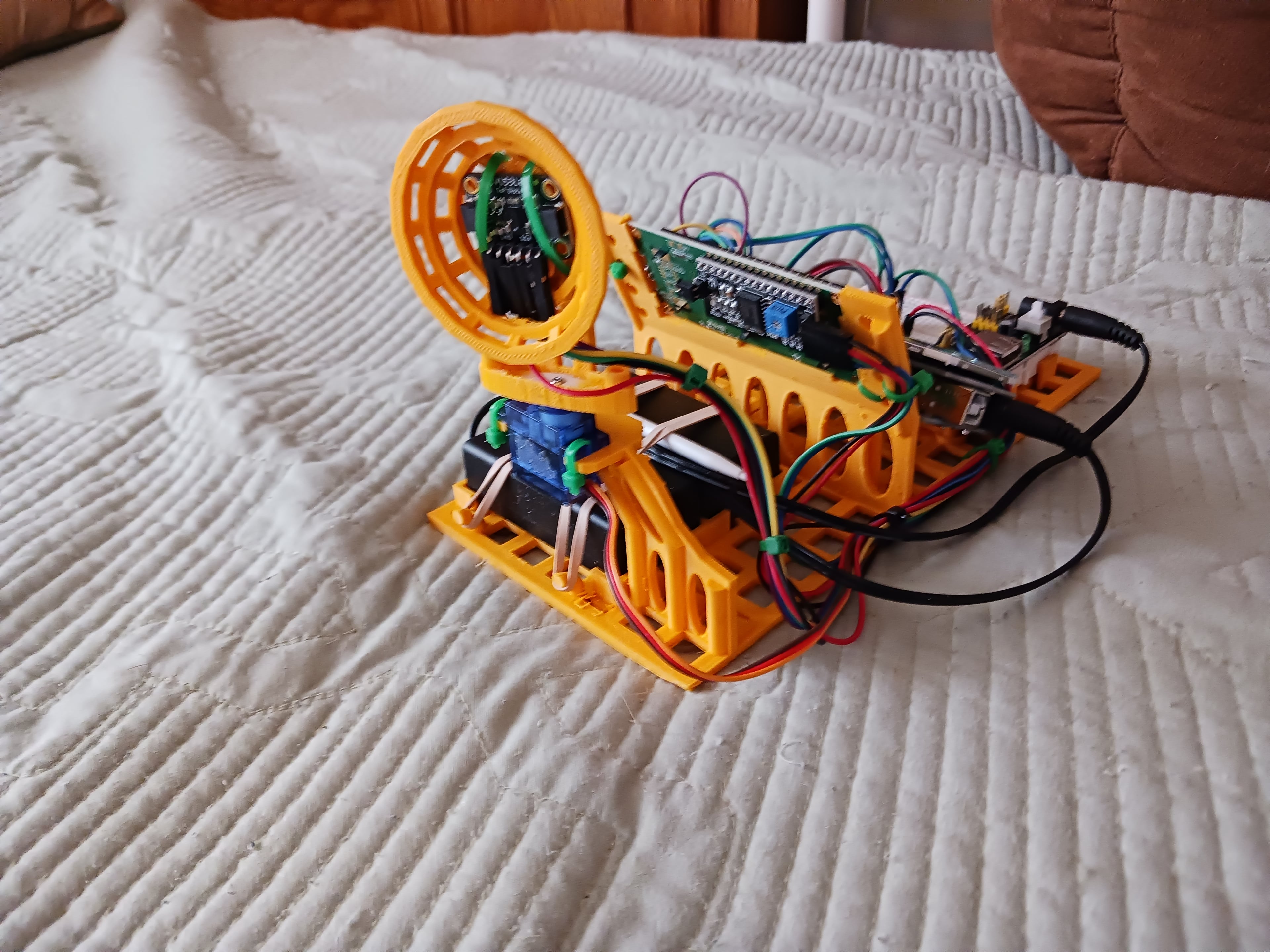

Tried to create/code a project that uses an Arduino, a VL53L0X laser range finder, a 1602 LCD to display distance text, a TFT LCD to display sweeping RADAR/SONAR scope with red dots for nearby contacts, and a servo to sweep the range finder back and forth. It is a work in progress as we still have trouble erasing sweep lines after red contacts are displayed. Was also going to add a beep & light flash when a contact appears on the RADAR screen.
