DJI Osmo Pocket 3 base for 8x3mm magnets, with Lite Multipoint Rail

11 downloads · 1 year ago · This is a magnetic holder for the DJI OSMO Pocket 3 gimbal camera. I started out with [Chrizzl's des

This model is restricted by licensing terms.

View license.

Description

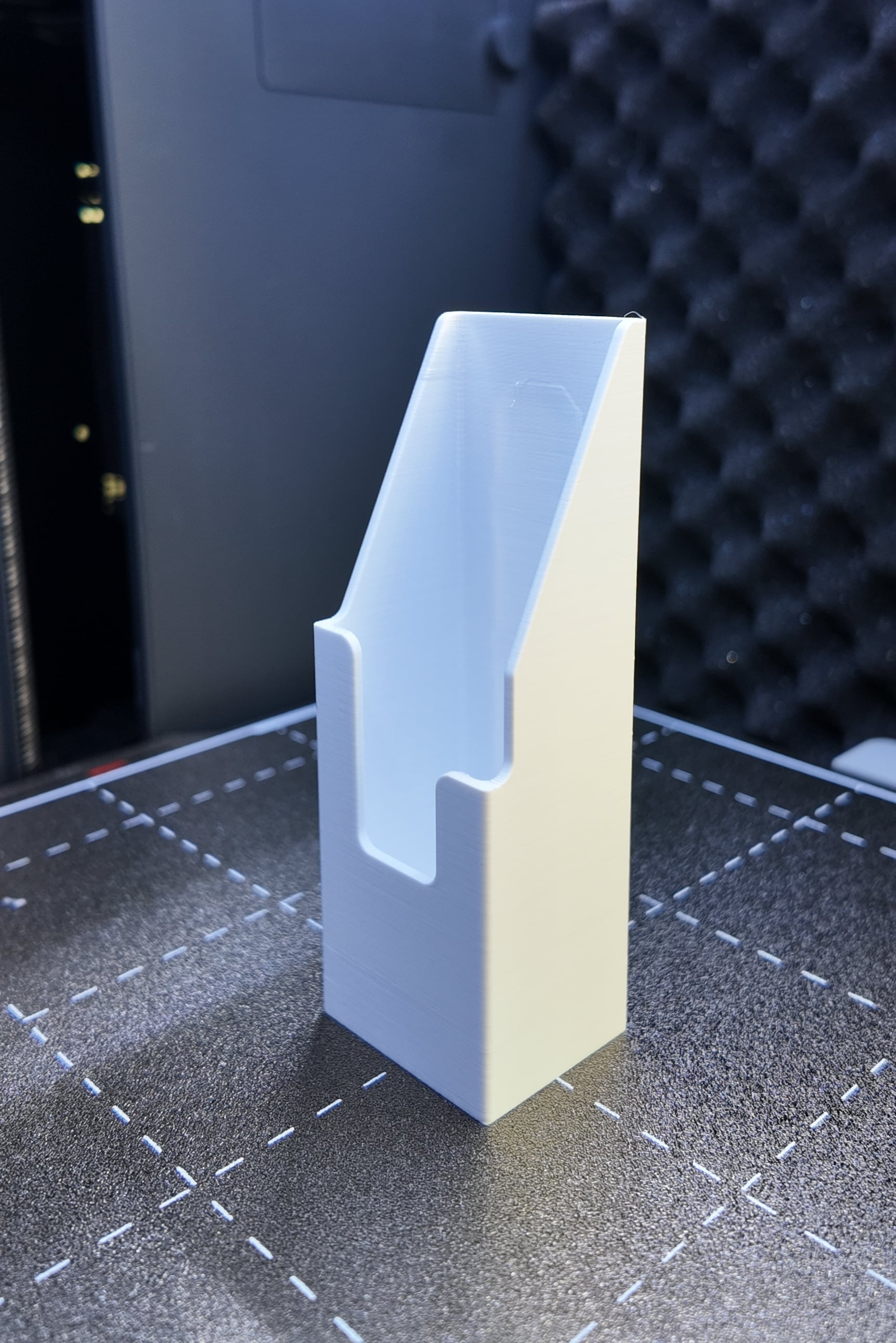

This is a magnetic holder for the DJI OSMO Pocket 3 gimbal camera. I started out with Chrizzl's design, but as I did not have any square magnets in stock I decided to modify his design. I therefore changed the bottom to take ten 8x3 round magnets (in stacks of two) and - since I'm nuts about all things Multiboard - I also added a Lite Multipoint Rail to the back, so that the base can also be used to store the DJI OSMO Pocket 3.

The magnets will be a press fit and does not require glue, but feel free to use super glue for added support.

CAUTION:

Do not have the OSMO inserted in the base when attaching the base to a Multiboard surface - attach the base to the board first and then insert the OSMO.
The base is not designed for - nor can it be used as - a webcam holder for the OSMO. There is not enough clearance to the rear for the gimbal to turn when the base is attached to a Multiboard surface. Using the base this way may damage your camera. If you need a holder for webcam use, try this design instead.
