Printed Speaker Driver

by
Lubbock238
Follow
Follow
Remix Model
Lubbock238
Lubbock238
Image 1 of 6

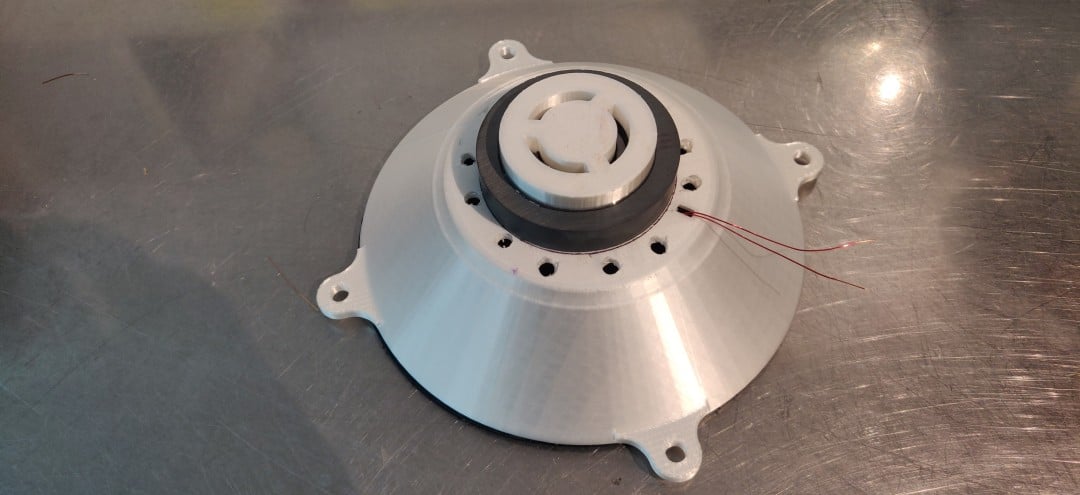

Printed Speaker Driver - Bottom of assembled speaker, not that V5 has integrated holes along the bottom. Thus does not require the hand drilled holes shown here. - 3d model
2D
3D
Makes
Printed Speaker Driver - Bottom of assembled speaker, not that V5 has integrated holes along the bottom. Thus does not require the hand drilled holes shown here. - 3d model
Printed Speaker Driver - Finished Assembly - 3d model
Printed Speaker Driver 3d model
Printed Speaker Driver 3d model
Printed Speaker Driver 3d model
Printed Speaker Driver 3d model
4 Likes13 DownloadsMay 21, 2021


Working Fully 3d printed Speaker using PLA and TPU filaments, though if you can, substituting TPU for a more flexible filament would yield better results.

Assembly requires only adding a 40mm id 80mm od ring magnet and a 30mm od circular magnet (Both magnets are recommended to be about 15mm in height), wind an insulated copper wire magnet coil, and glue parts together with epoxy.
