My daughter's new small desk is hanging on the side of her bed.

The distance of the opening between the wooden bars is about 7cm.

After printing v1 I learned that it would be better to ‘hook onto’ the top. So I made a v2 that was also a bit simpler. Both only just fit on a Prusa MK3S+ bed (I needed to limit the brim to 1,5mm to make it fit).

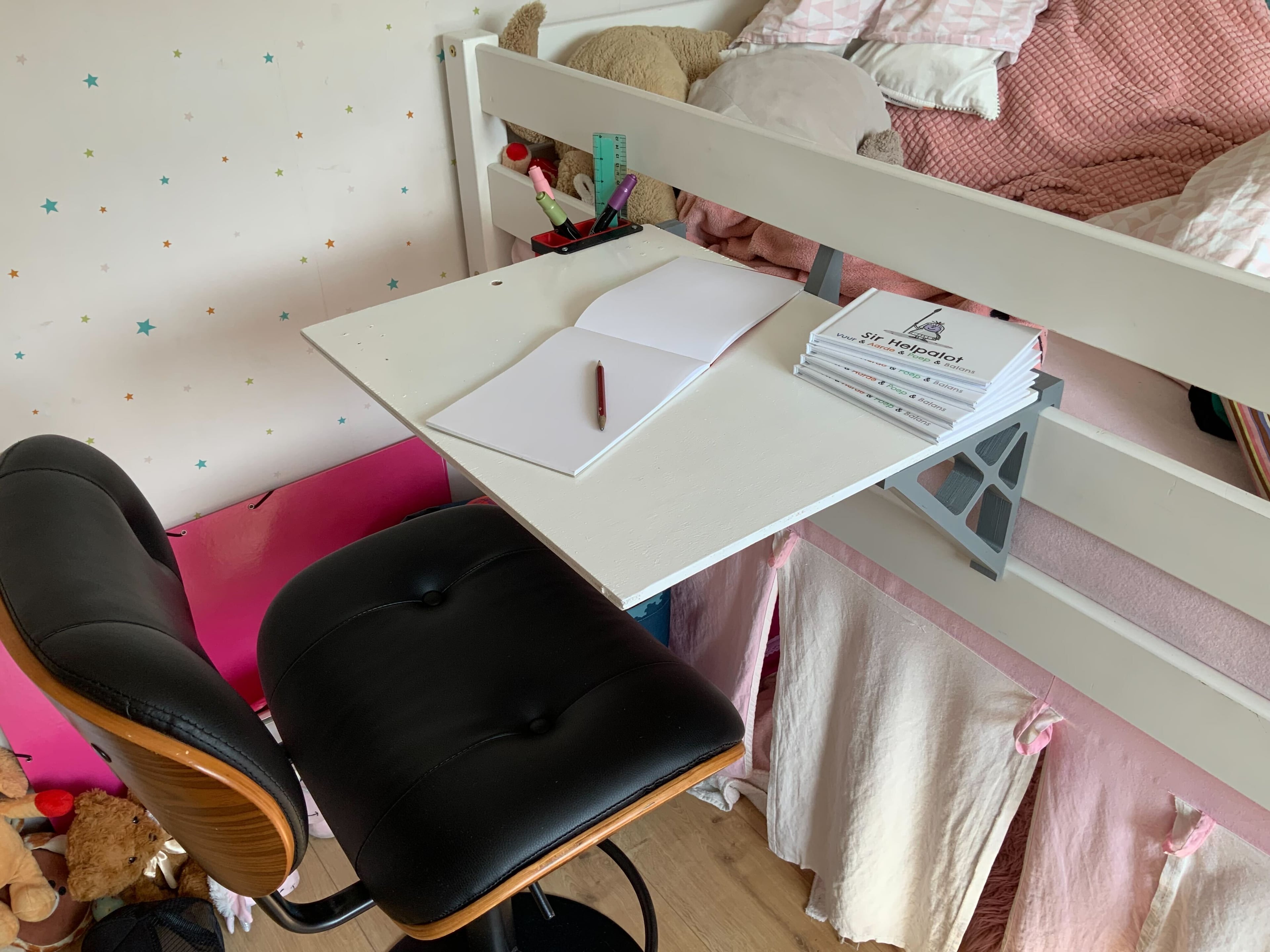

In the picture you see I also use the v1 brackets, because it would be a waste not to.

I printed it in PETG, since presumably PLA will sag in the long term under a constant force. Also PETG probably slides better.

Also in the pictures is my desk side tray.

Print instruction: I used a modifier block at the smallest point and set infill to 25% to make it a bit stronger.
