Libra mini Toolhead V0.0

by

Aizu_Maker

Follow
Follow
Like

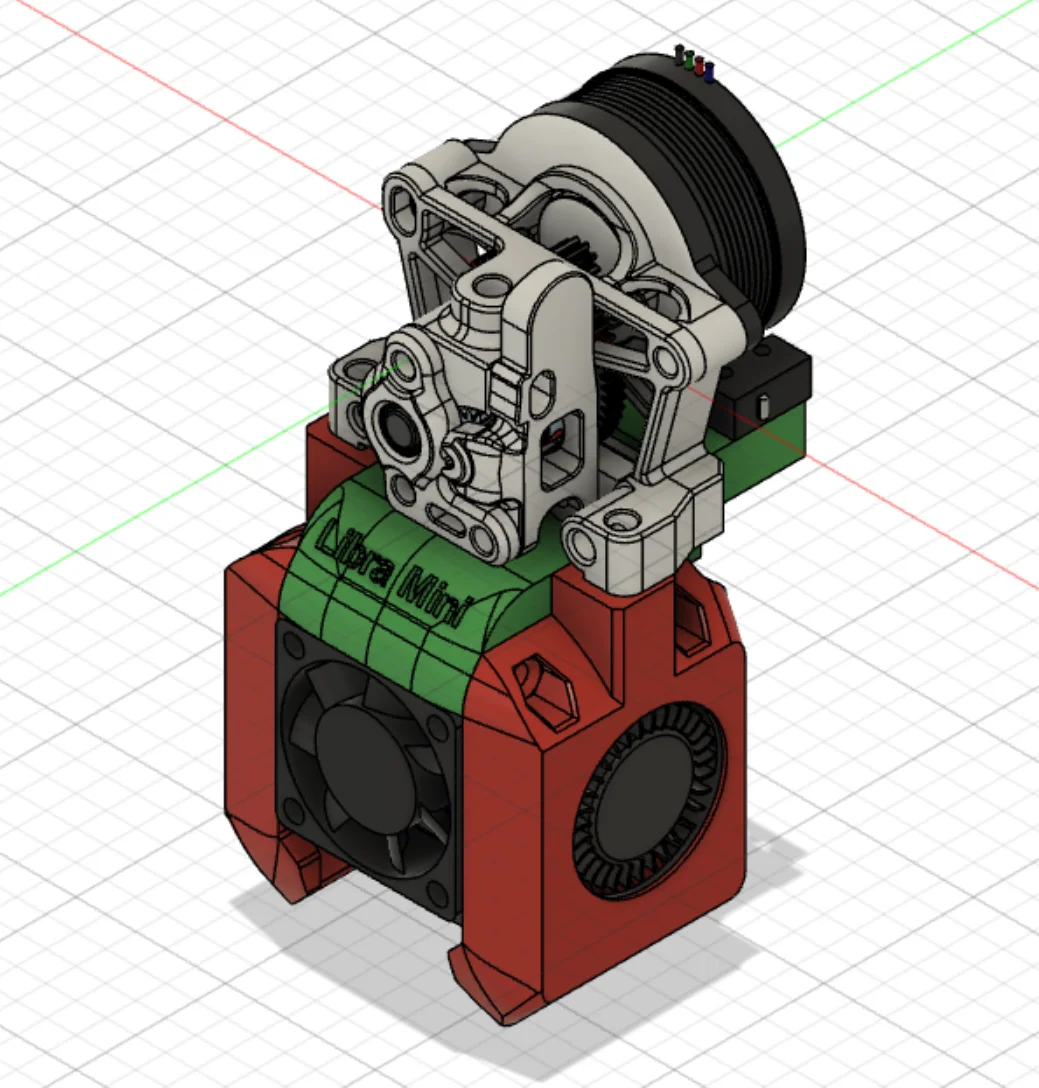

Libra mini Toolhead V0.0 by Aizu_Maker full viewable 3d model
Loading preview...
0 Likes2 DownloadsMarch 2, 2022


Community Uploads

No photos added yet, be the first to upload a photo!


0 Likes2 DownloadsMarch 2, 2022

Community Uploads

No photos added yet, be the first to upload a photo!

This is a modified V0.0 Sherpa mini tool head to mount the Libra mini extruder. I have modified it to use threaded heat inserts. BOM: 7x M3x4.2mm x 5mm threaded heat inserts. 2x M3x 24mm screws 1x M3x14mm screw original long screws and nuts 22mm PTFE tube Assembly: Insert the threaded heatserts into: Fan-1 and Fan-2 x2 heatserct Body-1 x3 heatserts - 1x to secure Body-1 and Body-2. 1x for the belt retention bock. 1x for the front fan. Body-2 x2 heatserts - 1x for the belt retention block. 1x for the front fan. Use the M3x14mm screw to attach Body-1 and Body-2. reuse the long screws and nuts to attach Fan-1 and Fan-2 to the body assembly. *** From the bottom *** Use the 2x M3x24mm screws to attch to the belt retention block. Cut and use 22mm of PTFE tube between the tool head and extruder.
