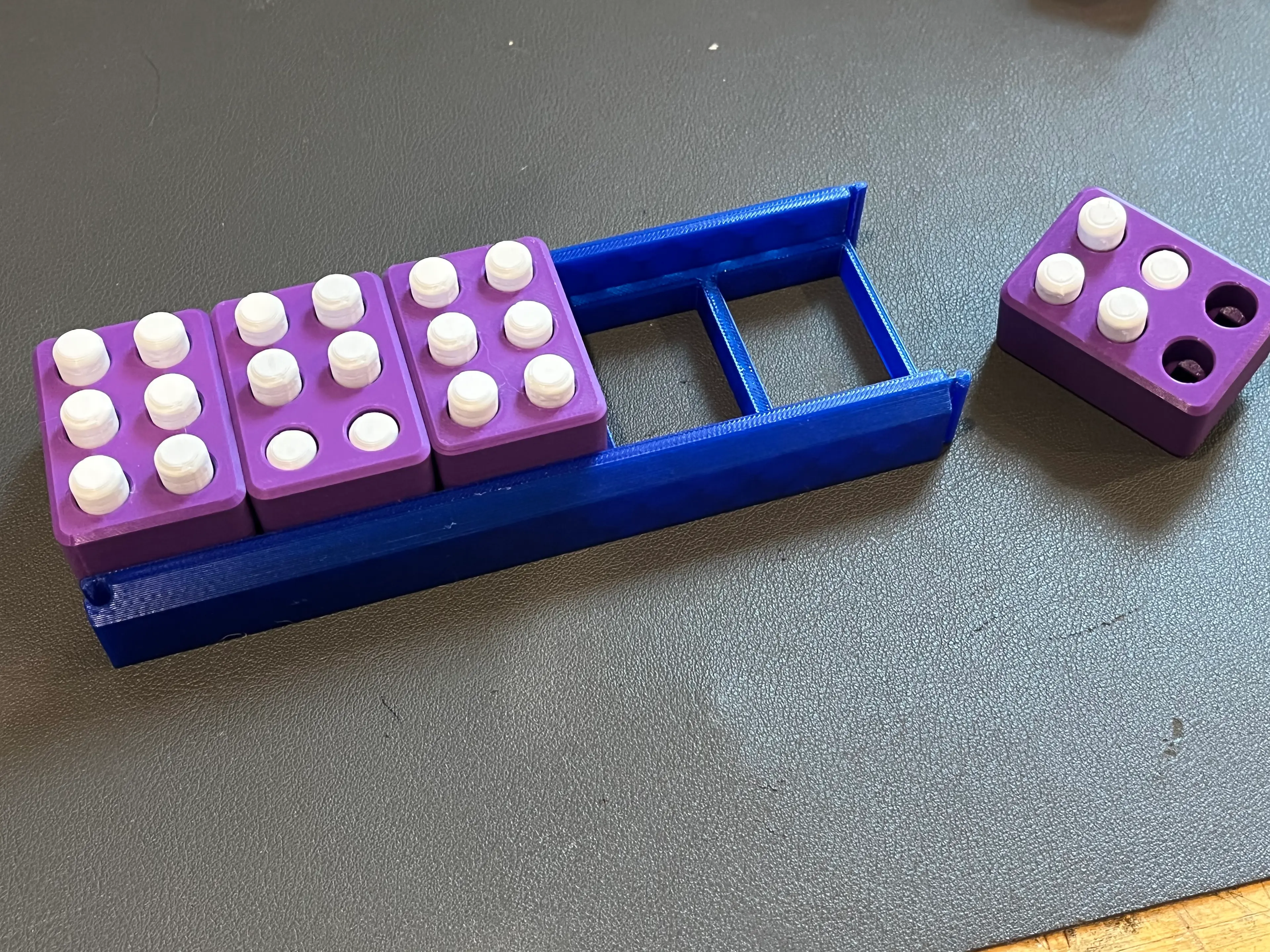

Teaching aid for learning to read and write braille with large 6mm diameter dots.
Customization
Case Size
- Single cell
- 8-cell
Case Style
- Hard Case with embedded TPU inserts
- Fully TPU Case
Button Options
- Flat
- Round
Printing
- All parts can be printed without supports
- Cases are printed upside down (walls facing up) so there is no bridging
- 92A durometer or softer TPU is recommended for all flexible parts
- Print buttons in PLA or other rigid material
- If printing the hard case on a multi-material printer, turn on “Interface Shells” so the - TPU gasket has a solid base to print on
- If printing the hard case on a single-material printer, pause the print just before the layer where the case begins to bridge. Insert the TPU gasket so that the top is entirely flush
- 2 perimeter walls is sufficient for all flexible parts, but additional perimeters may provide better results if the buttons feel too loose
Assembly
- Press fit buttons into the case.
- That's it!
Filament
You can get drastically different results depending on what filaments you use for the flexible parts of this design. This video by Filament Stories includes some recommended options.
Can I sell copies of this?
Yes! This project was shared under the Creative Commons - Public Domain license.
This license grants you permission to download, distribute, alter, print, and sell copies of this design.
This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.
