Braille Training Cell - 6MM

by
3DPrinty
Follow
Follow
Remix Model
3DPrinty
3DPrinty
Image 1 of 2
Braille Training Cell - 6MM 3d model
2D
3D
Makes
Braille Training Cell - 6MM 3d model
Braille Training Cell - 6MM 3d model
This model is restricted by licensing terms.
50 Likes100 DownloadsMarch 25, 2024
This model is restricted by licensing terms.


Teaching aid for learning to read and write braille with large 6mm diameter dots.

https://youtu.be/Z9aghYXRcNk

Customization

Case Size

  • Single cell
  • 8-cell

Case Style

  • Hard Case with embedded TPU inserts
  • Fully TPU Case

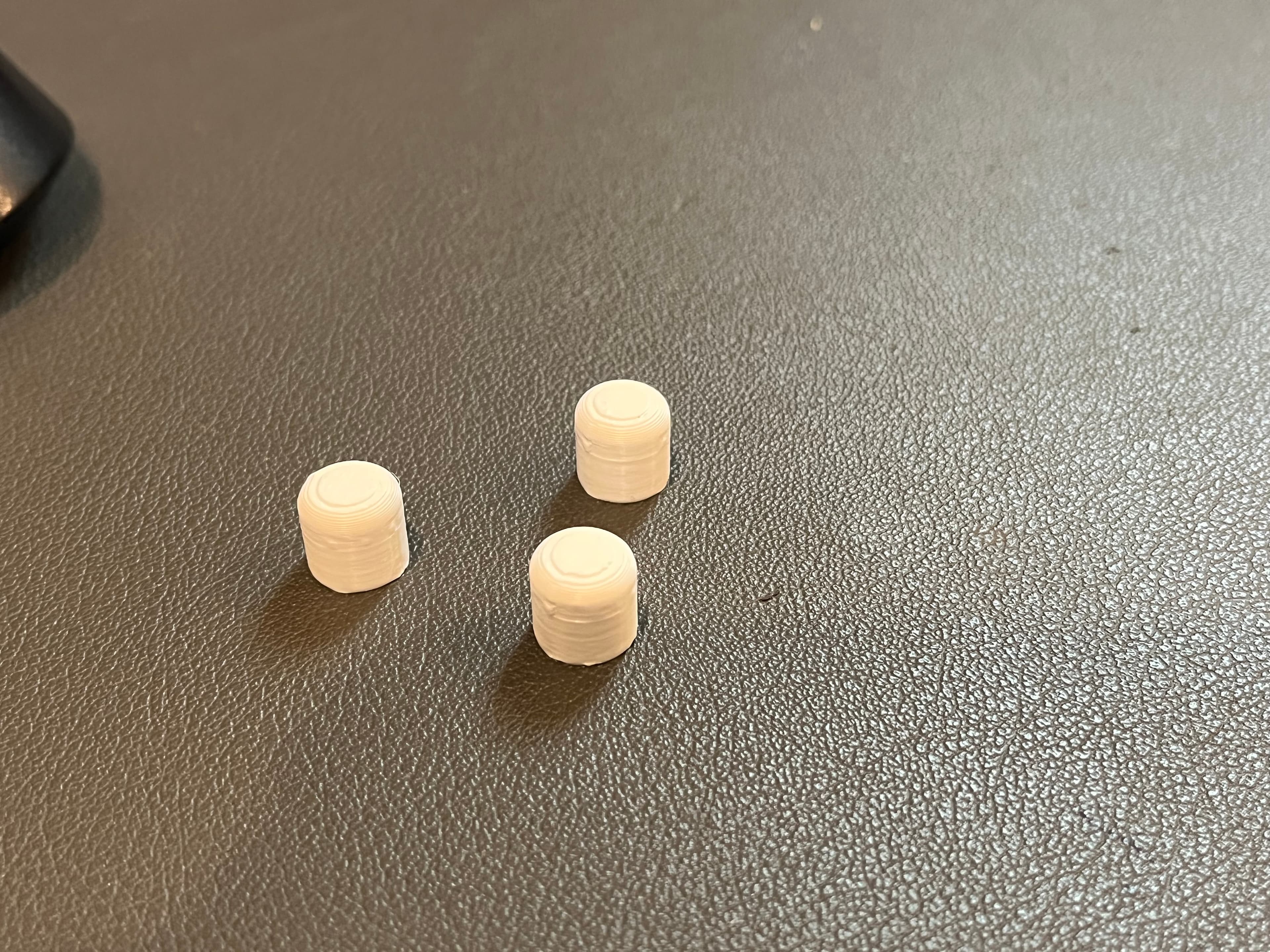

Button Options

  • Flat
  • Round

Printing

  • All parts can be printed without supports
  • Cases are printed upside down (walls facing up) so there is no bridging
  • 92A durometer or softer TPU is recommended for all flexible parts
  • Print buttons in PLA or other rigid material
  • If printing the hard case on a multi-material printer, turn on “Interface Shells” so the - TPU gasket has a solid base to print on
  • If printing the hard case on a single-material printer, pause the print just before the layer where the case begins to bridge. Insert the TPU gasket so that the top is entirely flush
  • 2 perimeter walls is sufficient for all flexible parts, but additional perimeters may provide better results if the buttons feel too loose

Assembly

  • Press fit buttons into the case.
  • That's it!

Filament

You can get drastically different results depending on what filaments you use for the flexible parts of this design. This video by Filament Stories includes some recommended options.

Can I sell copies of this?

Yes! This project was shared under the Creative Commons - Public Domain license.

This license grants you permission to download, distribute, alter, print, and sell copies of this design.

This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.
