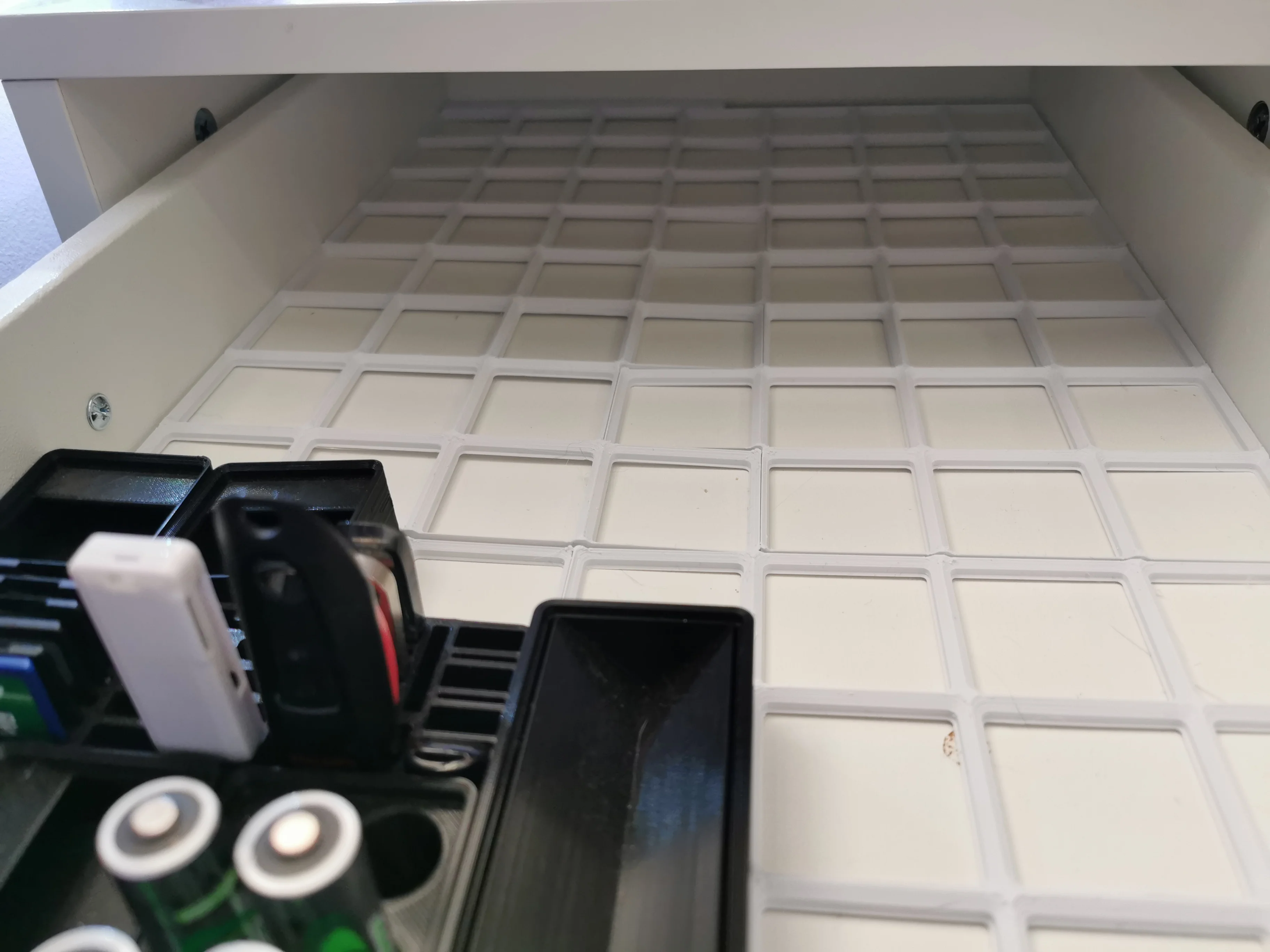

Gridfinity IKEA ALEX Drawer Split 7x12 Frame for 220x220 Buildplates - Worked perfectly. Thank you - 3d model
danielcoon82
danielcoon82
|
|
Image 3 of 3
Gridfinity IKEA ALEX Drawer Split 7x12 Frame for 220x220 Buildplates - Worked perfectly. Thank you - 3d model
2D
3D
Makes
Gridfinity IKEA ALEX Drawer Split 7x12 Frame for 220x220 Buildplates 3d model
Gridfinity IKEA ALEX Drawer Split 7x12 Frame for 220x220 Buildplates 3d model
Gridfinity IKEA ALEX Drawer Split 7x12 Frame for 220x220 Buildplates - Worked perfectly. Thank you - 3d model
198 Likes1.4K DownloadsAugust 16, 2022


WORK IN PROGRESS!

To be used with IKEA ALEX drawers!

Inspired by Pey's designs on Printables: https://www.printables.com/model/213778

Gridfinity plates of 7x12 will fit very well width wise in ALEX drawers, but don't fit on an Ender3, or smaller build plates. I split the frame into six pieces, with an additional spacer, needed to prevent the frame from sliding forward and backwards.

These files interlock somewhat with small lips on each "tooth." Print two of each corner piece and of the mid portion, they are reversible!
