Raspberry Pi Zero 2 W Case (Snap fit with optional 2050 mounting)

1.3K downloads · 5 years ago · I have been doing a bit more 3d modeling and wanted to design my own case for the Raspberry Pi 2 Zer

This model is restricted by licensing terms.

View license.

Description

I have been doing a bit more 3d modeling and wanted to design my own case for the Raspberry Pi 2 Zero. I will be using a few of these with Octopi.

The Pi will snap in place on the standoffs and the lid will also snap in place so you do not need any hardware.

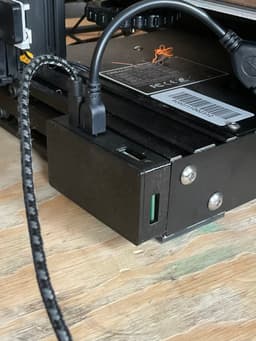

Optionally, there are holes in the bottom for 2 M3 screws if you want to mount this to any 3d printer that has aluminum extrusions.

UPDATE: I have now added a new version with the two holes length wise instead of with wise. This will allow you to mount to something like a Prusa Mini 3030 or even a 2020 frame.

Also, with certain printers the standoffs for the Pi are not large enough for a tight fit. If that is the case for you, scale to 101% and reprint. (That is what I had to do on Prusa Mini)

Discussions

dragonxmicro1 year ago

Was there a reason you chose the BY-NC-ND?

organicmonkeymotion4 years ago

Great little case, thanks. Are you planning to do one with a slot to allow access to the headers? That would be a neat variant.

anonymous3d4 years ago

Made a remix posted on thingiverse https://www.thingiverse.com/thing:5241586

AsKLP4 years ago

Thanks for the awesome work just wandering a few things a) what are you referring to when you mention a 2020 frame? b) what are you referring to when you mention a optional 2050 mounting?

Please and thanks :)
