Lil Astro Puzzle // Mini Astrolabicon

LilAstro.stl

Donut Factory Puzzle // 2x2 Twisty Marble Puzzle (24mm & 35mm inner cube)

What's better than a donut? SIX donuts!

---

There's a lot going on in the Donut Factory. Twisting, spinning, snapping... the feel is satisfying, but trying to solve this tricky puzzle might leave you frustrated!

---

**_Assembly_**

This puzzle is built around a tiny [24mm 2x2x2 puzzle cube](https://speedcubeshop.com/products/eastsheen-mini-2x2-keychain-cube?variant=40210339659889). You will have to remove the keychain part.

Print 8 copies of the included STL. No supports are required, but the overhangs may warp a bit on some printers, so you may want to include a wide brim and increase Z-retraction height for travel moves in your slicer settings.

After printing, use flush cutters to remove the brim and flat bottom.

Magnets are optional, but highly recommended since they improve the puzzle action and make assembly easier as well. You will need 48 3mm x 6mm neodymium magnets. I used E6000 adhesive to glue them into place. Each face has 2 magnets. Make sure the left holes all have the same polarity, and the right holes all have the opposite polarity. Also make sure the magnets are flush to the face. It can help to use the corner of a table or some tool to press the magnets into place. Allow the glue to dry before moving forward.

Next, glue 7 of the 8 sections onto the internal 2x2 cube. Use only enough adhesive to connect the print to the corner of a cube. If too much glue smushes out, your puzzle may not rotate!

Once the 7 parts are in place, load up the marbles. This puzzle was designed for use with these 14mm ABS no hole beads (true dimensions closer to 13.6mm). The easier way to add the marbles is to rotate individual halves 22.5 degrees so the tracks form an S-bend, so you can add all the marbles of one color (8 marbles per ring). Watching my assembly video might make this easier to understand!

After loading the 3 rings opposite of the missing piece, fill the top rings, including the final corner, and then glue that into place.

The magnets will help hold the parts together while drying, but I like using [0.25" x 4" Grifiti Silicone Bands](https://amzn.to/45QcKz6) to compress the parts as well.

Donut Factory Puzzle // 2x2x2 Twisty Marble Puzzle (24mm inner cube)

Kwiblet Puzzle

kwiblette_14mm.stl

Dastardly Dovetail Box (Small)

smallDD_Bottom.stl

Kwiblito Puzzle

kwiblito.stl

Astrolabicon Pro Classic

astrolabicon-classic.stl

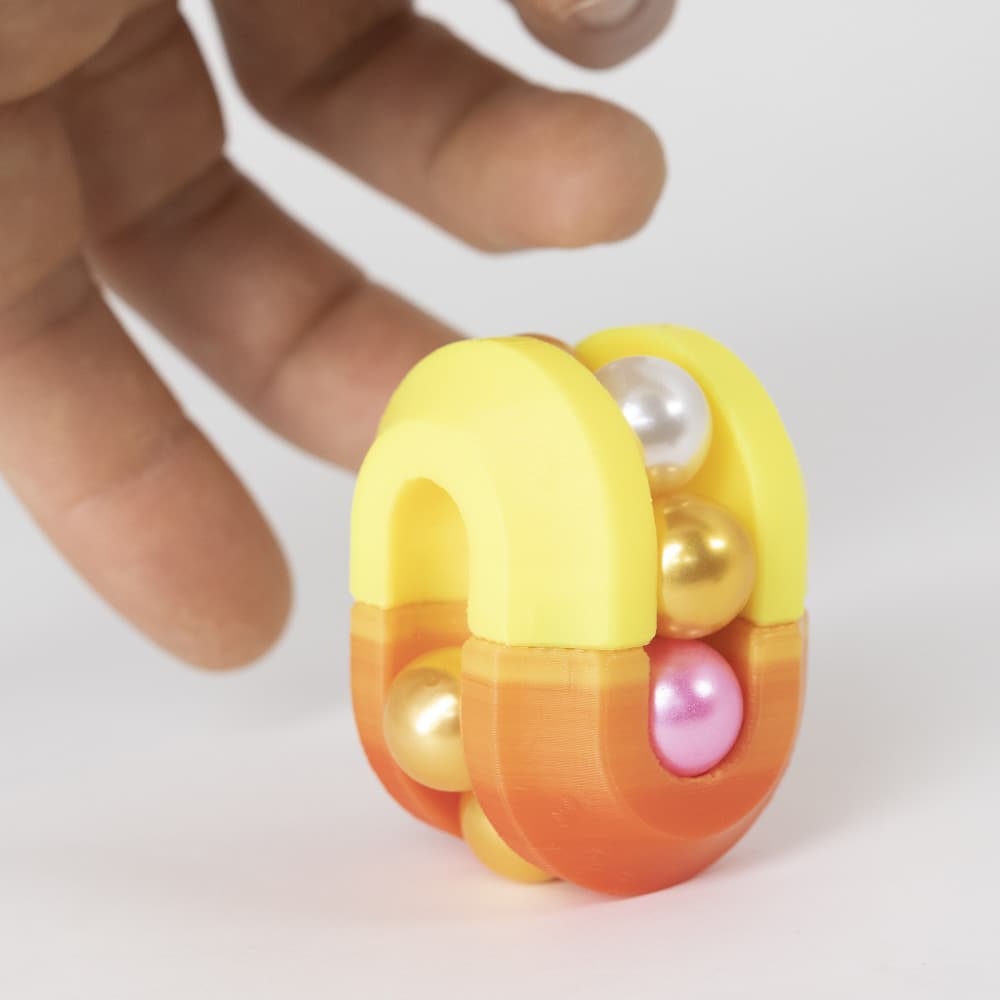

KWOB // Sloped

kwob-sloped.stl

Dastardly Dovetail Box (Large)

bigDD_Bottom.stl

the Psychlopath Puzzle

psychlopath-13-8mm-a.stl

Minimalist Bunny

Minimalist Bunny_Body_v05.stl

Marble Sorter for 14mm (9/16") Marbles

Glass marbles aren't entirely consistent, so I designed this marble track that sorts standard 9/16" marbles by .5mm diameter increments. Made to help me assemble my [Astrolabicon puzzle](https://than.gs/m/914605), but use it for whatever means you require!

Let marbles roll from left to right and they will fall through to sort themselves. You may need to slightly raise the left side to get the marbles rolling on their own.

the CHAIN puzzle // Razor

thechain-razor-v2.stl

Astrolabicon Puzzle // Ripple

astrolabicon-ripple.stl

Astrolabicon Puzzle // Orb

astrolabicon-orb.stl

Donut Factory Puzzle (Deconstructed) // 2x2 Twisty Marble Puzzle (24mm inner cube)

What's better than a donut? _SIX donuts!_

---

There's a lot going on in the Donut Factory. Twisting, spinning, snapping... the feel is satisfying, but trying to solve this tricky puzzle might leave you frustrated!

This 'Deconstructed' version is the same as the original, but with a sleek, refined exterior

---

**_Assembly_**

This puzzle is built around a tiny [24mm 2x2x2 puzzle cube](https://speedcubeshop.com/products/eastsheen-mini-2x2-keychain-cube?variant=40210339659889). You will have to remove the keychain part.

Print 8 copies of the included STL. No supports are required, but the overhangs may warp a bit on some printers, so you may want to include a wide brim and increase Z-retraction height for travel moves in your slicer settings.

After printing, use flush cutters to remove the brim and flat bottom.

Magnets are optional, but highly recommended since they improve the puzzle action and make assembly easier as well. You will need 48 3mm x 6mm neodymium magnets. I used E6000 adhesive to glue them into place. Each face has 2 magnets. Make sure the left holes all have the same polarity, and the right holes all have the opposite polarity. Also make sure the magnets are flush to the face. It can help to use the corner of a table or some tool to press the magnets into place. Allow the glue to dry before moving forward.

Next, glue 7 of the 8 sections onto the internal 2x2 cube. Use only enough adhesive to connect the print to the corner of a cube. If too much glue smushes out, your puzzle may not rotate!

Once the 7 parts are in place, load up the marbles. This puzzle was designed for use with these 14mm ABS no hole beads (true dimensions closer to 13.6mm). The easier way to add the marbles is to rotate individual halves 22.5 degrees so the tracks form an S-bend, so you can add all the marbles of one color (8 marbles per ring). Watching my assembly video might make this easier to understand!

After loading the 3 rings opposite of the missing piece, fill the top rings, including the final corner, and then glue that into place.

The magnets will help hold the parts together while drying, but I like using [0.25" x 4" Grifiti Silicone Bands](https://amzn.to/45QcKz6) to compress the parts as well.

Once the glue is dry, you can remove the bands, and give the puzzles some good twists to rub off any excess E6000 between the faces.

That's it. The Donut Factory is complete!

---

**_Sources for Non-printed Parts_**

**24mm 2x2x2 Cube**
- [Eastsheen Mini 2x2 Keychain Cube](https://speedcubeshop.com/products/eastsheen-mini-2x2-keychain-cube?variant=40210339659889)

**14mm no hole ABS beads**
- [eBay](http://bit.ly/PuzzleBeads)

**or these Chinese Checkers Beads on**
- [Amazon](https://amzn.to/3byXlsV)

**6mmx3mm Neodymium magnets**
- [eBay N52](https://ebay.to/3kMB1A4)*
- [eBay N35](https://ebay.us/iHdF18)
- [Amazon](https://amzn.to/3Qtm6f6)

*Since this puzzle uses so many magnets the N35 strength ones are sufficient. N52 might be slightly overkill and pricey

**E6000 Craft Adhesive**
- [Amazon](https://amzn.to/3OHX22J)

**Silicone Bands for Assembly**
- [0.25" x 4" Grifiti Silicone Bands](https://amzn.to/45QcKz6)

---

_Alright, get to work. These donuts aren't going to make themselves!_ Enjoy :)
