Gyroid Shoe Conceptual Design

This conceptual shoe design demonstrates how nTopology can be used to incorporate complex triply period minimal surfaces (TPMS) into CAD objects. See here for video: https://youtu.be/yAXaCHmYq3g

The basic structure of the shoe is designed parametrically in Onshape.

Three different orientations of the gyroid TPMS are incorporated into the upper, midsole and outsole using nTopology’s conformal cell maps. Thickening and blending of boundary edges are done using field driven design.


Gyroid Shoe Conceptual Design.stl

Easter Eggshell 1

Eggshell 1 Gyroid.stl

Wearable Gyroid Shoes

US8.5 EU42 Left.stl

Wrench - 3D printable tool - Editable file (Autodesk Fusion + STEP)

wrench_flowalistik.stl

Organic Egg 1

Organic Egg 1.stl

Pliers - 3D printable tool - Editable file (Autodesk Fusion + STEP)

pliers_flowalistik_part1.stl

Double Gyroid Vase

A decorative double gyroid vase.

Prints without supports

Minimal Surface Fruit Bowl

Minimal Surface Fruit Bowl.stl

Dual Colour Modular Mushroom Caps (Surfaces)

Cap Surface 1 single colour.stl

Gyroid Sculpture #1

Gyroid Sculpture 1.stl

Serpentes nTopologus Gyroidicus

This “Serpentes nTopologus Gyroidicus” is part of a series of three articulating snakes demonstrating various ways that nTopology can be used to design unique topology within complex designs. It incorporates the gyroid TPMS into the body of the snake.

See here for video: https://youtu.be/z7fLPr0367s

These topology snakes use a unique print-in-place ovoid joint designed to maximize available volume and surface area for other design elements.

This joint type is stronger than the interlocking double ring joints used in many articulated designs, so this design is more suitable for use as a fidget or children’s toy.

These snakes are 72cm in length but will print on a 220mm x 220mm build plate.

Like a “ball and socket” joint, the oval-shaped ovoid from one segment is held in place by a similarly shaped socket in the neighbouring segment. Varying the relative dimensions of the ovoid and socket allows for precise control of the movement between each segment. In this design, lateral side-to-side movement is maximized, but rotation and up/down movement is slightly restricted. This more accurately mimics the “tone” and movement patterns of a real snake.

You may get some small adhesions between segments. Simply apply a bit of force to move the joint the first time, and it will be fine after that.


See here for video of similar textured snakes: https://youtu.be/8fIhzqsQP_k

See here for stable downloads of textured snakes:
Bubble Boa: https://thangs.com/mythangs/file/62591
Voronoi Viper: https://thangs.com/mythangs/file/62593
Knurled Nightcrawler: https://thangs.com/mythangs/file/62592


Malfunctioning Teapot and Teacup

Malfunctioning Teapot.stl

Dual Colour Modular Mushroom Caps (Stochastic)

Organic Egg 3

Organic Egg 3.stl

Organic Egg 2

Organic Egg 2.stl

Five Piece Gyroid Flatware Set

Butter Knife Gyroid.stl

Basic Gyroid Fidget Spinners

gyroid spinner base keychain.stl

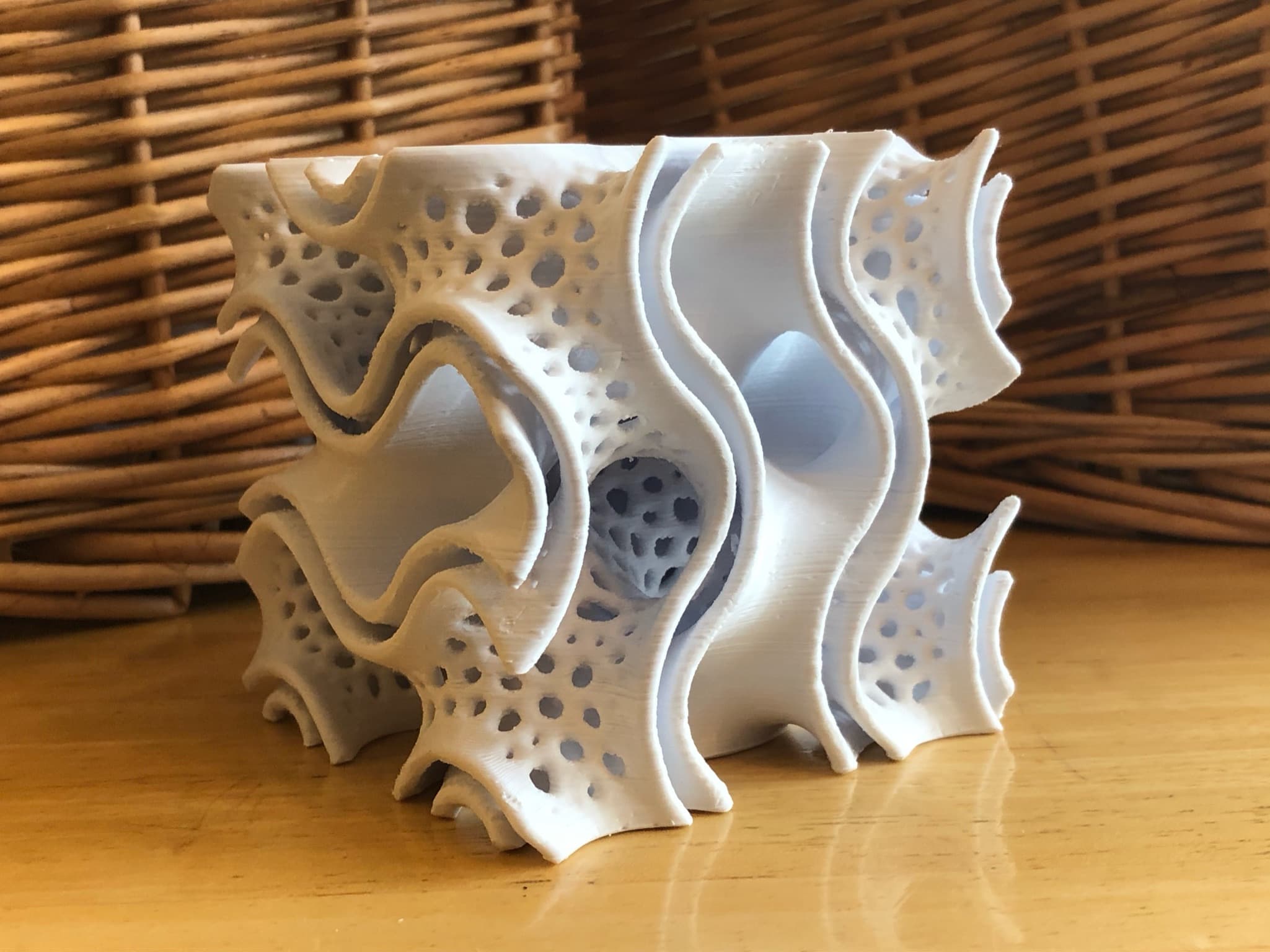

Gyroid Sculpture #2

Gyroid Sculpture 2.stl

3DPI Trophy Submission – 120 Cell

3DPI Trophy 120 Cell with Gyroid 1.stl

Cherry Bowl 2

Life is a bowl of cherries. Cherries not included.

See here for video: https://youtu.be/X4ALo5EFvtU

These files can be scaled up to hold larger objects.

See here for Cherry Bowl 1: https://social.thangs.com/m/200277
