Helix Test Cubev2.stl

Easy to print and it's the best way to check your printer

Calibration Fool

Looking for an April Fool’s Day post? Print and post to social media… be sure to tag (and blame!) all your favourite 3D printer and filament brands. Use hashtag #calibrationfool
See here for video: https://youtube.com/shorts/ii4bMlS8C14


Illusion Cube

Interesting conversation starter decoration.

All parts are designed so they can be printed without supports.

Blade Runner Ennis House Plant Pot

Ennistile_planter.stl

Blade Runner Ennis House Cube

Blade Runner Ennis House Cube. Scale to size how you want. 25% and lower loses detail. Print on a 45 degree angle on an edge for best results.

a ball inside a cube.stl

Moving ball inside a cube. Fun to play with.

XYZ Cube Box

XYZ Box.stl

Rounded XYZ Cube

XYZ Cube

Tri-Squircle

Tri-Squircle.stl

0.8 mm Flow Test

Designed to test the flow rate of 3D printers. All the walls are 0.8 mm wide.

Triple Twist Cube (Stochastic)

Stochastic 50mm Cube 1.stl

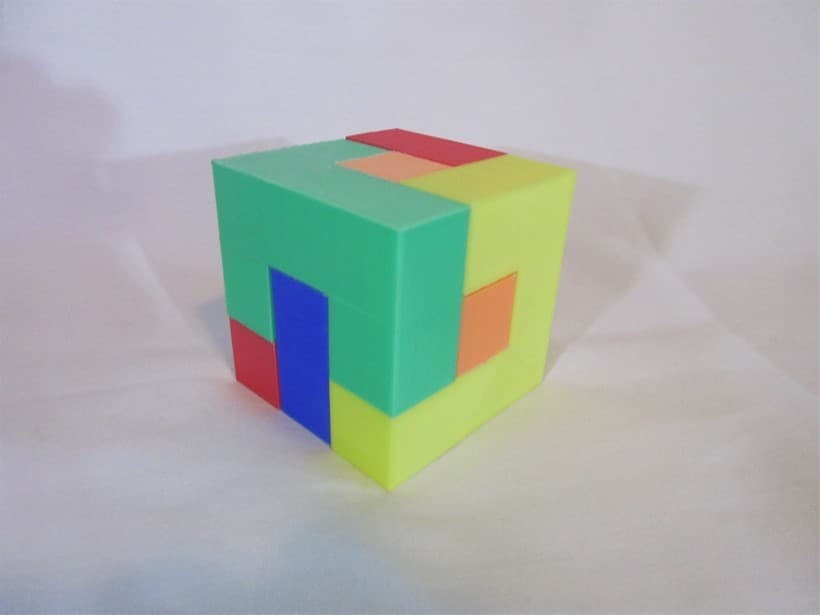

Puzzle Cube

XYZ Calibration Test - Vase Mode

Quick 10 minute print - 0.3 m of filament

Don't waste your precious time and filament printing a so called “calibration cube”!

This quick print provides clues for all the important features and settings:

Extrusion width
E-steps / rotation distance (X, Y, Z)
Bridging
Cooling
Overhangs
Speed / accelleration
First layer / bed adhesion
Retraction (stringing test, seam test)
Preassure advance / linear advance
Print Settings
1 perimeter
0.2 mm layer hight
3 bottom layers
Disable “Ensure vertical shell thickness” (PrusaSlicer)
No Infill, top layers, brim or supports

**Troubleshooting**
https://www.reddit.com/r/3Dprinting/wiki/troubleshootingandcalibration

Some quick tipps:

_**Extrusion width**_
Check if the thickness of one of the outside walls at the top matches the setting in your silcer
**_E-steps / rotation distance (X, Y, Z)_**
If the outside dimensions are not 20 mm but way off, correct the settings for the affected axis
**_Bridging / cooling_**
If the bridging perimeters in the top center are drooping/sagging, check cooling an bridging settings in your slicer
45° overhangs
If the perimeters in this section are drooping/sagging, check the part cooling and cooling settings in your slicer
**_Speed / accelleration_**
ringing, bulged corners - you may want to reduce speed and/or accelleration (also see Preassure advance / linear advance)
**_First layer / bed adhesion_**
If there are problems with the print adhering to the bed, check if
- the bed is level and parallel to the x-axis
- the bed is clean - no dirt or grease
- the bed temperature is correct
If the print is wider at the bottom (first few layers) than at the top, check your z-offset and first layer settings
**_Retraction (stringing test)_**
If you experience stringing, check your retraction and cooling settings
**_Preassure advance / linear advance_**
If large seam gaps or bulged corners appear, consider tuning your printer firmware settings for preassure advance (Marlin) / linear advance (Klipper)

XYZ Calibration Test

Hinged Gift Box (print in place)  *print upside down for best print*

Print in Place, gift box w/ wrapping & hinges.

ENjoy!

=]

_**you may have an easier time printing this upside down, with the bow tie in upright position as opposed to how it is currently being displayed.**_
