3D model description

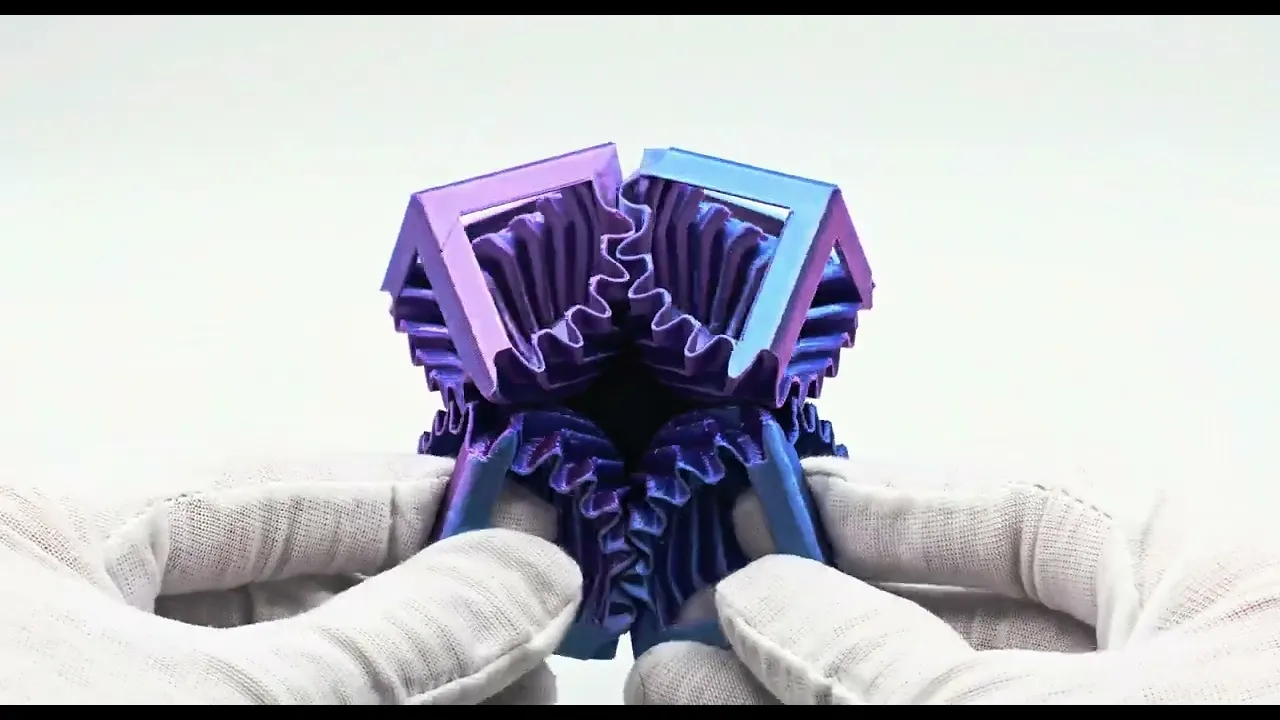

Simple to print and highly addictive, this beautiful fidget can be assembled in approximately 1 minute and requires no glue or additional parts to build

Featuring a brand new design previously unseen in past gear fidgets, this new gear fidget utilizes a brand new internal design making it simpler and quicker to build then ever before

Comes with appropriate STL files and optimised 3MF files to easily print your own, simply choose your colors and print in any filament

Can easily be printed on any FDM printer with an AMS however single color printers can print also easily in regular PLA (an AMS unit is required for silk filaments only)

Check it out here now on youtube - https://youtu.be/RriN1ewgIiw

3D printing settings
Download now, files includes 2x STL files and 3x 3mf files each containing 9 pieces to print (9 pieces creates one full spinner - 1x centre piece, 4x left pieces and 4x right pieces)

Can be printed in silk & regular PLA, an AMS unit is required for SILK as the joining section and centre piece must be printed in regular PLA (adds only a tiny amount of time to print and filament to purge)

You can print the outer section in any color of filament you desire but ensure to use regular PLA in the centre and on the inside of the gears (the first color printed touching the plate in regular PLA)

If printing from the stl files included please use the following and ensure to print 1 centre, and 4x of gear piece 1 and 4x of gear piece 2

To print and standard supports to the gears with the option touching build plate only enabled

Z-hop is required for the top section of the gears to massively boost print quality

Arachne walls enabled for improved quality

Gyroid infill enabled for better bed adhesion

Low speed printing is recommended and essential for silk (silk approx. 60mms)

The provided 3mf files are all optimised and ready for printing, simply select your colors and print (if changing the colors please double check z-hop remains enabled)

Once printed to assemble simply insert the gear pieces into the centre (the orientation is important but very simple, simply add a gear piece one using the push fit, and then a gear piece 2 next to the gear piece 1 and then another 2 next to the one etc... ensuring none of the same numbered gear pieces are next to one another)

When inserting the gear pieces i recommend not pushing from the 3 support struts but instead from the centre on the opposite wall of the insert to minimalize potential damage

I recommend using a small amount of grease in the centres holes but not essential

Once all 8 pieces and been inserted your new fidget is ready

Have fun & any issues I'll be sure to help as best as possible

Bare Gear Fidget Spinner Cube

CENTRE PIECE SOLID.stl

The Tsugite Cube has reached unprecedented extremities with this 4x4 version of the confounding puzzle cube series.

Join all 31 pieces in the correct order and orientation to create a continuous loop in the form of a solid 4x4 cube. The Kawai Tsugite joint connects in 3 different orientations, so this isn't your average packing puzzle!

As a helpful hint, no like colors will touch when printed in 6 colors... Consider that a part of the puzzle since it's already difficult enough, but if you feel like an even more extreme challenge, you can print it all in one color.

This download also includes a flashy Special Edition 4x4 Stand, along with the default cube stand. There is also an STL of the entire assembled puzzle if you need help solving, or check out my full [Solution Video on YouTube](https://youtu.be/yZwMSwlxIy0).

---

**_Printing Guidelines_**

Print at 0.16mm layer height with 3 shells and 0% infill, 5 top and 5 bottom solid layers. No supports required! The puzzle parts are divided into 6 groups, where no like colors will be touching for the solved puzzle. You can split the models into parts within your slicer if you wish to print/color separately, or need to rearrange parts for whatever reason.

The SE_Stand is a somewhat difficult print without supports. I used fuzzy skin with 0.2mm thickness and point distance to hide any wobble artifacts near the top and as a general aesthetic. I printed with 4 shells, 0 top layers, and 15% lightning infill. You may also need a brim or minimal supports to improve printability. The basic stand is much easier to print!

4x4 Tsugite Cube Puzzle

4x4_White.stl

Hey,

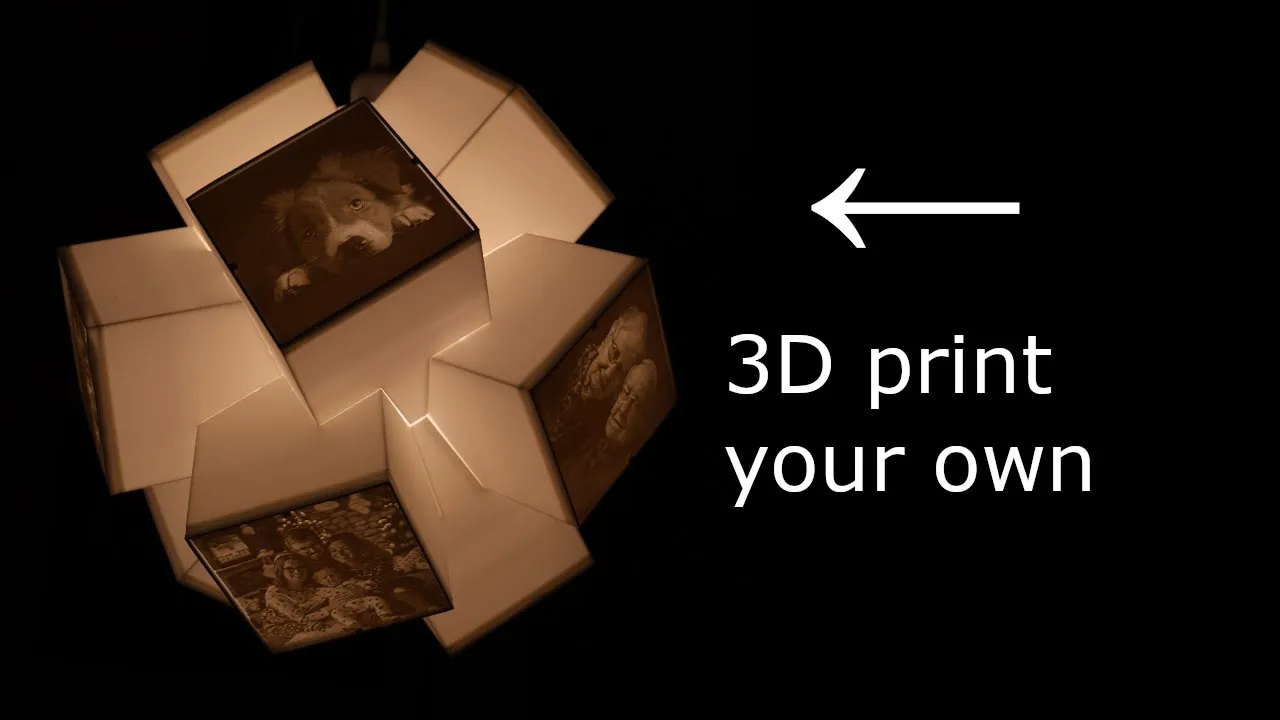

for this Lamp, you will need to print out these pieces:
9 normal pieces
3 final Pieces
and the Socket Holder
You can find instructions on how to put this together here:
https://youtu.be/UHommFJOAyg?si=9JyOUwFSKHgGb4aW

Print settings:
Print as oriented. You can use standard settings but make sure to use 10 Walls. The Pieces should be printed solid with no gaps inside. 10 Walls accomplishes that.
The Socket mount prints with standard settings.
Nothing needs support.

You can use these Parts:
UPDATE:
I made a universal Socket holder. You are not dependent on these Parts anymore.
You can find that in the .zip folder.
More info here:[ https://youtu.be/gKZ7UQk_apU](https://youtu.be/gKZ7UQk_apU)
Just make sure to get it inside BEFORE you put in the last Piece.
If you can still get the parts:

EU Socket:
https://ebay.us/PRcPvm

EU Bulb:
https://ebay.us/yB4Acp

US Socket:
https://www.amazon.com/dp/B07ZW13PJX?psc=1&ref=ppx_yo2ov_dt_b_product_details

US Bulb:
https://www.amazon.com/dp/B0CRHDRT5J?ref=ppx_yo2ov_dt_b_product_details&th=1

Print Settings:
No supports. I print at least 10 Walls.

Happy Printing! Hope you like it.
