Noob Knob Version 3 upgraded to thermal insert 3d model

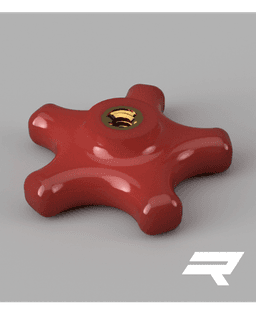

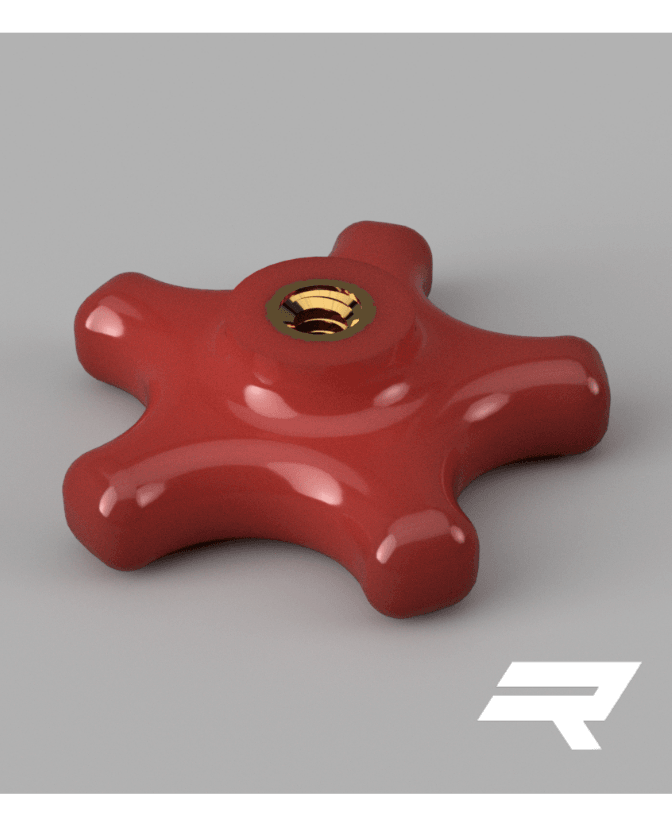

Noob Knob Version 3 upgraded to thermal insert - Front of knob with insert - 3d model

Noob Knob Version 3 upgraded to thermal insert - Getting the Thermal Insert ready - 3d model

Noob Knob Version 3 upgraded to thermal insert - Heating the Insert - 3d model

Noob Knob Version 3 upgraded to thermal insert - Back of knob with insert - 3d model

Noob Knob Version 3 upgraded to thermal insert

17 downloads · 3 years ago · The Noob Knob was in need of a major update. My first one was designed almost 10 years ago. It's sti

This model is restricted by licensing terms.

View license.

Description

The Noob Knob was in need of a major update. My first one was designed almost 10 years ago. It's still a 50mm diameter 5 knob handle, with 15.2mm overall depth. This also is still threaded for 1/4" x 20. This new version will now work with thermal set threaded inserts. The inserts are available at Mcmaster Carr https://www.mcmaster.com/93365A162/

These work well being printed in your favorite thermal plastics, from PLA to Nylon. This is a print in place, no supports needed model. I would recommend having several perimeter walls to up the strength and feel of the knob.
