💡 Light Bearer System – LED Diffuser Remix for Underware 2.0

Transform your workspace into a luminous, modular masterpiece with the Light Bearer System — a remix of HandsOnKathy’s Underware 2.0 that turns cable rails into LED-lit visual highlights.

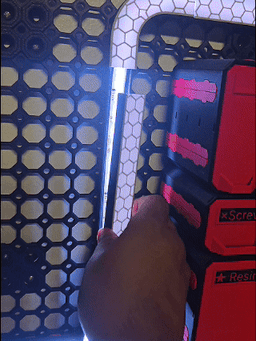

This system repurposes the top faceplates of the cable management setup into functional light diffusers, designed for COB LED strips. The faceplates feature a glowing hexagonal pattern achieved through a two-color filament swap. Fully compatible with Multiboard.

---

⚙️ System Components

The Light Bearer System includes:

• 1x1, 1x3, 1x5, 1x7, 1x9 faceplate & channel sets
• C-small and C-large curved faceplate & channel sets
• Diagonal faceplate & channel
• L-channel (corner) faceplate & channel
• Threaded Snap Connectors (compatible with Underware 2.0)

💡 All channels include baseplate holes for direct mounting onto drywall using self-tapping or anchor screws — Multiboard is optional.

---

🧱 How to Print the Light Diffuser

To achieve the glowing hex-grid effect:

1. Print the first 2 layers in white filament
2. Change filament to black (or contrasting base color) for the rest
3. Print channels and connectors in black PLA
   • (Optional: Use red or another accent color for connectors)
4. Insert COB LED strip into the channel
5. Snap the faceplate into place

---

🔧 Recommended Tools & Materials

These are affiliate links – if you purchase through them, I may earn a small commission at no extra cost to you. Thanks for supporting my work!

🧵 Filament Recommendations

• 🧱 Polymaker PLA PRO
• 🧱 Elegoo PLA
• 🧱 ANYCUBIC PLA Plus

🔋 COB LED Strip & Accessories

• 💡 MIWISE RGB Smart IC COB LED Strip Light – 32.8ft
• 🧩 MIWISE 12mm Connectors Kit – 3-Pin RGB COB Strip

---

This remix stays true to the modularity of Underware 2.0, but adds a whole new dimension — light. Whether you're framing a workspace, backlighting a logo, or adding ambient glow, the Light Bearer System is a powerful and flexible solution.

---

🧩 Based On:

HandsOnKathy’s Underware 2.0 Cable Management System
