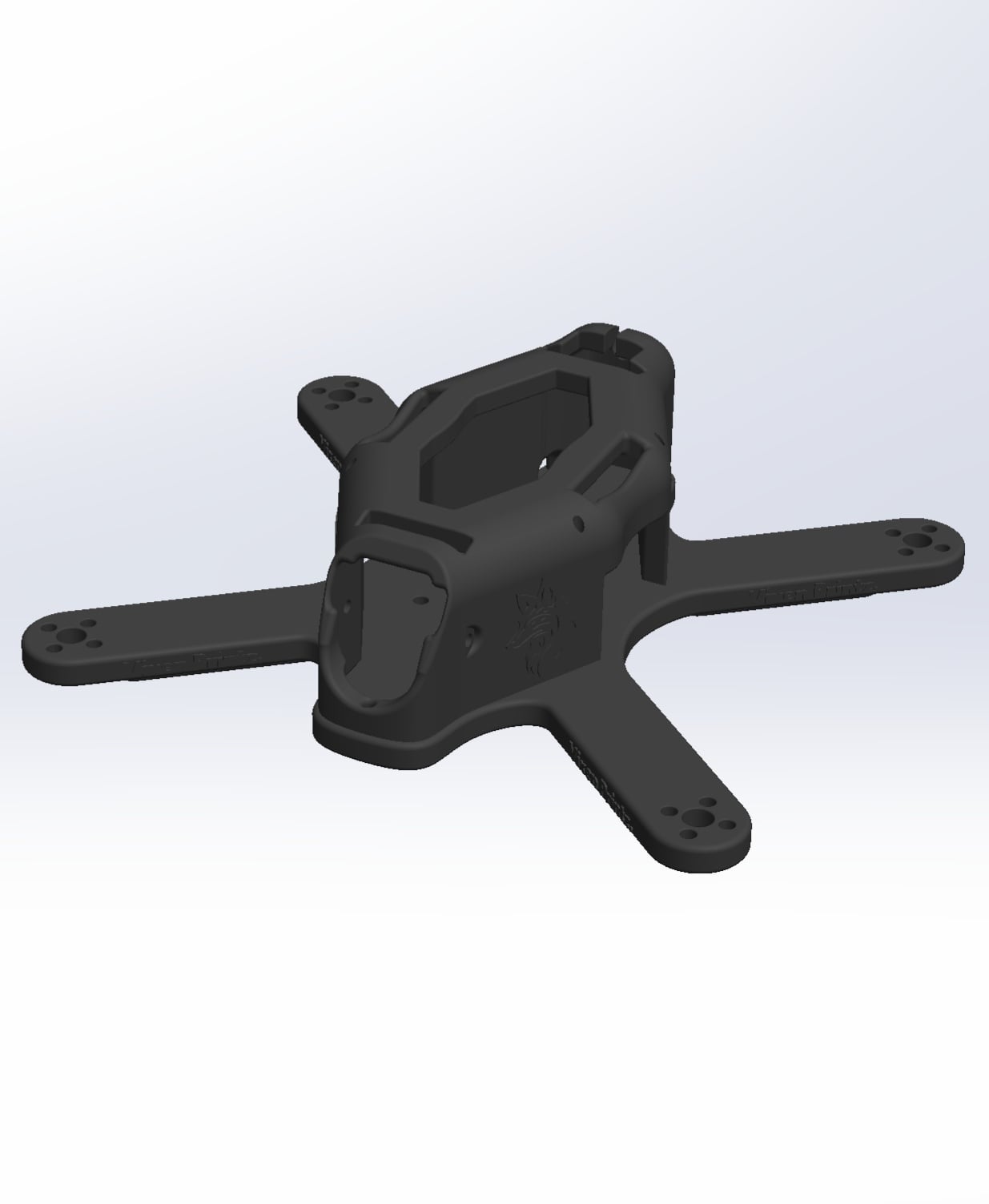

3-Inch FPV Drone (Analog, 20x20 Stack)

55 downloads · 1 year ago · **This model features the following parts:** 1. Bottom _(PET-CF Recommended)_ 2. Top _(PET-CF Recomm

Description

This model features the following parts:

Bottom (PET-CF Recommended)
Top (PET-CF Recommended)

Other non-3D printed components include:

Flight Controller, Electronic Speed Controller, Video Transmitter: Rush FPV Rush Mini 20x20 Stack/Combo (F7 Core / 30A Matrix ESC / 800mW VTX)
VTX Antenna: Rush FPV Cherry 5.8GHz 90 Deg. MMCX Antenna (RHCP)
Receiver: TBS Crossfire Nano RX
Battery: Tattu R-Line 850mAh 4S
Motor: iFlight XING 1504 3900KV
Propellor: EMAX Avan Mini 3x2.4x3 Tri-Blade 3" Prop
FPV Camera: Foxeer nano toothless FPV camera
M2 Screws
Racewire - RGB RACELITEWIRE MINI LED (Optional)
Battery Strap

Disclaimer: This product is designed for hobby and/or commercial use only. Users are responsible for ensuring compliance with all applicable local laws, regulations, and guidelines before using this product. Any misuse, improper handling, or use of this product in violation of local regulations is solely the responsibility of the user. The manufacturer and seller disclaim any liability for damages, injuries, or legal consequences resulting from improper use or non-compliance. By purchasing and using this product, you acknowledge and agree to these terms.

Tags:

Community Makes (1)

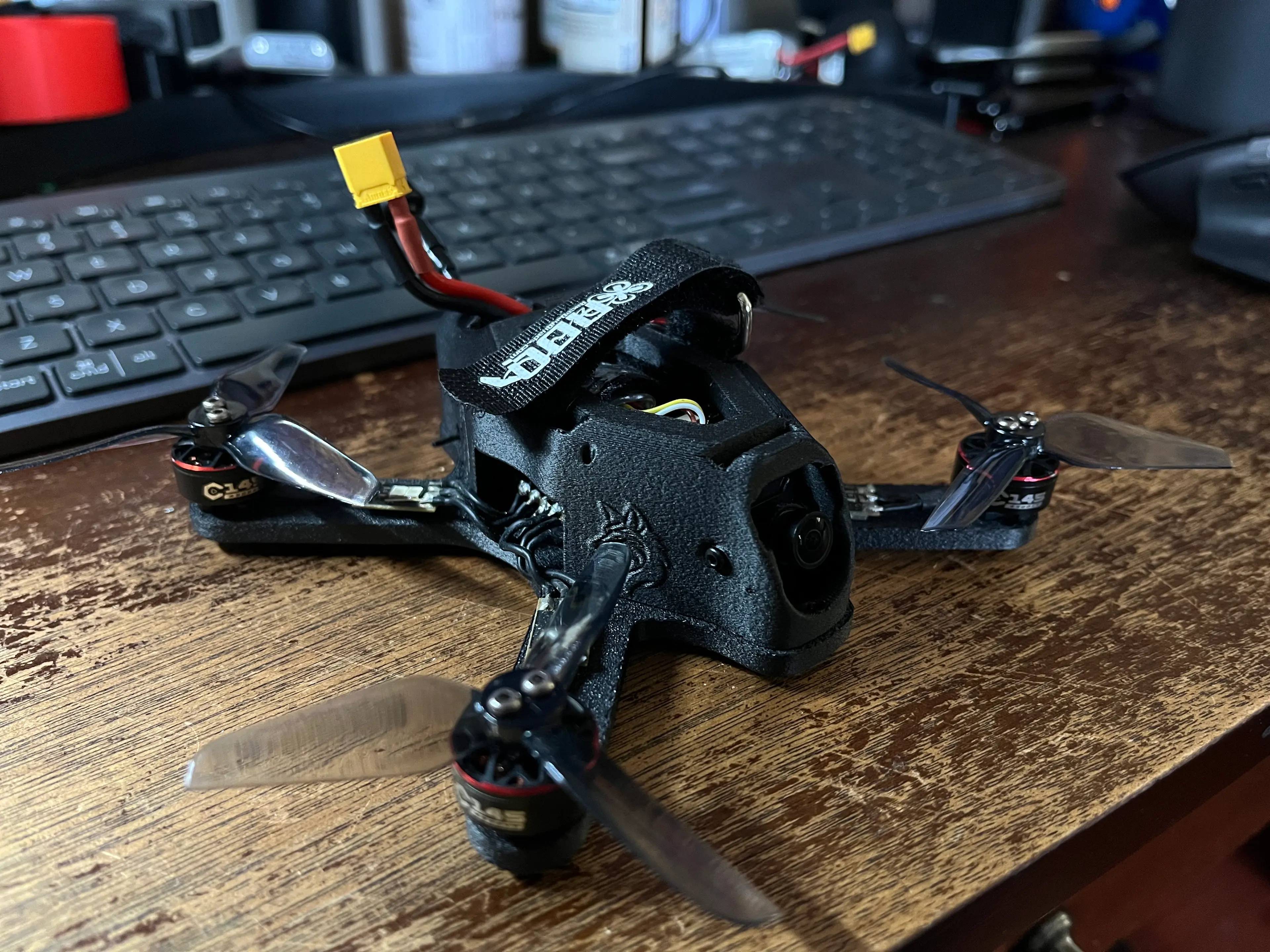

Printed on a Qidi Plus 4
Bottom plate Pet-Cf
Canopy PPa-Cf (just because I wanted to try it out)

Running a SpeedBee 405 mini
Walksnail 1s VTX (had to print a 25x25 adapter out of PC to mount it. Probably going to switch to HdZero race V3 to make the electronics cleaner)
AxisFlying 1405.5 4600 Kv motors...

Any chance we can get a set TPU armguards, and mounting for a 25x25 FC? Overall Great model and can't wait to fly it (it's raining right now).

Community Makes (1)

Discussions

formysnz1 year ago

Printed on a Qidi Plus 4 Bottom plate Pet-Cf Canopy PPa-Cf (just because I wanted to try it out) Running a SpeedBee 405 mini Walksnail 1s VTX (had to print a 25x25 adapter out of PC to mount it. Probably going to switch to HdZero race V3 to make the electronics cleaner) AxisFlying 1405.5 4600 Kv motors... Any chance we can get a set TPU armguards, and mounting for a 25x25 FC? Overall Great model and can't wait to fly it (it's raining right now).

MaterialPET-CF

Layer height0.2 mm

Infill density100 %

SupportsTree

BrimNo

Vixen Printz.1 year ago

Awesome make, very clean print (settings dialed in) and looks that you added fuzzy skin too 😎. Will be making a v2.0 of this frame soon and will involve TPU guards, as well as different mounting sizes. Stay tuned!
