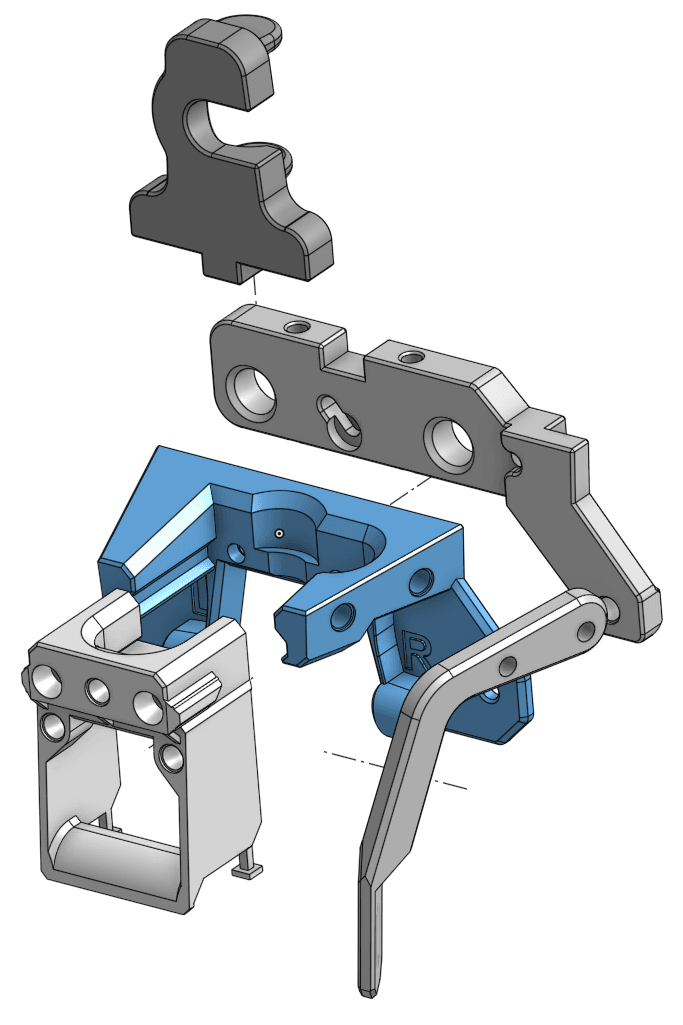

This is a Remix of Boothy's Manta MK2 duct system for the Ender 3. I updated some parts to fit better with my setup, as I have a drag chain on my hotend, and wanted to add a connector for the chain.

Summary of changes:

  • Rear_Mount_Plate - Replaced heatset insert holes with screw holes, added indexing cutout for drag chain mount, changed sacrificial layers on some of the screw holes.
  • Stock_Clamp__Fan_Shroud - Thinner sacrificial layer.
  • Universal_Duct_Base - Lessened an overhang near cable cutout on right
  • Support_Arm_Bowden_RH - Deleted wire support.
  • Drag_Chain_Mount - new
  • BLTouch Center Mount with ADXL - added mount for ADXL345 sensor

Only parts with changes are uploaded, see Boothy's original for other part.

© CC-BY-SA
