Toothbrush Cap

I was looking for a simple toothbrush cover for my son's toothbrush, but those I found were either far more engineered than we needed or too small. (Why this child sized toothbrush is wider than normal... who can say).
I did find something close to what I was looking for here https://www.thingiverse.com/thing:4615041 but it was a wireframe mesh and I don't know how to remix that, so I ended up designing one similar but with the differences I needed.

Extraction Pipe Window Holder

A fitting to fix my extraction pipe to my window, allowing me to:
- keep the window ajar for air
- blow air down so that it is less likely to come back in
- keep the window closed enough that the cats still can't get out
- print without needing internal support

25 to 40 expansion

This is another model I put together while building up a solution similar to https://www.printables.com/model/146367. I was not able to find the 40mm pipe required and so needed to make a 25mm pipe that I had on hand, fit without the spools losing height in the box.

The half moon shape, when sitting with the opening upward, allows a 25mm pipe to side in a harness designed for a 40mm diameter pipe, while still meeting the same highest point.

Printing 2 at the same time:
- Layer height: 0.2mm
- Infill density: 10%
- Print time: 0h41m
- Total filament used: 3.035m

Extraction Pipe Fitting

This is potentially quite specific to a Weedo M2 (and potentially Weedo F150) 3D printer. There is a fan which extracts ait from the enclosed printer through a filter, but I wanted to have more control of where the output went. I therefore put this convert together which wraps around  an 80cm fan outlet (and its filter cover which pushes the internal dimensions to 84cm) and then converts to a round threaded section to allow air conditioning piping or equivalent to be attached.

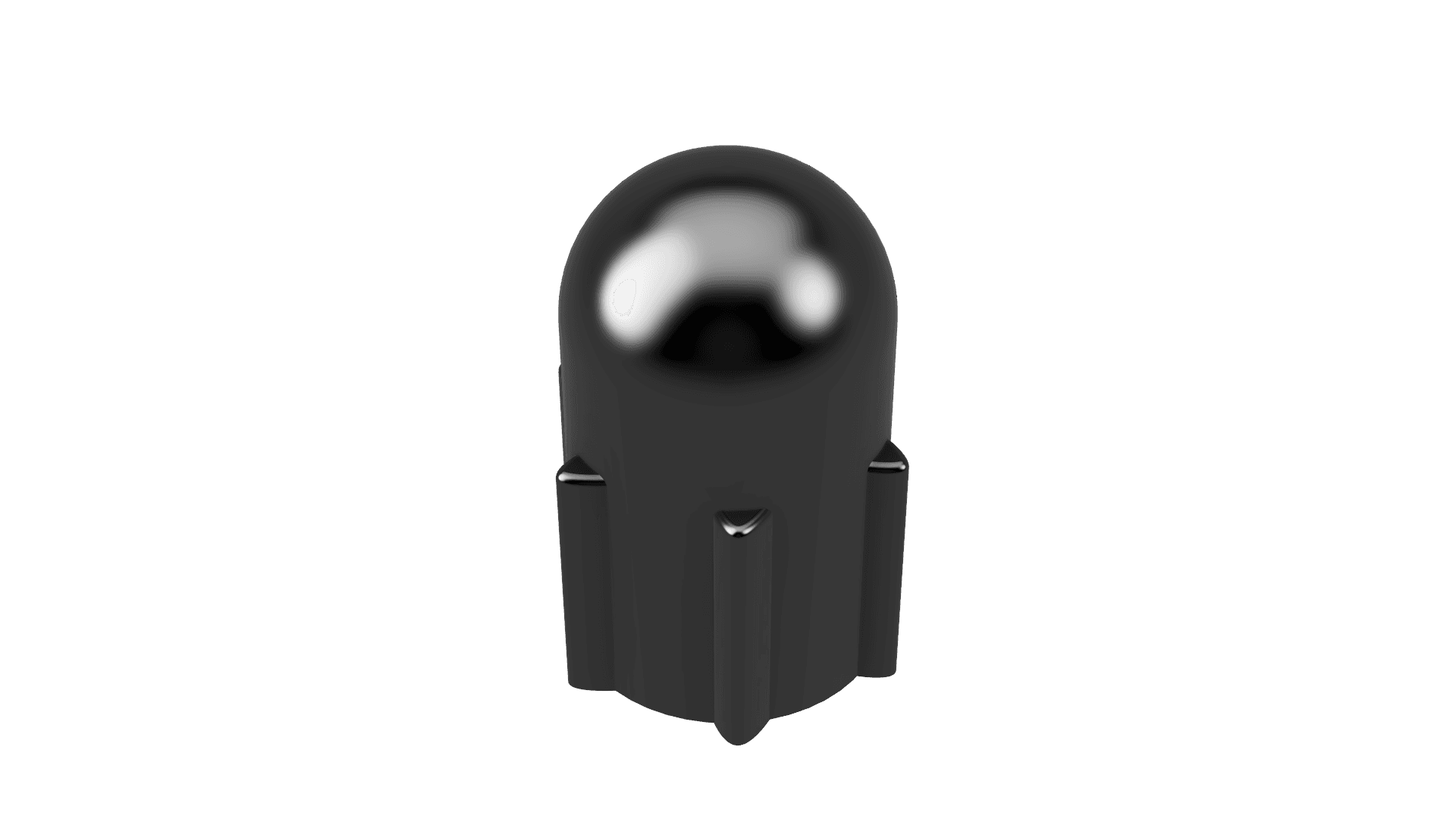

PC4-M6 Threaded Cap

I wanted to build a dry box but spend less time printing the interfaces... One of the solutions I put together was to use a PC4-M6 attached to a small section of TPFE tube and this cap to seal the end. Of course this is a waste of a PC4-M6 and so a temporary solution if you have a proper bowden setup. But if like me, you had these to spare, it does work a charm until I decide on/design/print a better solution.

I started 3D printing in August 2023... Needing to patch up an old printer off eBay I started my journey learning as much as possible! I am loving the challenge so far and I look forward to what I can do for my 3-year-old son as I gain experience as well as plan to share my creations as time goes on!
