BTT Manta MP8 motherboard case

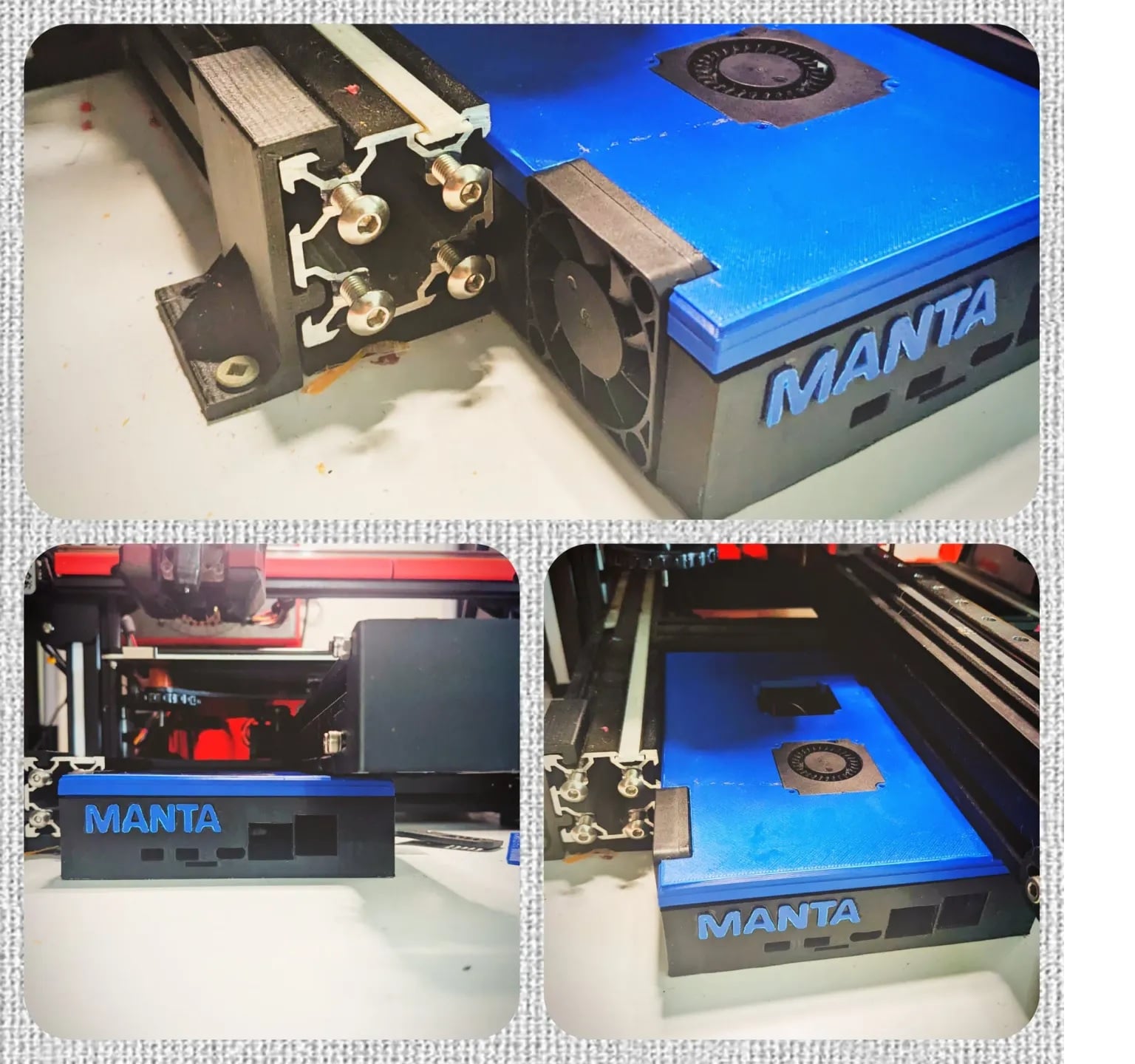

Designed this model to hold and support the BigTreeTech Manta M8P board
uses the 4040 extrusion and T-nuts to secure it to the sides and back but will utilize the existing holes for cable management.
It will be slightly tight to install it's still manageable just need to really utilize cable management.
I added the file to cults and support would be awesome to help me develop more models for similar items, or buy me a coffee if you like my work to help cover the costs of materials (physical boards and filament to prototype) and development time
Testing is still being conducted to add extra features and fixes to airflow and cable management This is still considered a work in progress, the design will have minor tweaks and adjustments as the community let's me know. And testing of my own board is done! I appreciate all that help me with the suggestions and reviews so we can get a model out that meets everyone's requirements
*** Revisions ***
Aug 18
raised the lid heights on stepper side to 0.6mm thickness and lowered the bottom floor 1mm split the lid body into two magnetic (3x6) to clip together and allow easier installation of the steppers and heatsinks added bevels to input ports for easier access moved top fans closer to side will add airflow caps to pull air from side Added fan ducting caps
