Mini NES Pi Control Front Panel Brace

by
dfoles
Follow
Follow
Remix Model
D
dfoles
Image 1 of 4
Mini NES Pi Control Front Panel Brace 3d model
2D
3D
Makes
Mini NES Pi Control Front Panel Brace 3d model
Mini NES Pi Control Front Panel Brace 3d model
Mini NES Pi Control Front Panel Brace 3d model
Mini NES Pi Control Front Panel Brace 3d model
This model is restricted by licensing terms.
0 Likes1 DownloadsJanuary 10, 2023
This model is restricted by licensing terms.


Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:2298206.

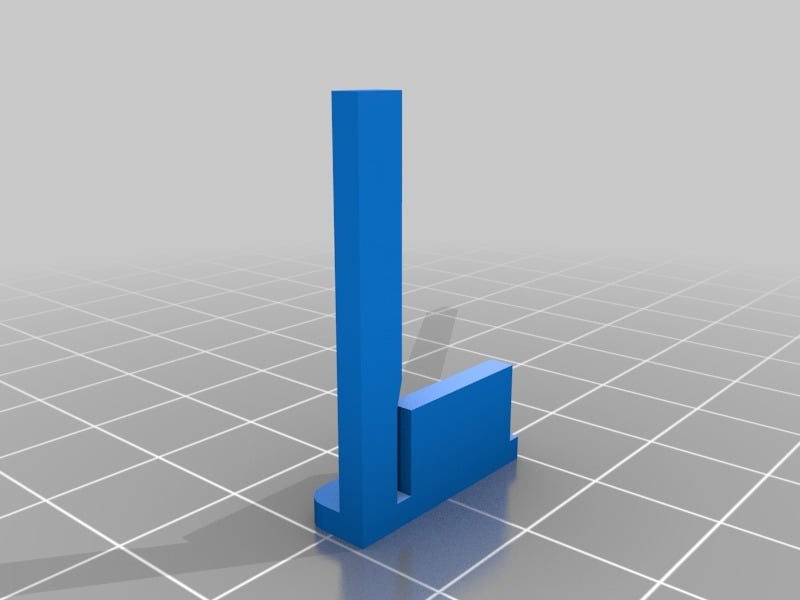

This was designed for the Mini NES Raspberry Pi Case by daftmike. This was made to be used in conjunction with Evan Wright and Jared Kirchgatter's Pi Control Boards. It plugs into the top right USB port of the Pi3. This helps brace the Front Panel when you push in the Power/Reset button.

I recommend 25% infill.

EDIT: I shortened the USB part so you should be able to insert/remove it now without having to remove the Pi 3 from it's case.
