#Gridfinity Toy Brick Adapter

by

bigbrisco

Follow
Follow
Like
#Gridfinity Toy Brick Adapter by bigbrisco full viewable 3d model
Loading preview...
34 Likes115 DownloadsApril 15, 2022


Community Uploads

No photos added yet, be the first to upload a photo!


34 Likes115 DownloadsApril 15, 2022

Community Uploads

No photos added yet, be the first to upload a photo!

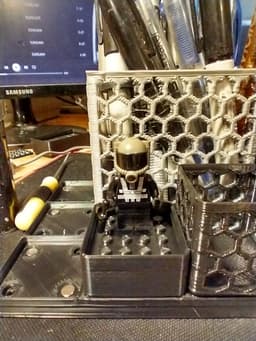

This item is for use with the #GridFinity system by Zach Freedman: https://www.youtube.com/watch?v=ra_9zU-mnl8 A 1 wide by 1 deep by 1/2 unit high "Generic Building Brick" adapter plate for Gridfinity. Proudly display all your special brand-agnostic little guys in the midst of all your gubbins and paraphernalia. This was printed with an 0.4 nozzle, I'm not sure it is advisable to print with larger ones due to the extreme precision required for brick-and-stud blocks to correctly seat. Printing studs like these is a difficult task, and no 3d printers will have the same extrusion widths. Included are .STL files with the studs set to the proper 4.8mm size and also the 5.05(!) I had to export for my under extruding machine to make something snap-able. Also included is the Fusion 360 archive, edit the sketch Studs and change the top left stud diameter and the rest will follow as they are an array. A 1x2 test plate archive is also included so you can dial in the stud size without wasting filament. Results may vary, [Blacktron](https://brickipedia.fandom.com/wiki/Blacktron_Astronaut) Pilot not included.
