Candle Holder Series by Arcforms

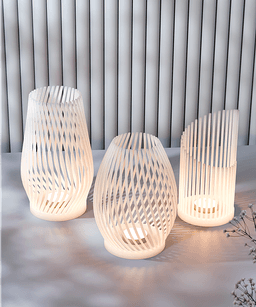

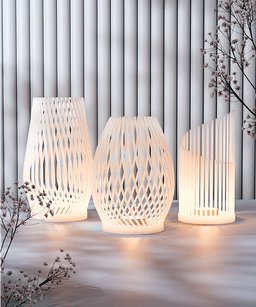

This is our second set of candle holders, crafted in collaboration with Vector Beam, specialists in laser-cutting files. Together, we have created a unique and elegant collection that seamlessly blends form and function. The V3 set includes three distinct designs, each tailored to accommodate up to 40mm diameter flameless tea candles. For precise measurements, please refer to the dimensions section.

We're just getting started! This collection will soon expand with more distinctive designs, aiming to offer a complete and cohesive set of candle holders perfect for 3D printing. – Jurgien, Arcforms Designer

If you need a Commercial License, consider subscribing to our Thangs Membership for exclusive access to premium designs and our growing catalog of 3D-printed home design products.

Important Safety Warning: Do not use real candles with these candle holders. All filament materials are flammable and can pose a fire hazard. These designs are intended exclusively for use with flameless candles.

If you choose to use real candles, you do so entirely at your own risk, and we cannot be held responsible for any damage or injury caused. Always prioritize safety.

Dimensions

The files are fully scalable, allowing you to adjust them to any size you prefer. The four available sizes, along with their corresponding candle area dimensions, are as follows:

Model 1: Height: 184 mm (7.25 in) Width: 110 mm (4.35 in) Candle Size: 40mm Filament:90-110gr (Depending on infill density)

Model 2: Height: 158 mm (6.2 in) Width: 117 mm (4.6 in) Candle Size: 40mm Filament:85-100gr (Depending on infill density) Enable Support

Model 3: Height: 167 mm (6.5 in) Width: 86 mm (3.4 in) Candle Size: 40mm Filament: 55-75gr (Depending on infill density)

Recommended Settings

•Layer Height: 0.16-0.28mm •Wall Thickness: 0.6-1mm 2-3 Wall Lines More is better to make stronger and more premium final product. You can even go wild and make it solid for even higher quality final product. •Bottom Layers: 2-3 •Infill: 15-25% Grid •Print Speed: 40-60mm/s •Nozzle Size: 0.2-0.4mm •Supports: You will need to use support

Materials

Any material will work just fine but we recommend using White filament shown below:

We recommend (**Polymaker PLA PRO Filament 1.75mm, Tough & High Rigidity White PLA Filament 1.75mm 1kg Cardboard Spool - PolyLite PLA PRO 3D Printer Filament 1.75mm, Print with Most 3D Printers Using (3D Filament)) PLA: Ideal for its ease of use and smooth finish. PETG: If you prefer higher durability and heat resistance.

Print with Most 3D Printers Using (3D Filament))
