Litophane Night Light

This model is restricted by licensing terms.

Litophane Night Light.

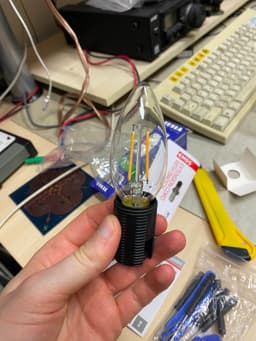

Just 3 parts needed: light bulb socket, power cord with switch. LED bulb. I used E14 bulb socket.

Printable in PLA if you use max 3w LED light. I tested it with 8w LED and it's got pretty hot.

Use m3 screws and nuts. Holes for screws are tight, you can assemble everything with just screws. I used 20mm m3.

Litophane: Width: 100mm Height: 128mm Frame thickness 4mm Frame depth 3mm I used: https://tool.itslitho.com/
