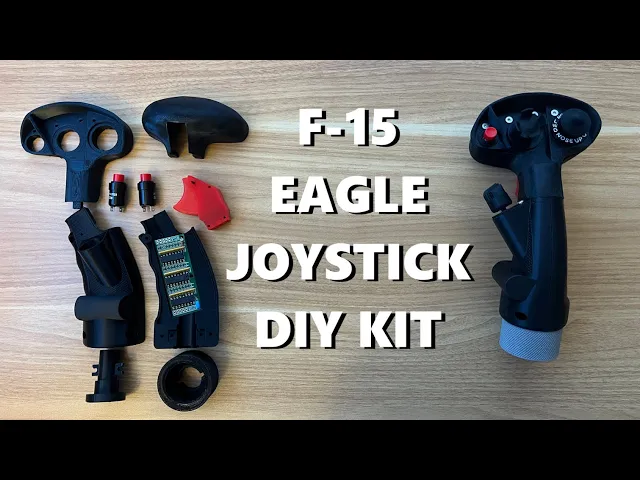

This is a scale re-creation of an F-15 Joystick Grip based on a lidar scan. This grip is ready to be combined with the electronics mentioned below to form a fully functional simulator joystick grip. For more details see this video: https://youtu.be/Fe2dHtFJDu8

Compatible with Thrustmaster/Virpil/VKB Bases (VKB only with adapter and some soldering)

Assembly video coming soon!

Full BOM Below: 3x CD4021 Shift Register

3x 9-Pin 10k Resistor Networks

1x 10k Through Hole Resistor

1x 100nF Through Hole Ceramic Capacitor

1x 5-Pin Mini Din Male Connector

Thru-hole 5-way Navigation switch (https://www.adafruit.com/product/504)

2x Momentary Push Button Switch AC 250V 2A/120V 5A NO/NC SPDT - 8121SHZGE style button with red caps - 3-Pin

2x Mini Micro Limit Switch 5A 125 250V AC SPDT 1NO 1NC Momentary Switch Snap Action Button Type 3 Pins (no lever)

1x Torsion Spring 5mm OD or Compression spring OD 8mm (can use both for double the return force)

13x M3 Screws Total: 4x M3x20 9x M3x16

Trigger instructions here: https://www.thingiverse.com/thing:6289942

Debolestis PCB Available Here: https://oshpark.com/shared_projects/OTJrlwA4

ALPS Switches Alps RKJXM1015004

Per ALPS PCB: Quantity 4x: CUS05S40,H3F Schottky Diode Quantity 7x: RNCP0805FTD1K00 Chip Resistor - Surface Mount 1 kOmh Quantity 2x: MMBT3904-TP Surface Mounted Transistor Quantity 1 Alps RKJXM1015004

My PCBWay referral link: https://pcbway.com/g/jwr15D

Assorted Dupont Wires 20 AWG
