FreeCAD Gridfinity Parametric Storage Bin

by
Stu142
Follow
Follow
Remix Model
Stu142
Stu142
Image 1 of 2

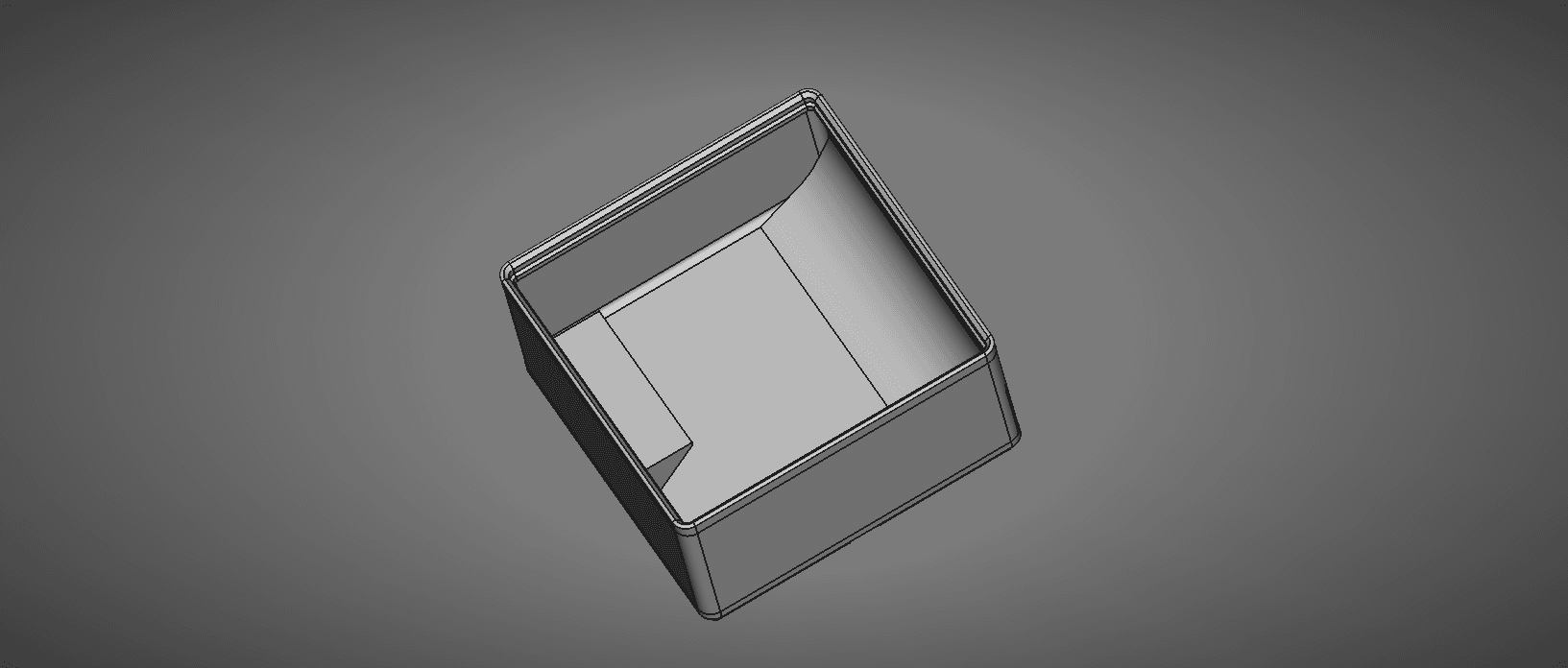

FreeCAD Gridfinity Parametric Storage Bin 3d model
2D
3D
Makes
FreeCAD Gridfinity Parametric Storage Bin 3d model
FreeCAD Gridfinity Parametric Storage Bin 3d model
This model is restricted by licensing terms.
11 Likes72 DownloadsDecember 18, 2023
This model is restricted by licensing terms.


All my models are free, but please consider supporting me if you find my work useful: http://paypal.me/Stu142. Much appreciated if you do!

Update: Check out my new FreeCAD Gridfinity Workbench for many more options and features: https://github.com/Stu142/FreeCAD-Gridfinity-Workbench

The file allows the ability to edit the size of the bin and features very easily such as:

length and width screw and magnet holes on or off stacking lip on or off wall thickness height You can find a guide to editing the FreeCAD file here: https://github.com/Stu142/Freecad-Gridfinity-dimension-variable-editing

Gridfinity Documentation to understand the dimensions of the model can be found here: https://stu142.github.io/Gridfinity-Documentation/

Similar to Hardware Used (Affiliate Links):

6mm x 2mm Magnets https://geni.us/X9t1M (Amazon)

M3 Screw Set : https://geni.us/gfP7w (Amazon)

M3 Heat Set Insert: https://geni.us/Svm0Sl (Amazon)

Update V2 - 2023/11/18

added ability to turn on and off: magnet holes screw holes sequential bridging stacking lip added sequential bridging for bottom holes so no support is needed
