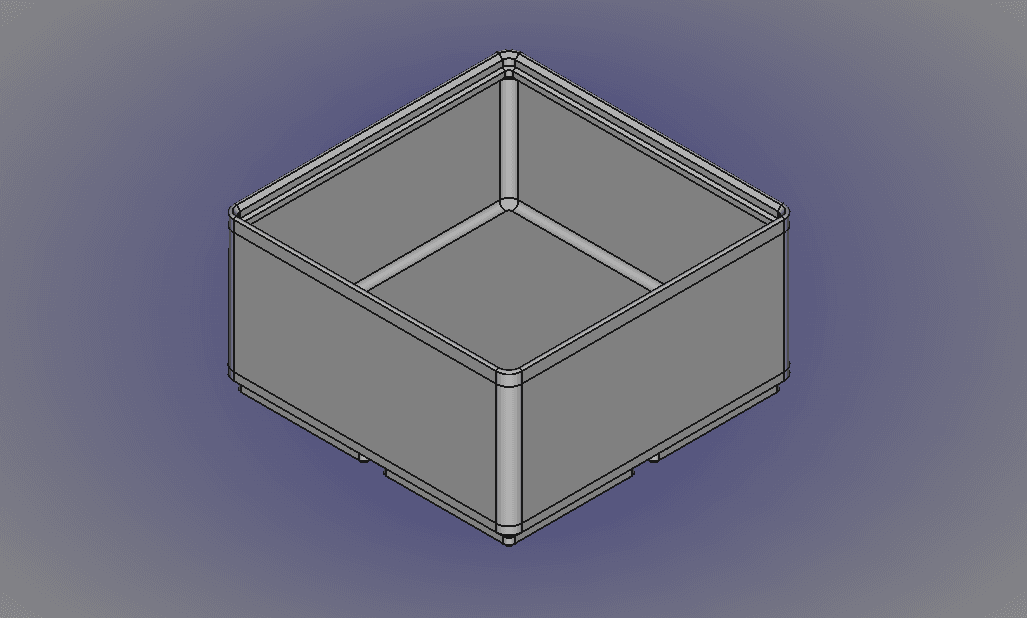

FreeCAD Gridfinity Parametric Simple Storage Bin-Body.stl 3d model
2D
3D
Makes
FreeCAD Gridfinity Parametric Simple Storage Bin-Body.stl 3d model
FreeCAD Gridfinity Parametric Simple Storage Bin-Body.stl 3d model
FreeCAD Gridfinity Parametric Simple Storage Bin-Body.stl 3d model
This model is restricted by licensing terms.
7 Likes87 DownloadsDecember 4, 2023
This model is restricted by licensing terms.


All my models are free, but please consider supporting me if you find my work useful: http://paypal.me/Stu142. Much appreciated if you do!

Update: Check out my new FreeCAD Gridfinity Workbench for many more options and features: https://github.com/Stu142/FreeCAD-Gridfinity-Workbench

The file allows the ability to edit the size of the bin and features very easily via the spreadsheet, such as:

  • length and width
  • screw and magnet holes on or off
  • stacking lip on or off
  • wall thickness
  • height
  • scoop on or off

You can find a guide to editing the FreeCAD file here: https://github.com/Stu142/Freecad-Gridfinity-dimension-variable-editing

Gridfinity Documentation to understand the dimensions of the model can be found Here: https://stu142.github.io/Gridfinity-Documentation/

Similar to Hardware Used (Affiliate Links):

6mm x 2mm Magnets (Amazon)

M3 Screw Set : (Amazon)

M3 Heat Set Insert: (Amazon)

Update V2- 2023/12/17

  • Fixed scoop cut constraint error
