Multiboard Mixing Cup Dispenser

This model is restricted by licensing terms.Ā

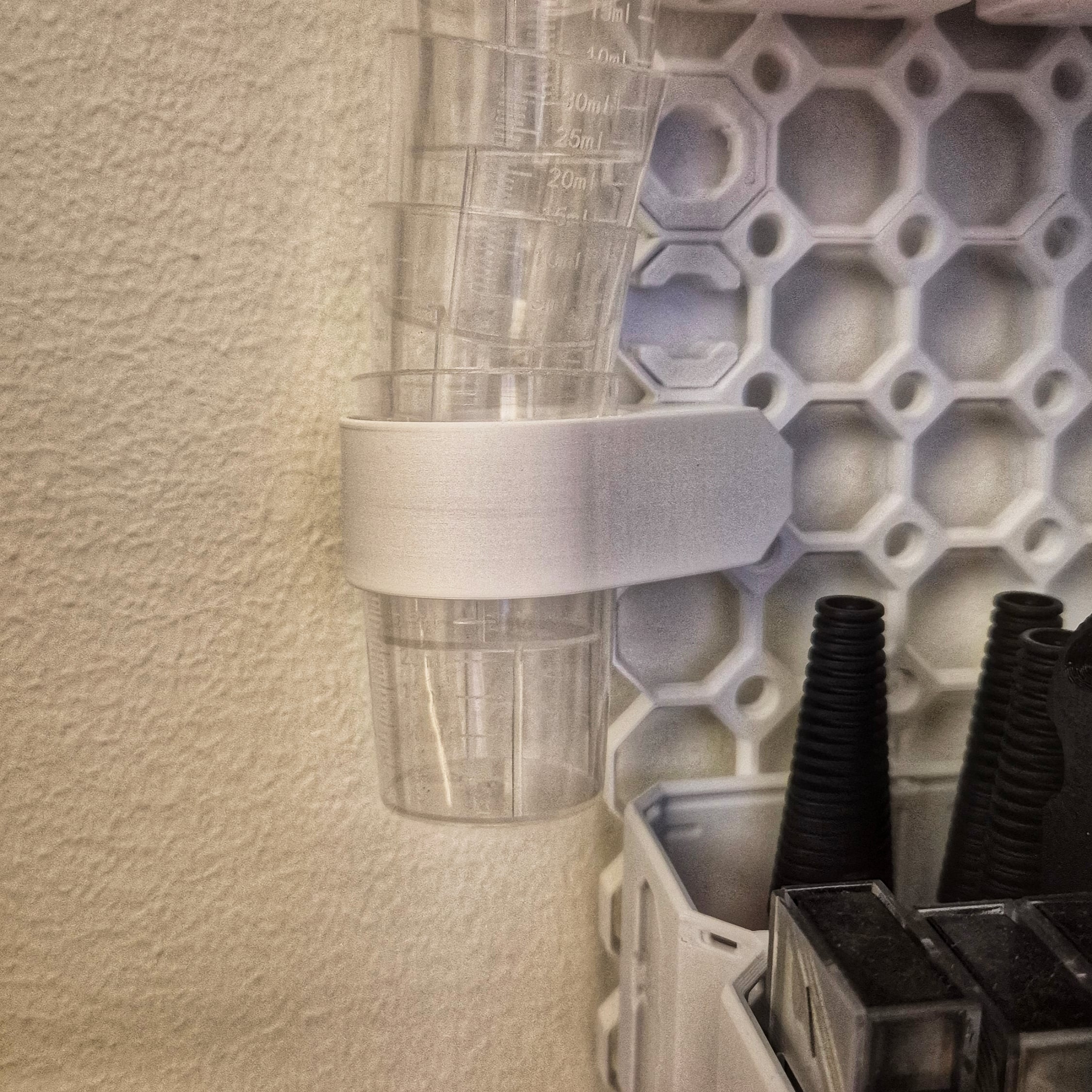

A Multiboard Mixing Cup Dispenser for the cups in this Amazon kit. The kit contains three pieces:

  • The Dispenser
  • A Stabilizer Ring
  • A Lid

The Dispenser goes in the bottom. The Stabilizer Ring should be positioned a suitable distance from the Dispenser and is only there to support the stack of cups so they don't fall over. Print as many rings as you need. The Lid is basically just there as a dust cover. It is oversized by design and will rest on top of the top-most Stabilizer Ring once the stack has passed through.

This kit is designed to attach to the large Multiboard holes along the left edge of the board. If you want to attach it to the right edge, just mirror the parts in the slicer.

Note: The Dispenser and the Stabilizer Ring will require supports of the underside of the snap; I recommend using grid supports.
