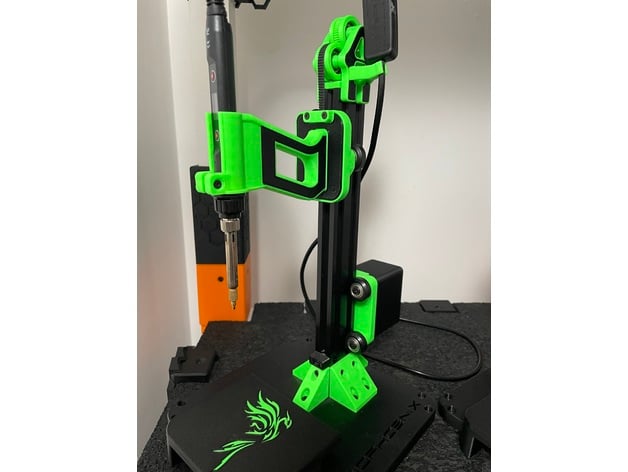

This design is a simplified version of the press I use on a daily basis and can be printed in regular PLA. The top assembly is complicated but it’s worth the assembly effort. When you release the soldering Iron it will rise on its own and come to a gentle stop.
The Base Extension is optional but is adjustable so adds more versatility.
All Parts are in correct orientation for printing.
The Base for the top assembly should be printed with support.
Print the Rear Carriage and Weight with 99% infill so they are as heavy as possible. Choosing 100% infill will significantly increase print time as infill is printed faster than inner and outer walls.
The belt clips are best printed on their sides with support to give the printed part more strength.
ADDITIONAL HARDWARE. M3 countersunk screws 8-10mm M4 Socket Cap screws 8-10mm M4 Washers M4 T-Nuts 3x Standard Bearings 8x22x7, also known as skateboard bearings. Soldering Iron + optional heat set tips. 3D Printer Timing Belt. (Any generic will do, I have used one from an ender 3) 2040 aluminium profile 300mm V Slot Wheels Blue Threadlock (optional)
After assembly adjust screws in front and rear carriage wheels to dial in the rate of return.
Print the top part of the base extension as well as the extension locators and carriage stops in 95A TPU for best results.
Any questions feel free to drop me a message.
Happy Printing!
I’m Putting together a build tutorial on YouTube shortly. Copy the link below to view a 3D Model of the original version to help with assembly.
https://collaborate.shapr3d.com/v/UkNmziB2Q-Z3G-jSszYVb *note, above link will not work on many phones. PC or iPad should be fine.
