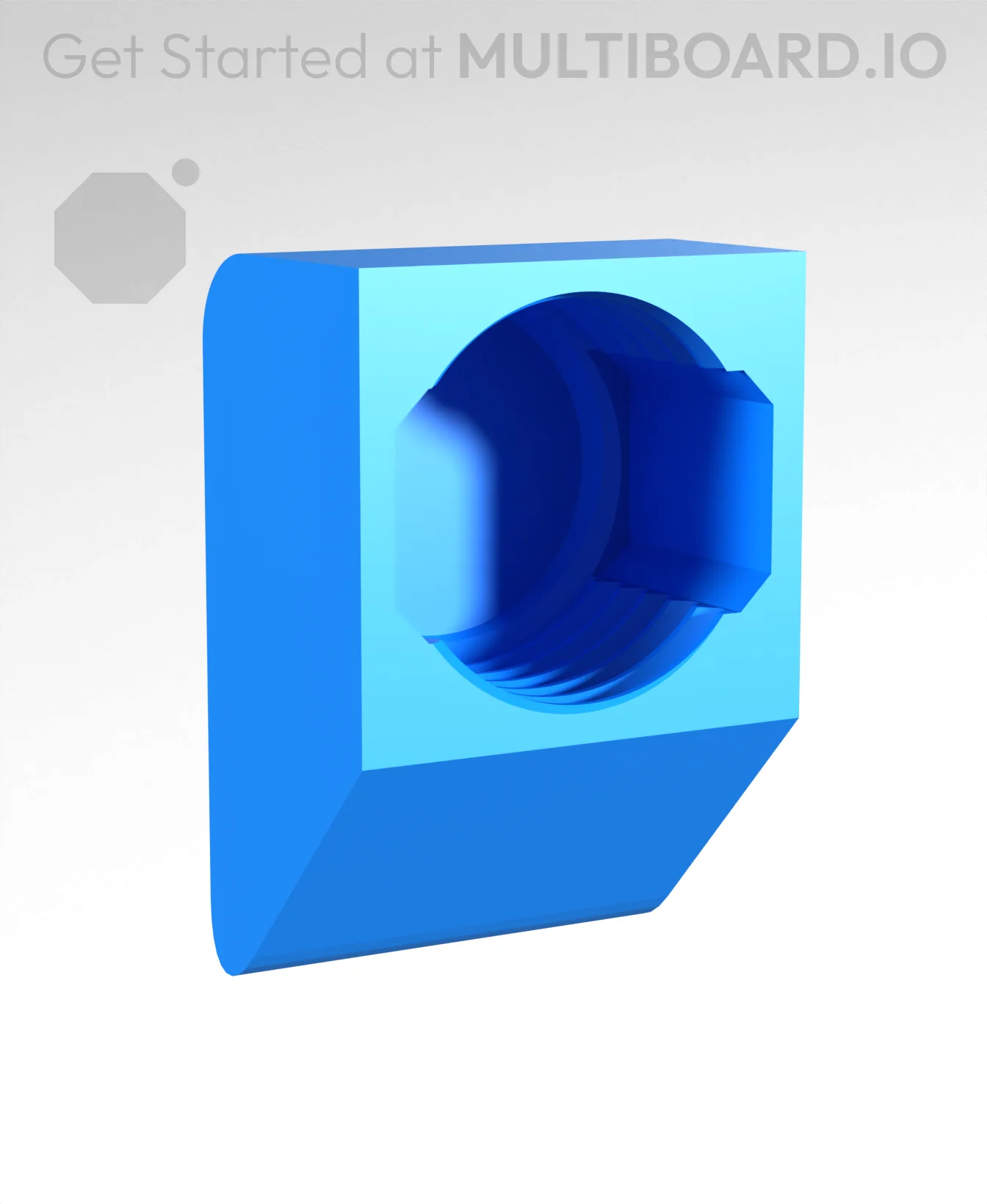

“Screw-On Cleats” allow you to mount your Multiboard on a cleat so you can easily remove, reorganize, or transport it.

To set it up, screw a 20 mm Big Thread Shank Bolt into your Tile, then screw the remaining thread into your “screw-on cleat”, and finally place it on your cleat wall.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
