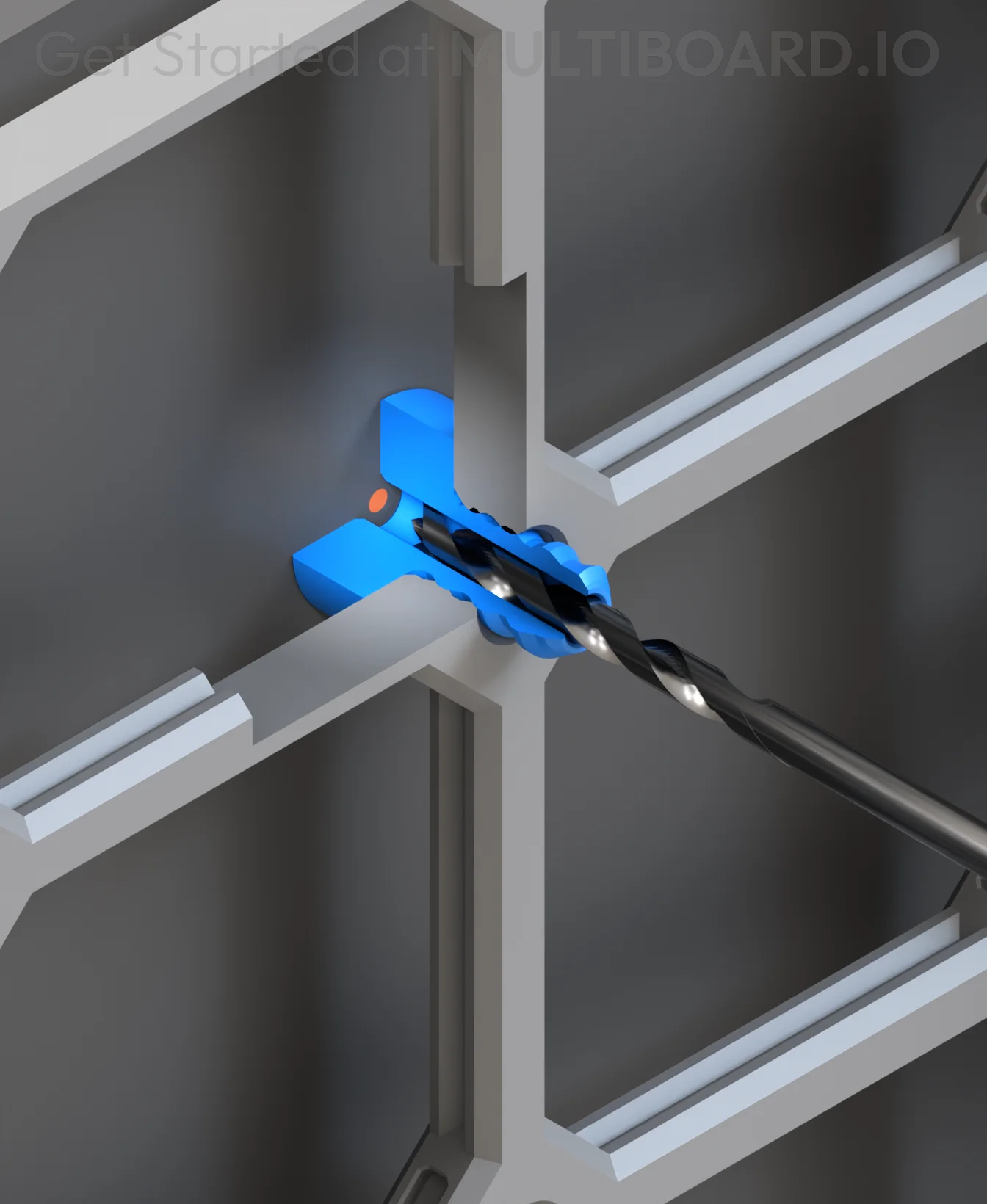

Use this tool to mark holes on your wall. It’s marks the perfect middle of a small thread hole using a 3mm drill bit. These are NOT made to actually drill the hole with, only marking.

This tool is 6.25mm offset so you can align your new Plate next to a Plate that’s already mounted offset.

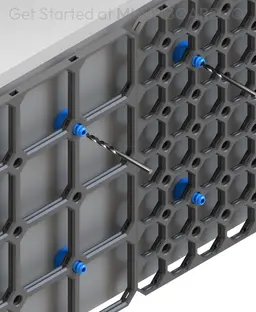

To use, simply screw 4 of them into the small thread holes on the back of a Plate, place your plate on the wall, then mark the holes using a 3mm drill bit. You might have to slightly work it to drill away the clearance.

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
